1.【High efficiency】Production speed: Max. About 25m/min. You can get 12000m per shift one day(8 hours) . 2.【Long Life Machine 】Buyer can use Zhongyuan cold roll forming machine at least 15 years. 3.【Excellent Services】Technician can be sent to your factory to install the machine and train your workers. Engineers are able to service overseas.We supply lifetime
Technical Parameters of line roll forming machine:
Suitable material
PPGI coil
Forming speed
Max. About 25m/min. (excluding the cutting time)
Power Requirement
Main motor power: 7.5Kw
Hydraulic station power: 2.2Kw
Suitable coil thickness
0.3 mm -0.8mm
Suitable coil width
408-1200mm
Suitable power
235Mpa
Encoder
Nemicon (Japan)
Controlling system
Mitsubishi PLC and transducer (Japan)
Total weight of machine
6360KGS
Machine's size
6.0*2.25*1.7M
Shipping
1*40GP container can load one machine
Machine components of line forming machine:
Manual decoiler
1 set（Capacity: 5 tons)
Film Covering Device
1 set
Bending Grooving Roller
1 set
Roll-Forming M/C
1 set
Hydraulic Cutting
1 set
Hydraulic station
1 set
PLC Control System
1 pc
Product Rack (un-powered)
1 set (two pieces, total length is 3 meters)
Tool Box
1 piece
Line working processingdisplay
Decoiling the sheet→ Guiding sheet →Measure length and cutting the sheet → Roll forming→ Product to the run out table
DESCRIPTION
1.Details for Film Covering Device
2.Details for Bend Grooving Roller
1) It is composed of bend grooving roller, it is used to press groove in the bottom of material.
2) It can bring up when making flat sheet.

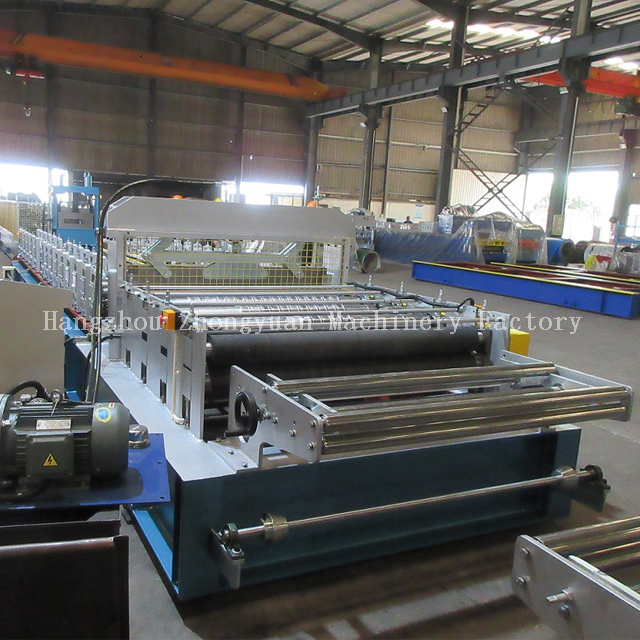

3.Details for Roll-Forming M/C
1) The main frame of machine is column type structure to ensure machine adjustable.
2) Roller Material is high grade No.45 forged steel, with digital-controlled procession.
3) Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product.
4) The rollers are plated with hard chrome with thickness of 0.05mm on the surface after being machined by the exact machine tool. So that ensure long life of forming rollers.
5) Shaft diameter is 55mm.
6) Quantity of forming rollers : About 13 stations
7) Machine is adjustable to suit for different material width from 390-1200mm width(Maximum 1210mm)One side is fixed, the other side is movable.
8) Move the hand wheel to change the machine to do different width material manually, there is digital display device to show how many width is moved for the machine.
9) Chain and gear move the line, motor drives. All working actions are controlled by PLC electric cabinet automatically.
10) Suitable power voltage:380V/50HZ/3Phase
11) Line working speed (Forming speed):about 25m/min (without cut time)
12) Main machine motor power: about 7.5KW(Depend on final design)
13) Total weight : about 8400kg(Depends on final design)
14) Size of forming about 8.0mX1.8mx1.8m (Length x Width x Height)
APPLICATION
Product application of line machine
In order to satisfy various customer requirements, we design and manufacture line roll forming machine in different specs, models and configurations.
Line forming machine Application Example
PACKAGING
Packaging Details of line machine
1. One *40GP container for loading one set of line roll forming machine with mechanical decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3.Spare parts and some small parts packed in plastic tooling box;
4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping.
Delivery Time
Machine ready within 100 days after getting 30% deposit and confirming contract details from buyer and sellers.
