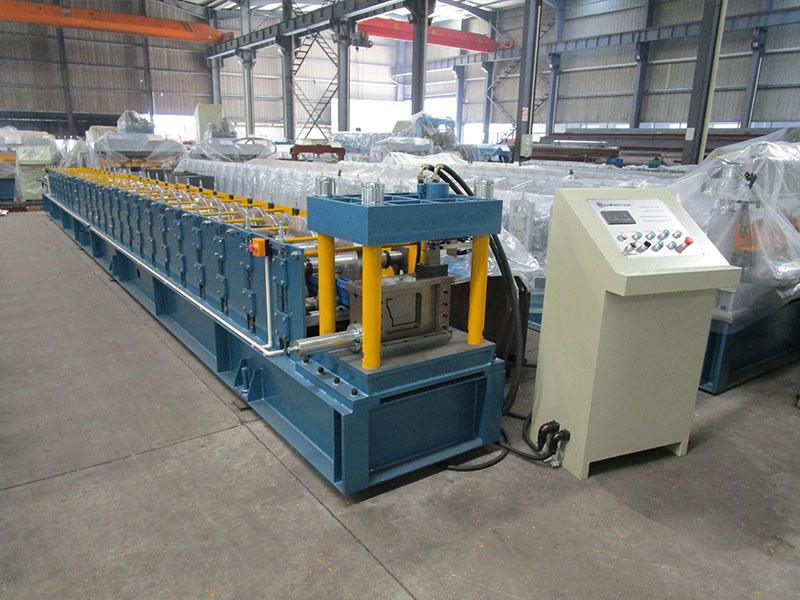

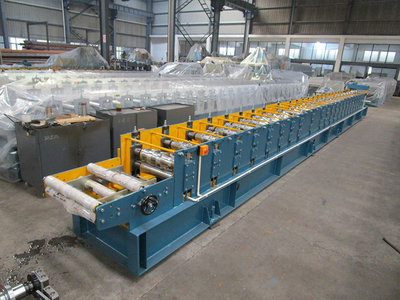

Gutter Roll Forming Machine

Zhongyuan gutter roll forming machine is specifically designed for the continuous forming of metal rain gutter profiles, including half-round, k-style gutters, and custom drainage profiles. Its precision-engineered roller dies and stable forming structure ensure smooth profile shaping, uniform thickness, and consistent dimensions throughout the production process. The machine supports efficient, high-speed production with reliable cutting accuracy, making it ideal for roofing systems, industrial buildings, and architectural drainage applications.

To meet various customer requirements, we design and manufacture gutter roll forming machines in different specifications, models, and configurations.

Main Technical Parameters

Machine Components & Specifications
No.	Components	Qty.	Key Parameters
1	Manual Decoiler / Electric Decoiler	1 Set	Capacity : 5 tons
			Suitable Coil ID : 508 mm
			Suitable Coil Max OD :1000 mm
2	Roll-Forming System	1 Set	Number of forming stands: approx. 25(Subject to the final design)
			Main machine motor power: about 4 kW(Subject to the final design)
			Forming Speed: about 20 m/min (without cut time)
3	Hydraulic Stop-and-Cut Unit	1 Set	Cutting Blade material: Cr12MoV tool steel
4	Hydraulic Power Unit	1 Set	Power:1 x 2.2 kW
5	PLC Control System	1 Set	Delta (Taiwan) / Mitsubishi(Japan)
6	Run-Out Table(Non-powered)	2 Pcs	Total is 3 meters
7	weight	about 6500 kg
8	Size	11.4L0.85W1.4H(Subject to the final design)
Coil Technical Parameters
No.	Parameters	Details
1	Raw Material	PPGI steel coils
2	Material Thickness	0.25 mm-0.6 mm
3	Coil Width	386 mm(Subject to the final design)
4	Yield Strength	235 Mpa

Machine Components

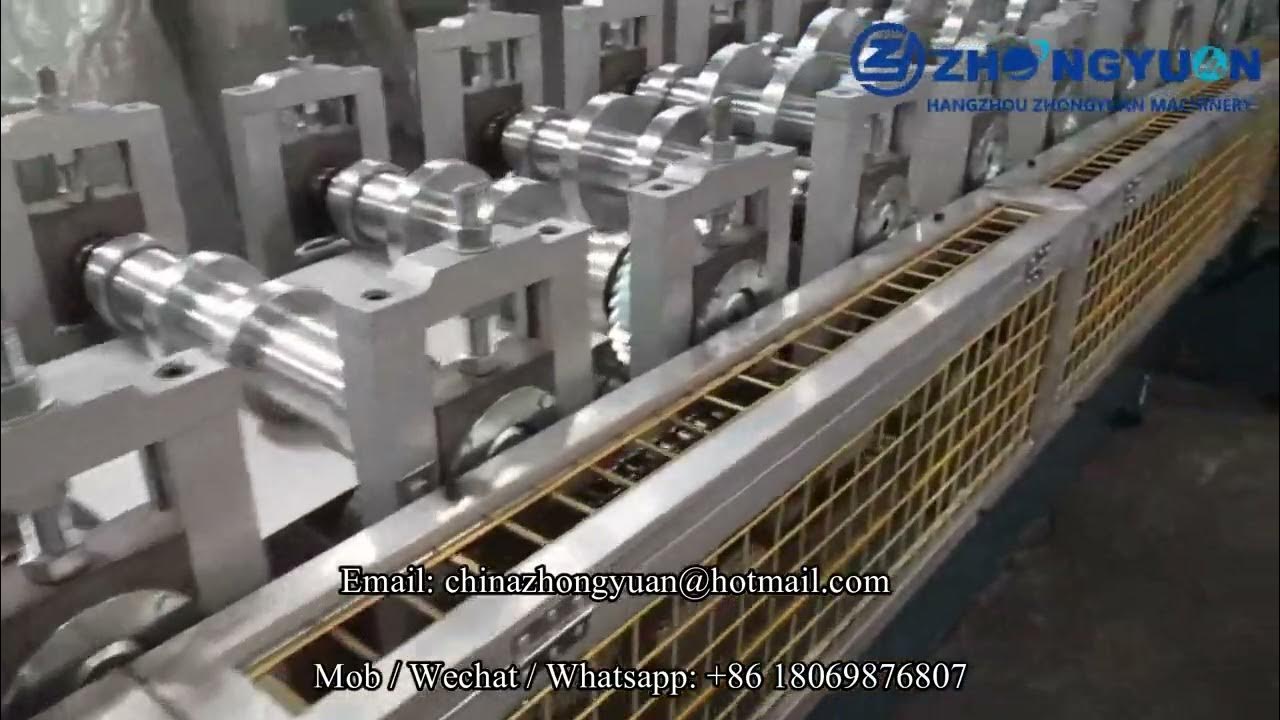

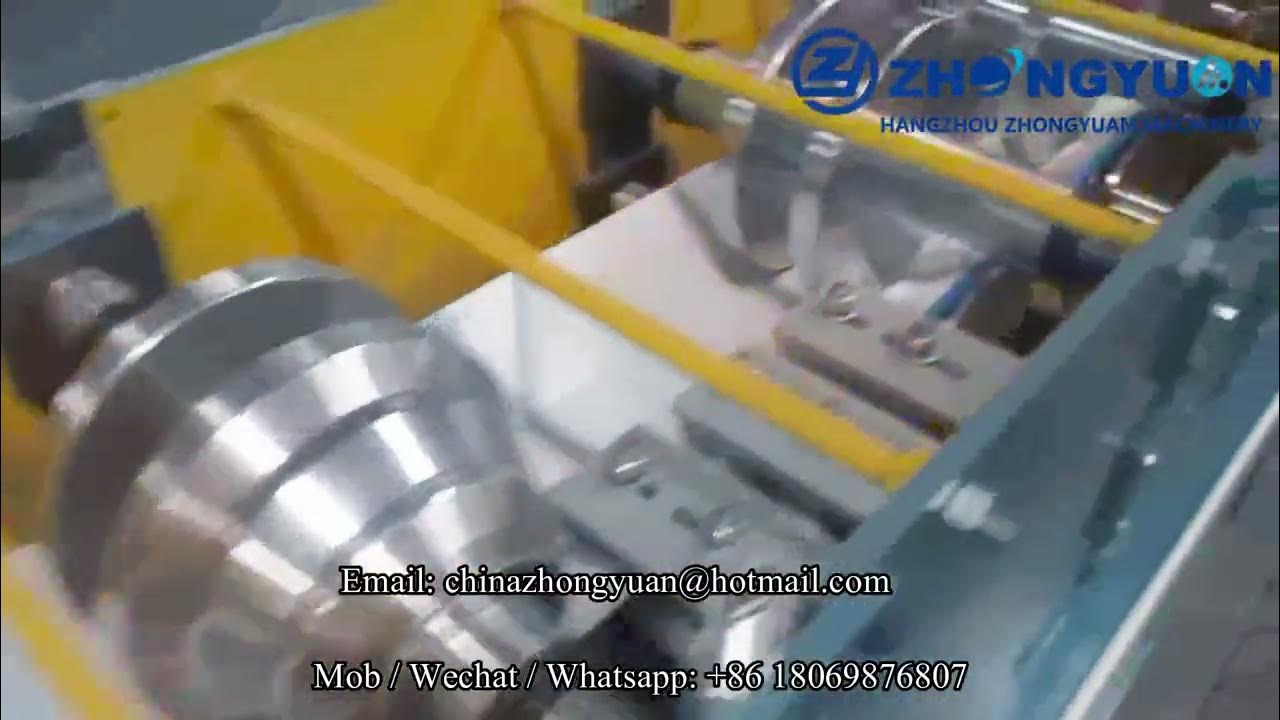

Roll Forming System

Roller material is high grade No.45 forged steel plated with hard chrome, by digital- controlled procession.

High Accuracy

1. Shaft material is No.45 steel with a diameter of 55mm, strong and durable. Shafts for rollers are tooled by a grinding machine 2 times. Ensure product accuracy.
2. Finished shafts from the grinding machine, rollers on these shafts can ensure final sheet accuracy.

High Efficiency

Production speed: 20/min.
9600m per shift, one day (8 hours).

Automatic & Easy Operation

Machine long life: Roller material is high-grade No.45 forged steel, plated with hard chrome, processed by digital-controlled processing.
Mitsubishi PLC with touch screen. Friendly man-machine interaction. The system is simple to learn and easy to operate.
Automatic Operation: once you setthe quantity and the length of the product, the machine will produce the product automatically.

Control Quality Well

Zhongyuan factory is an "All-in-house source" from raw material to the final high-precision forming machine. All are done in our factory. Quality and delivery time can be controlled here.

Simple to install and easy to maintain.

You only need to connect some tubes and wires in your factory. The video and manual will show you how to do.
Our experienced technicians can supply overseas service.

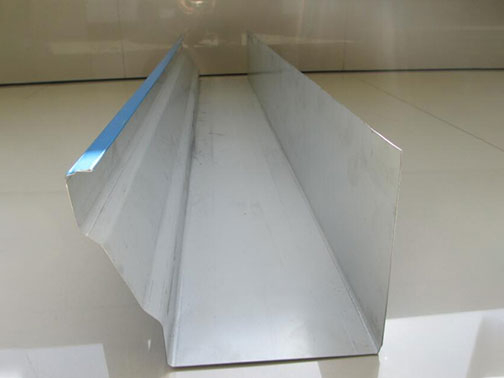

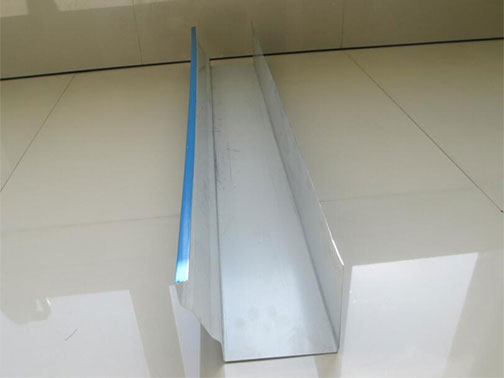

Typical Profiles

Packaging Details

1. One *40GP container for loading one set of machines;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in a plastic tooling box;
4 . All Components Fixed by a steel wire to the container. Suitable for long-term sea shipping.

Delivery Time

Machine is ready within 70 days after getting 30% deposit and confirming contract details from buyer and sellers.

Application of Gutter Roll Forming Machine

Clients Visit

Every year we participate in exhibitions in different countries and regions to make friends with new partners.
We feel pleased that more and more people have appreciated our products.
