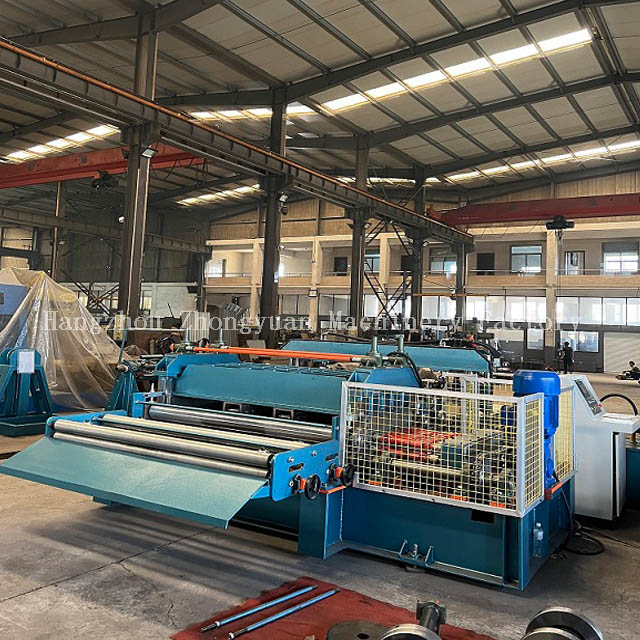

Zhongyuan 3.0*1830 cut to length with flying cutting

3.0*1830 cut to length with flying cutting:
Zhongyuan Machinery Factory is much experienced manufacturer of metal forming machinery with ISO quality system
20 years history in Metal roll forming machine industry
25 years experienced engineers
Focus on machine quality with reasonable price
59 sets processing equipment, including in 12 sets CNC tooling machines.
Experienced technician can be sent to install machines abroad
100+ sets of machines exported each year
65+ countries using Zhongyuan Machines
High-efficiency, High-speed forming, and Lower Price
  • Zhongyuan 3.0*1830 cut to length Machine with flying cutting

  • Zhongyuan

  • 8455221000

Availability:

TECHNICAL SPECIFICATIONS

Brief introduction of 3.0*1830 cutting Machine with ISO Quality System:

Technical Parameters of 3.0*1830 cut to length:

Suitable material

cold rolled steel

Forming speed

20m/min

Power Requirement

Main motor power: 11Kw

Hydraulic station power: 5.5Kw

Suitable coil thickness

 0.5-3.0mm

Suitable coil width

 900 mm -1830 mm

Suitable power

440V/3ph/60Hz

Shearing blade material

Cr12MoV

Controlling system

Mitsubishi PLC & converter

Total weight of machine

9555KGS

Machine's size

6.9*3.7*1.6m

Shipping1x40GP container can load one machine


DESCRIPTION

1.Leveling machine


15 pieces leveling rollers. 7 pieces is assembled on the upper, and 8 pieces assembled on the lower. They are supported by short supporting rollers.


The worm structure driven by motor adjust the distance between up and lower leveling rollers, there is indicating gauge.


All leveling rollers are driven by AC motor 、reducer through gear wheel box and gimbal, transducer adjusting speed.


The surfaces of the rollers and the backup rollers are heat treated for greater endurance and surface grinded for better surface quality of the product.


leveling decive   transmission system


2.Lateral fly-cutting device


Function: shear length set material. No stop cutting.


Structure:driven by hydraulic system.


Cut from up position to low position.


Adjust the cutting distance through adjusting work table’s position.


Shearing blade material: Cr12MoV

flying cutting device


APPLICATION

Product application of cut to length supplier


In order to satisfy various customer requirements, we design and manufacture China cut to length in different specs, models and configurations.


Cut to length line Application Example


PACKAGING

Packaging Details of cut to length line


1. One *40GP container for loading one set of cut to length with mechanical decoiler;

2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;

3.Spare parts and some small parts packed in plastic tooling box;

4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping.


Delivery Time

Machine ready within 100 days after getting 30% deposit and confirming contract details from buyer and sellers.
