Brief introduction of overlapping machine:

Technical Parameters of overlapping roll making machine:

Machine components of overlapping making machine:

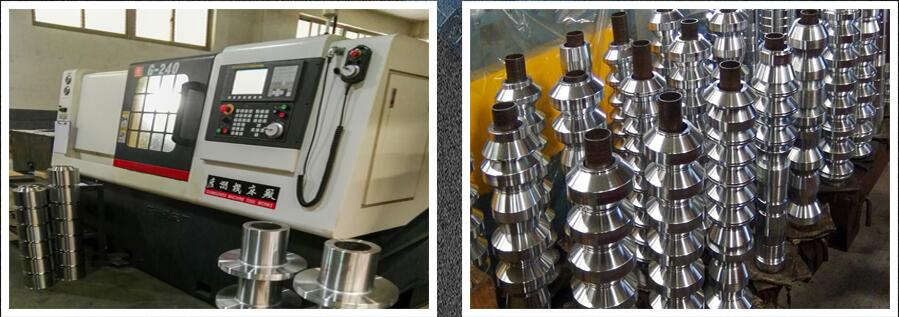

1.Hard Forming rollers with high precision

Each forming roller use CNC machine to polish and machining into designed rollers shape,it can improve rollers accuracy.And planted 0.03-0.05mm hard chrome to make sure machine running more than 15years+ for you.

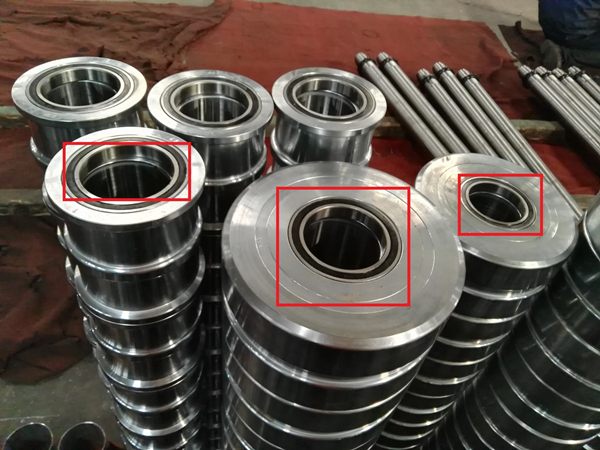

2.Design bearings inside forming rollers.

Design bearing inside the rollers to make machine run with less loading so that rollers not easy to damage.

Ensure the same speed between the rollers, no speed difference between rollers, improve the forming accuracy.

Bearings are helping to prolong machine life.

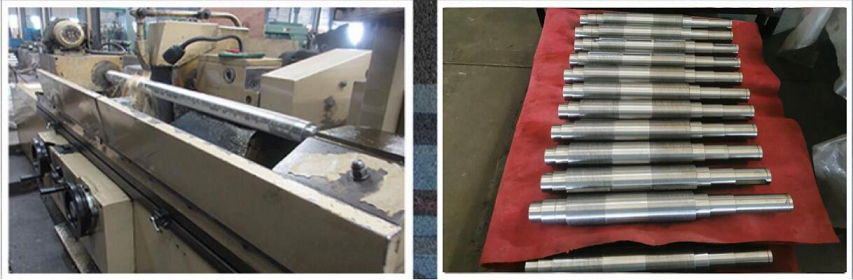

3.High Accuracy Shaft

Solid shafts dia.55mm.

Solid steel shafts are being tooling twice with grinding machine to ensure final precision. Guarantee buyer get high accuracy sheet from Zhongyuan made machine.

4.40mm thickness wall panel make sure machine running more stable

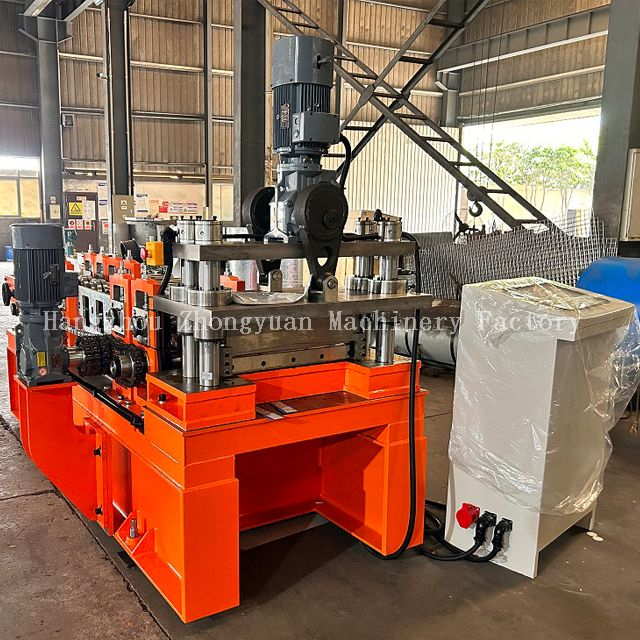

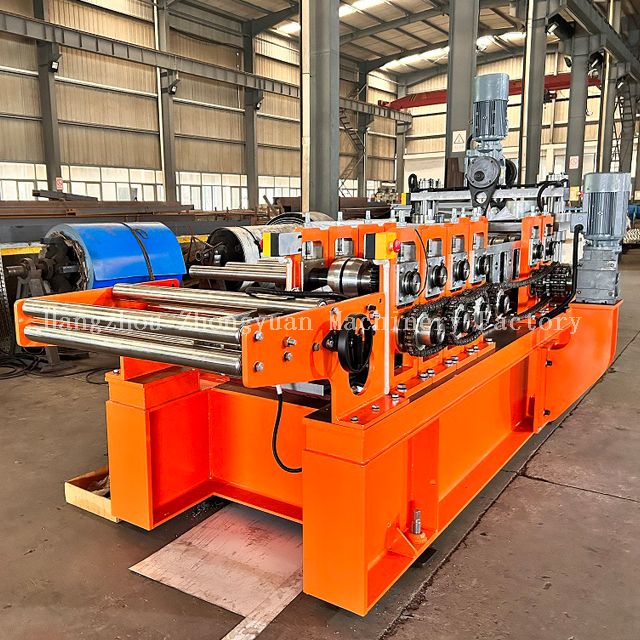

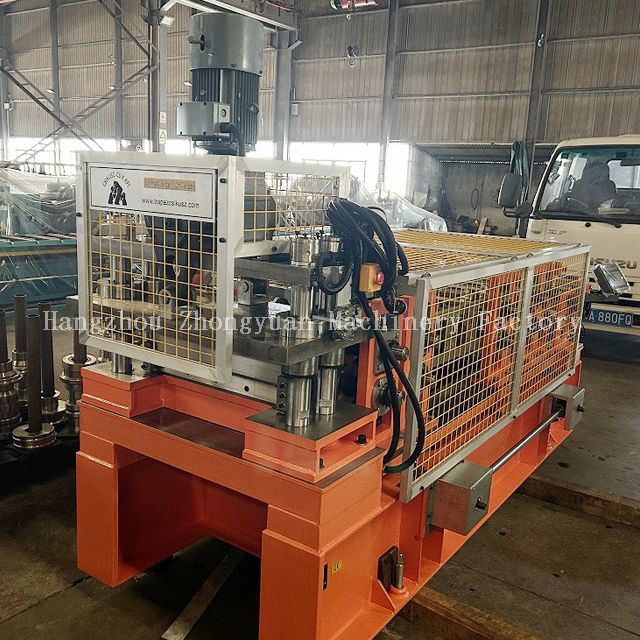

Product application of overlapping roll forming machine

In order to satisfy various customer requirements, we design and manufacture overlapping forming machine in different specs, models and configurations.

Overlapping machine Application Example

Packaging Details of overlapping roll making machine

1. One *20GP container for loading one set of overlapping making machine;

2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;

3.Spare parts and some small parts packed in plastic tooling box;

4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping.

Delivery Time

Machine ready within 100 days after getting 30% deposit and confirming contract details from buyer and sellers.
