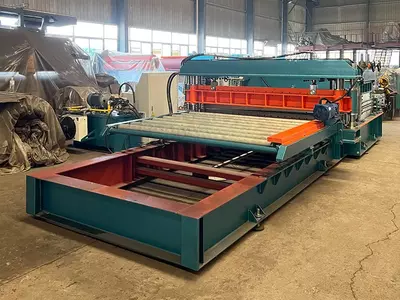

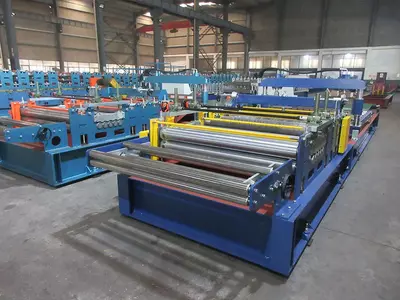

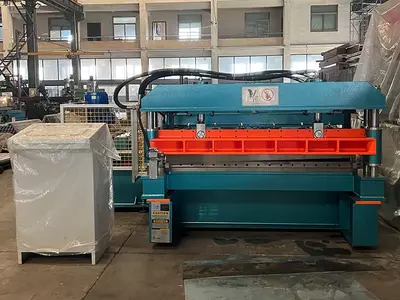

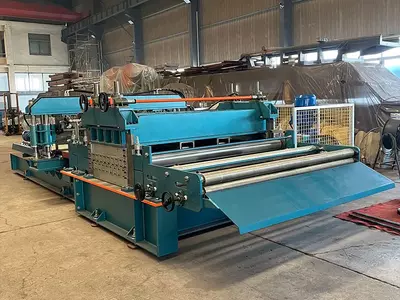

Slitting & Cut to Length Line

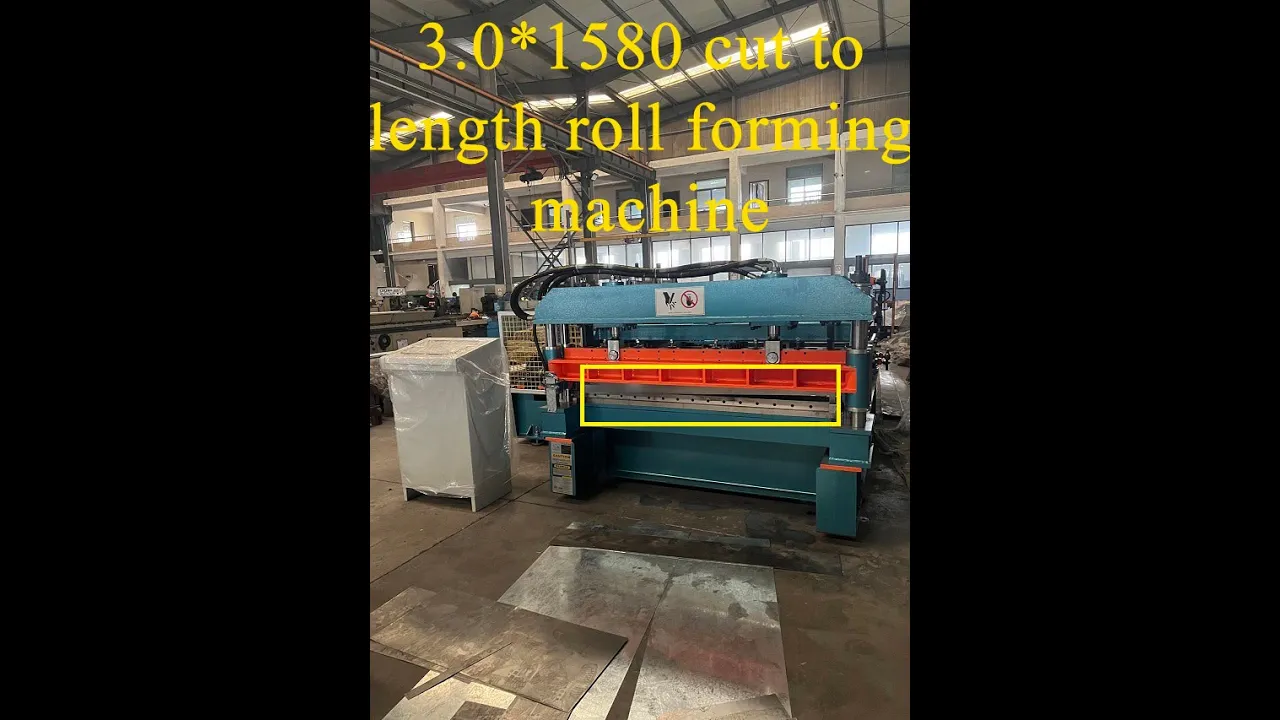

We can produce 1.0-4.5mm*1250/1270/1580/1830mm cut to length with/without flying cutting.

Machine Components & Specifications
No.	Components	Qty.	Key Parameters
1	Manual Decoiler / Electric Decoiler	1 Set	Capacity: 5 tons
			Suitable Coil ID:508 mm
			Suitable Coil Max OD:1250 mm
2	Guiding Unit	1 Set
3	Roll-Forming System	1 Set	Number of forming stands: approx. 20(Subject to the final design)
			Motor Power: 4 kW / 11 kW
			Working Speed:Approx.5-6 m/min (including pressing and cutting time)

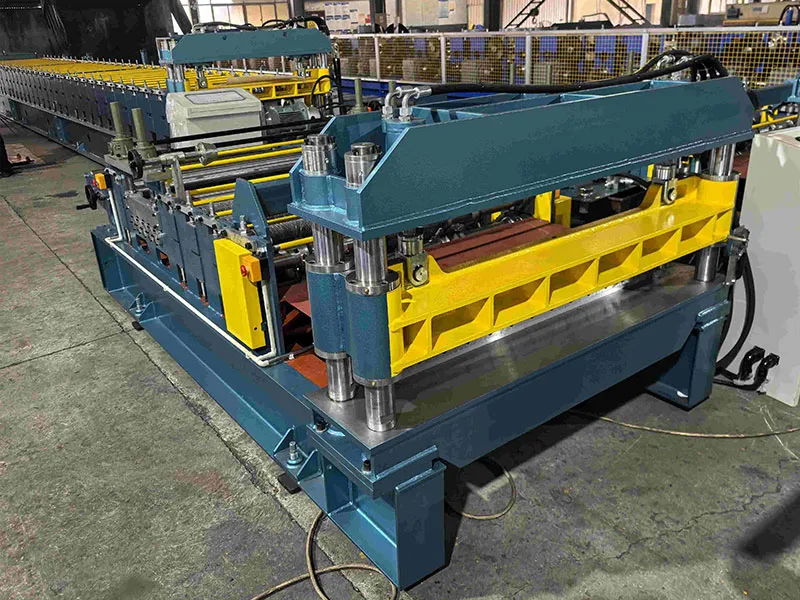

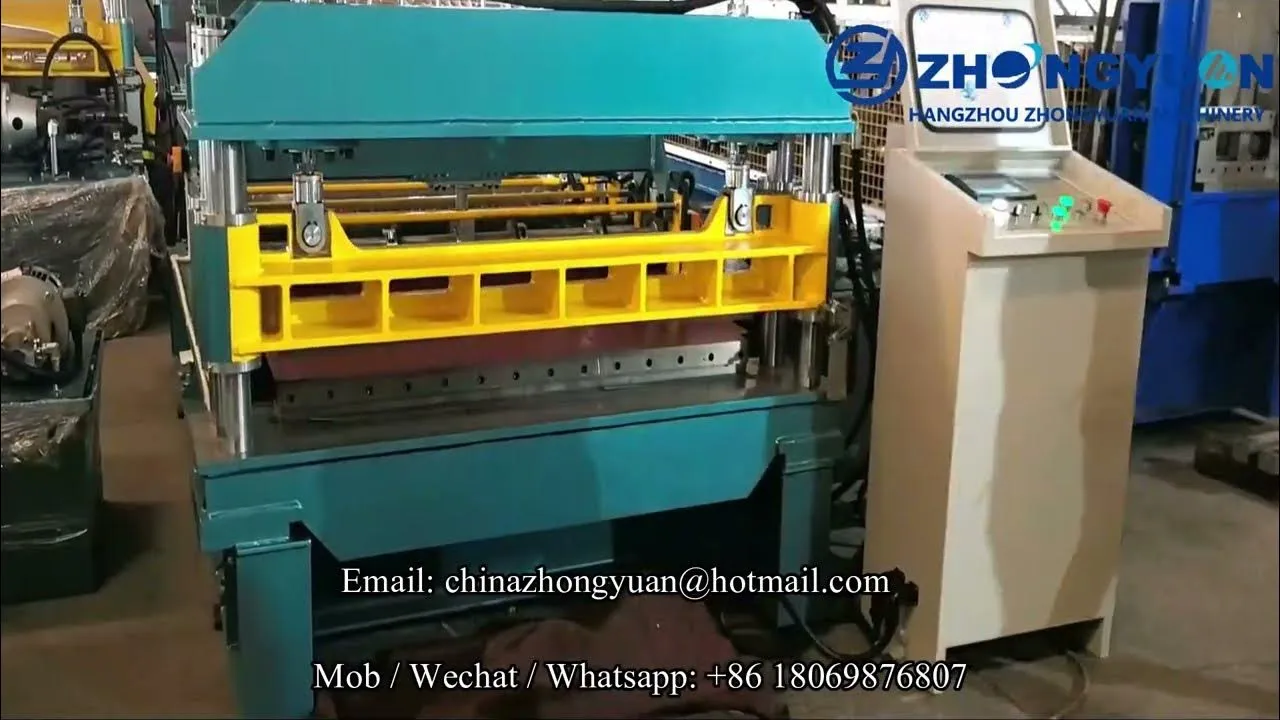

5	Hydraulic Stop-and-Cut Unit	1 Set	Cutting Blade material: Cr12 MoV tool steel
6	Hydraulic Power Unit	1 Set	Power : 2.2 kW / 5.5kW
7	Flying power	1 Set	Power:1.1 kW
8	Servo motor for cutting	1 Set	4kW / 15kW
9	PLC Control System	1 Set	Delta (Taiwan) / Mitsubishi(Japan)
10	Run-Out Table(Non-powered)	2 Pcs	Total is 3 meters
11	weight	Subject to the final design
Coil Technical Parameters
No.	Parameters	Details
1	Raw Material	cold rolled steel
2	Material Thickness	0.2-1.0 mm / 0.5-3.0 mm / 0.2-0.7 mm
3	Coil Width	600-1250 mm / 900-1830 mm / 800-1250 mm
4	Yield Strength	235MPa/235-345Mpa
