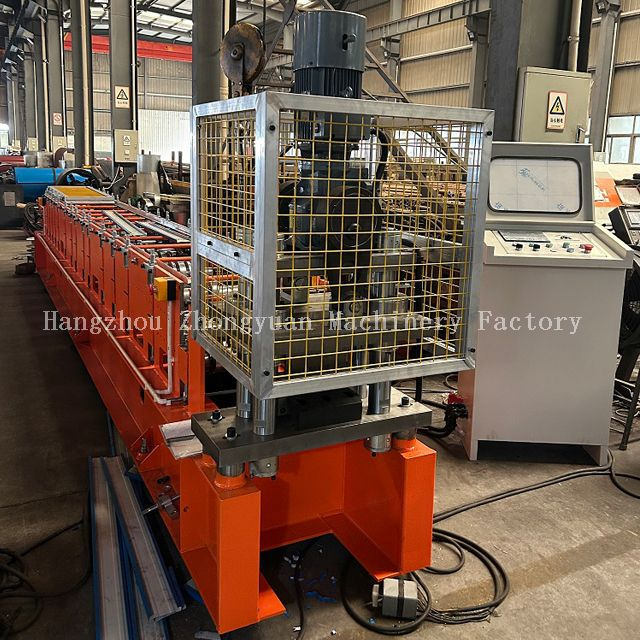

Hungary C Fence Sheet Roll Forming Machine for New Design
1.【High efficiency】Production speed: Max. About 25-30m/min. You can get 12000m per shift one day(8 hours) . 2.【Long Life Machine 】Buyer can use Zhongyuan cold roll forming machine at least 15 years. 3.【Excellent Services】Technician can be sent to your factory to install the machine and train your workers. Engineers are able to service overseas.We supply lifetime
Brief introduction of metal fence roll forming machine:
Technical Parameters of metal fence roll forming machine:
Suitable material
pre-painted steel coils
Forming speed
about 25-30 m/min (without press and cut time）
Power Requirement
Main motor power: 4Kw
Suitable coil thickness
0.3mm -0.7mm
Suitable coil width
155-156mm
Suitable power
235Mpa
Encoder
Nemicon (Japan)
Controlling system
Mitsubishi PLC
Total weight of machine
3355KGS
Machine's size
6.81mL*1.6mW*2.1mH
Shipping
1*20GP container can load one machine
Machine components of fence roll forming machine supplier:
Electric drive decoiler
1 set（Capacity : 1.5 tons）

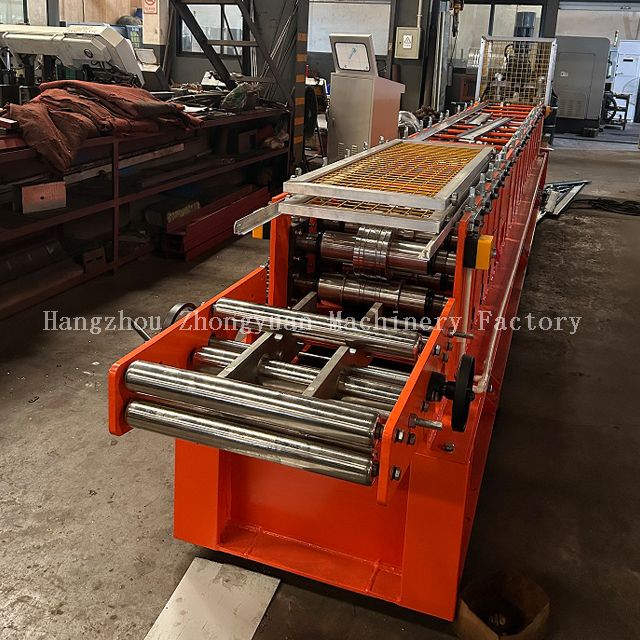

Roll-Forming M/C
1 set
Automatic Cutting
1 set (Motor power
PLC Control System
1 set
C fence working processingdisplay
Decoiling the sheet→Guiding sheet →Roll forming→ Measure length and cutting the sheet
DESCRIPTION

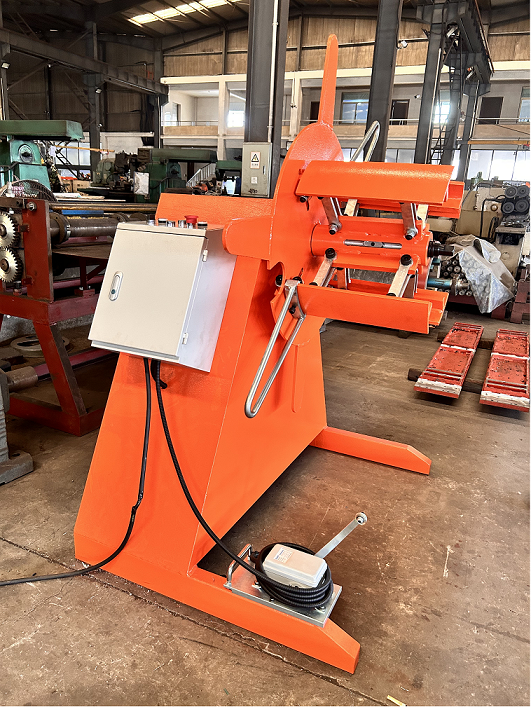

1.Electric motor drive decoiler
1) Motor-power decoiler; max. Capacity: 1500kg
2) Suit for coil inner-diameter: 508mm, suit for coil max outer diameter: 1000mm
2.Motor Automatic Cutting
1) Adopts post cutting, Stop to cut;
2) The cutting blade material is Cr12MOV. with quenched treatment.
3) Cutting frame has been heat treatment to avoid final product deformation. cutting length tolerance ±2mm.
5) The power of cutting is provided by motor..
6) The final product can be cut as per set length in PLC controller, and the length is automatically measured by encoder. When final product reaches the set length, machine will stop to cut the product automatically. Finish this action, machine will run again continuously.
3.PLC Control System
1) This system uses Mitsubishi PLC to control the all working actions. Production quantity and each piece length will be automatically measured. It is convenient to control the roll forming machine.
2) Mitsubishi converter adjusts speed technology, realize the automatic production.
3) Touch screen is input and canceled the working data.
4) Friendly man-machine interface system can be set batches to the workpiece, length, quantity, etc.
5) Encoder count, having function of count and measuring length.
6) Suitable power voltage:380V/50Hz, 3 phase (can be designed according to buyer’s requirement)
(7) Hungarian Menu (translation come from buyer)
APPLICATION
Product application of fence sheet roll forming machine
In order to satisfy various customer requirements, we design and manufacture fence rollformer in different specs, models and configurations.
Roll forming machine for fence Application Example
PACKAGING
Packaging Details of aluminum steel fence roll forming machine
1. One *20GP container for loading one set of fence roll forming machine with electric decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3.Spare parts and some small parts packed in plastic tooling box;
4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping.
Delivery Time
Machine ready within 100 days after getting 30% deposit and confirming contract details from buyer and sellers.
