Door Panel Roll Forming Machine
Home » All Roll Forming Machines » Door Panel Roll Forming Machine

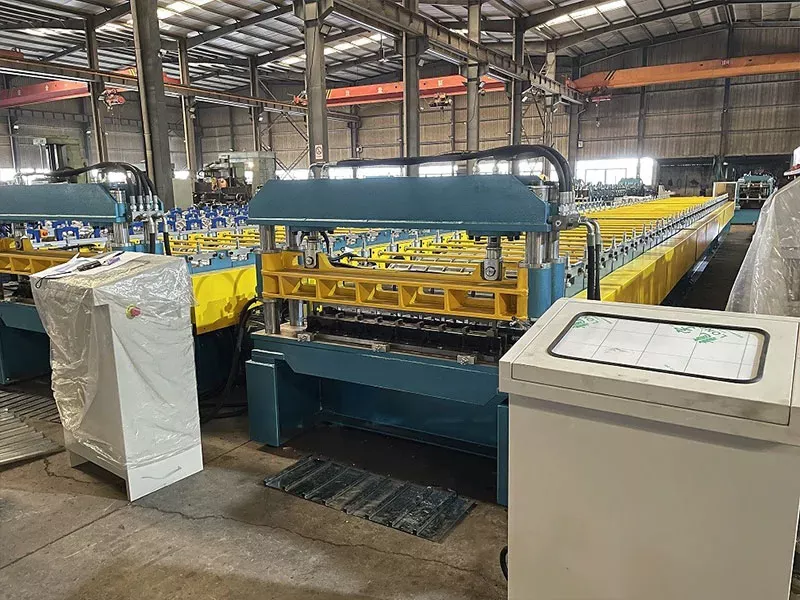

Door Panel Roll Forming Machine

Door-Panel-Roll-Forming-Machine
Door-Panel-Roll-Forming-Machine

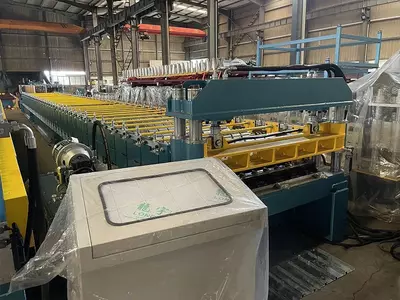

Door-Panel-Roll-Forming-Machine2

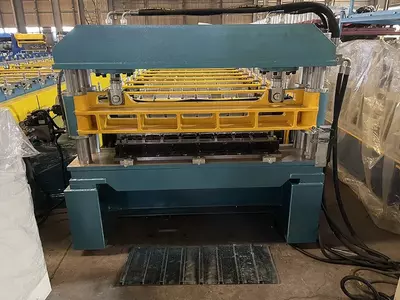

Door-Panel-Roll-Forming-Machine1

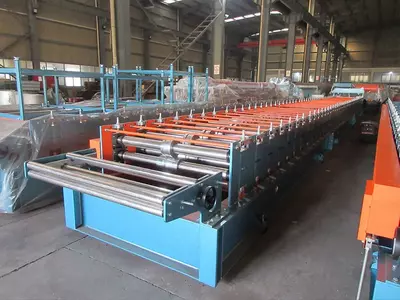

Door-Panel-Roll-Forming-Machine3
Get a Quote

Send us a message and we’ll get back to you shortly.

Zhongyuan door panel roll forming machines support galvanized steel, pre-painted steel, and aluminum coils, and are ideal for producing industrial door panels, warehouse doors, equipment enclosure panels, and other high-strength metal door components. Designed specifically for forming door panels with reinforcing ribs, the machine combines enhanced structural strength with a smooth and uniform surface finish, significantly improving panel rigidity, load-bearing capacity, and resistance to deformation. It helps manufacturers manufacturers to achieve efficient, reliable, and cost-effective door panel production while meeting higher requirements for structural performance and long-term durability.

Main Technical Parameters

Machine Components & Specifications
No. Components Qty. Key Parameters
1 Manual Decoiler / Electric Decoiler 1 Set Capacity : 5 tons
Suitable Coil ID : 508 mm
Suitable Coil Max OD:1000 mm
2 Roll-Forming System 1 Set Number of forming stands: approx. 44(Subject to the final design)
Main machine motor power: 11* 2 kW(Subject to the final design)
Forming Speed: about 20m/min (without cut time)
3 Hydraulic Stop-and-Cut Unit 1 Set Cutting Blade material: Cr12MoV tool steel
4 Hydraulic Power Unit 1 Set Power:：5.5 kW
5 PLC Control System    1 Set Delta (Taiwan) / Mitsubishi(Japan)
6 Run-Out Table(Non-powered) 2 Pcs Total is 3 meters
7 weight about 22000 kg
8 Size 17.7L*1.7W*1.6H(Subject to the final design)
Coil Technical Parameters
No. Parameters Details
1 Raw Material PPGI steel coils
2 Material Thickness 1 mm
3 Coil Width 1220 mm
4 Yield Strength 235-350 Mpa

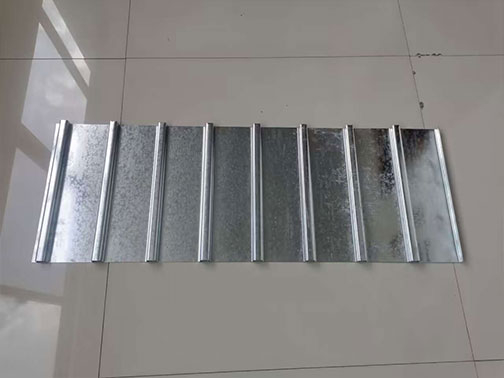

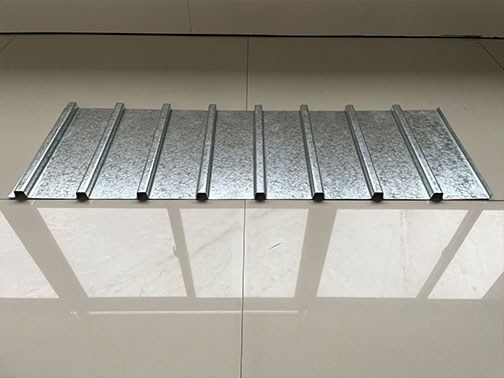

Typical Profiles
