Step Tile Roll Forming Machine

Step Tile Roll Forming Machine
Home » All Roll Forming Machines » Metal Roof Roll Forming Machine & Wall Panel Roll Forming Machine » Step Tile Roll Forming Machine
The step tile roll forming machine adopts a combined roll forming and stamping process to produce step-shaped roofing tiles. This process creates a distinctive stepped profile on the tile surface, effectively replicating the appearance of traditional ceramic glazed roof tiles.

Zhongyuan step tile roll forming machines support two cutting options: standard straight cutting and special wave-shaped end cutting, allowing flexibility to meet different tile designs and installation requirements. Different models of Zhongyuan step tile roll forming machines are mainly distinguished by the profile design of the finished tiles. For example, some tile profiles feature small wave structures in the middle section, which not only create a different visual style but also provide a certain stiffening effect, improving the overall profile stability.

Multiple Models for Different Tile Profiles

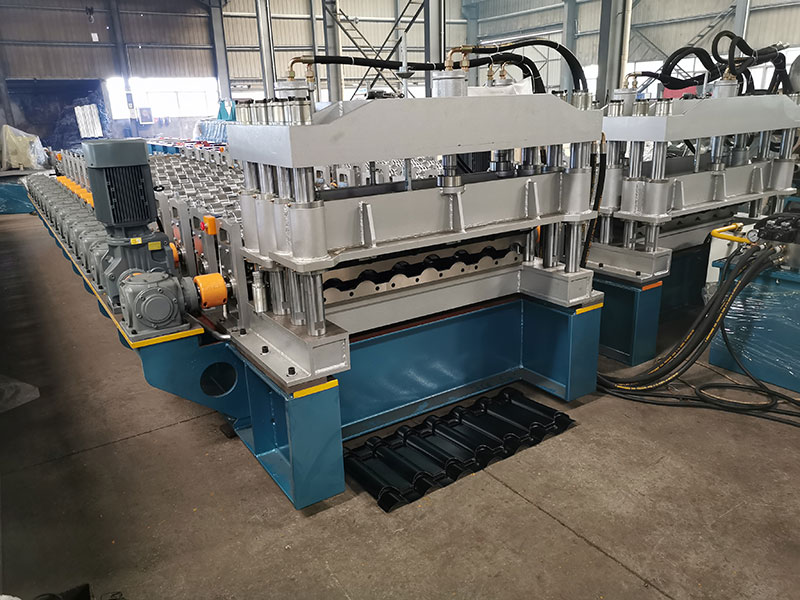

Metrocopo-Tile-Roll-Forming-Machine

Metrocopo Tile Roll Forming Machine

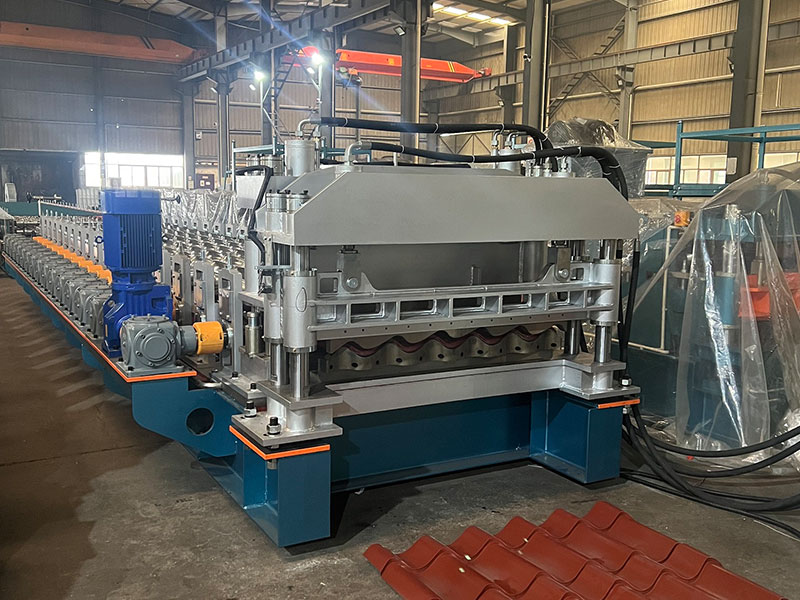

Glazed-Tile-Roll-Forming-Machine

Glazed Tile Roll Forming Machine
Step-Tile-Roll-Forming-Machine

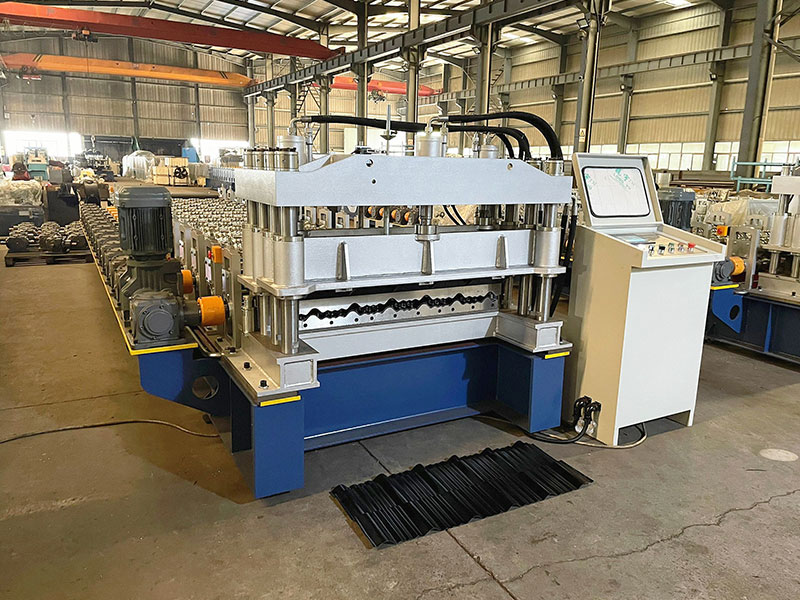

Step Tile Roll Forming Machine

Typical Profiles of Step Tile Roll Forming Machine

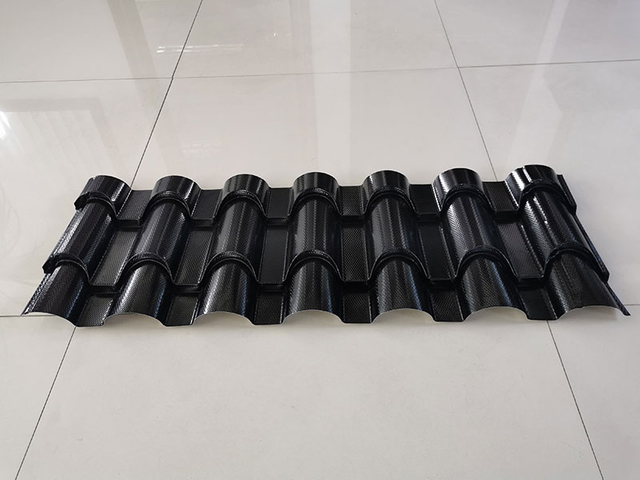

metrocopo-tile-1

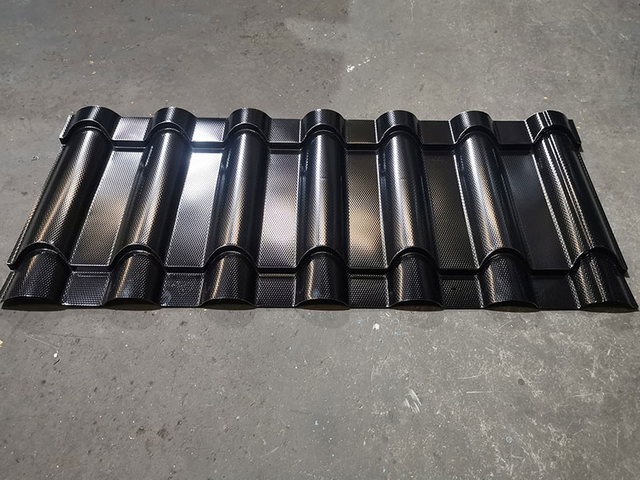

metrocopo-tile-2

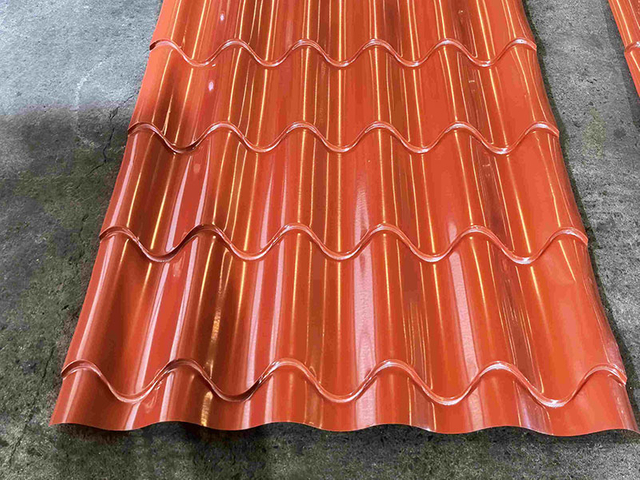

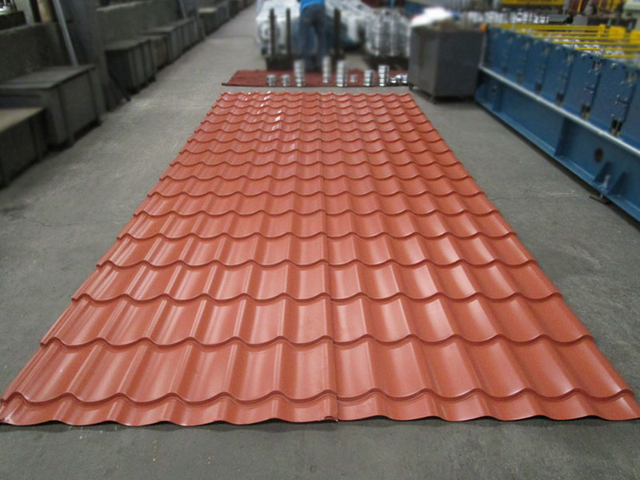

roof-tile-1

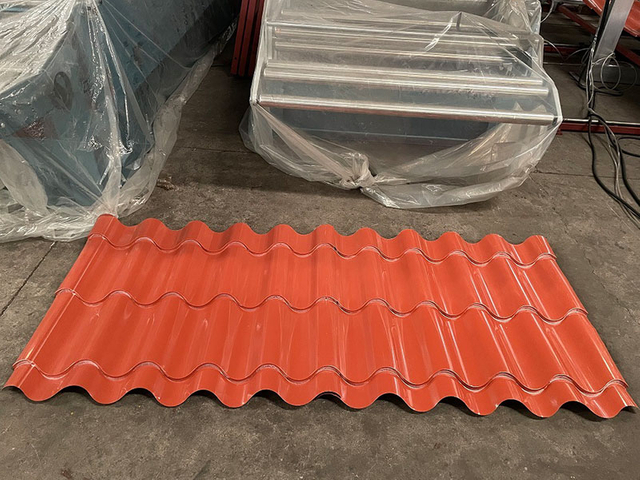

roof-tile-2
roof-tile-3

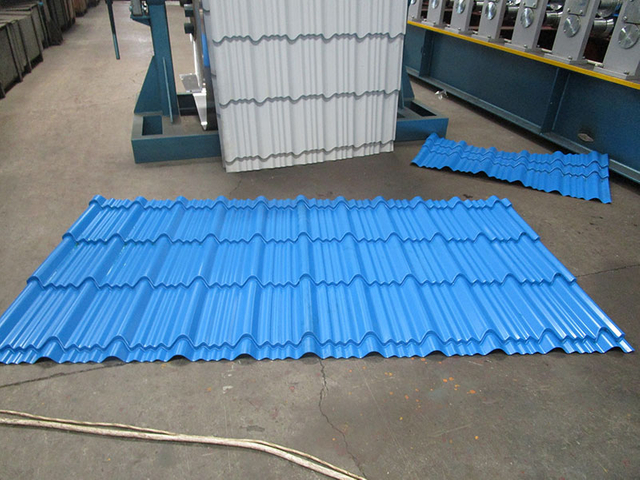

step-tile-1

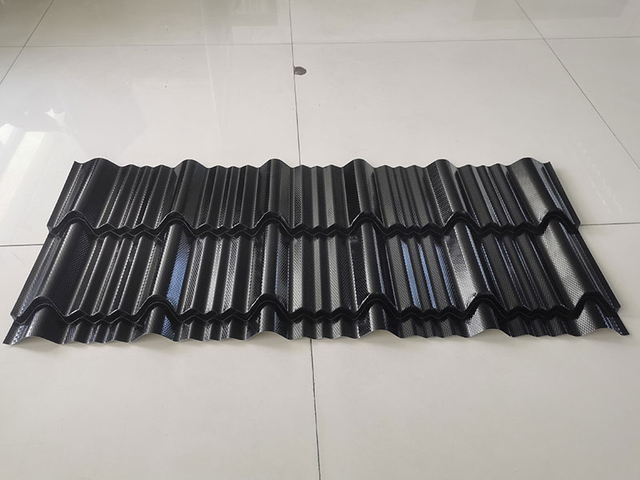

step-tile-2

Step Tile Roll Forming Machine

We have served 760+ clients from various industries, including building,
automotive production, custom-made manufacturing, etc.
 High Efficiency      Long Life Machine      High Precision      Automatic & Easy Operate      Excellent On-site Services

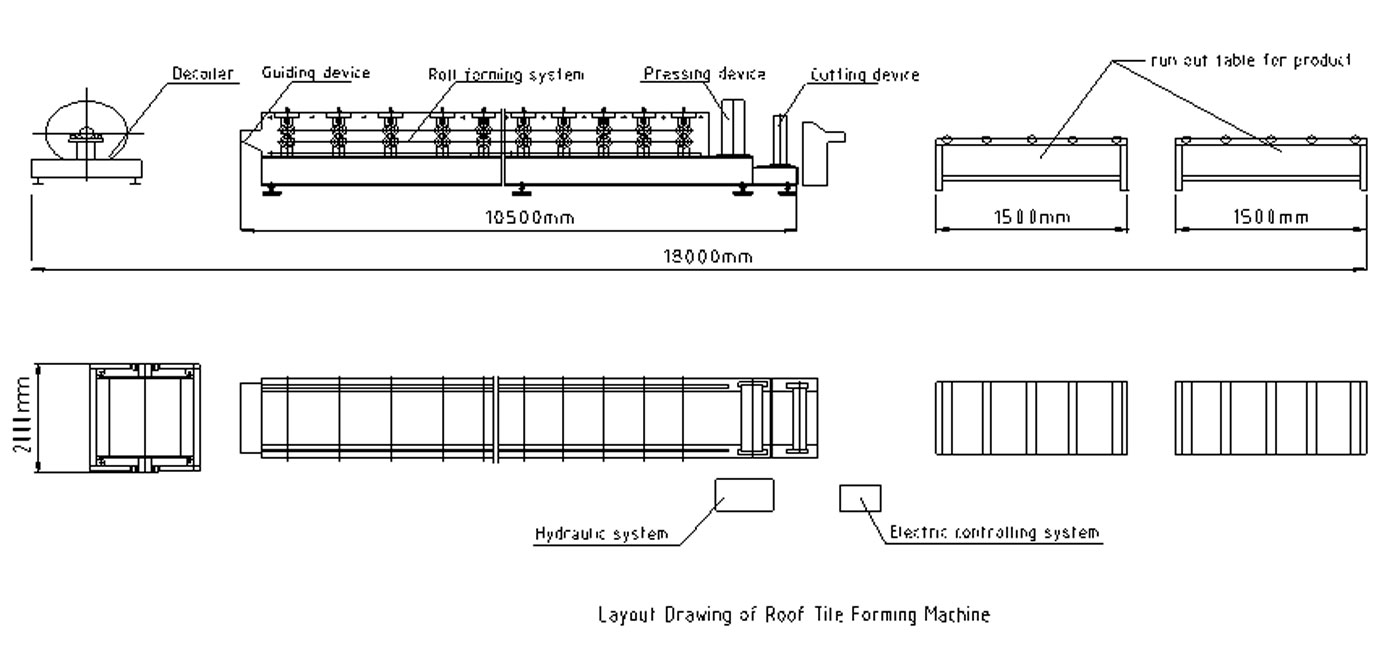

Main Technical Parameters

Main-Technical-Parameters
Machine model Tile Machine Operation way Automatic machine
Certification ISO9001,CE Warranty 36 Months
Customized Customized Advantage More than 10 years of life time
Weight About 9T/10T/11T Material thickness 0.38-0.55mm/0.5-0.6mm/0.32-0.4mm
Forming rollers qty. 15 stations/17 stations/18 stations/21 stations Suiting material Color steel coils /aluminum coils
Main motor 5.5KW Cutting material Cr12 .MOV.
Shafts diameter 72mm Yield strength of material 320Mpa/235Mpa or 34Ksi/235Mpa-340Mpa
Machine frame H400 Wall thickness 40mm
Forming speed About 6m/min. Roller Material 45# Steel, plated chrome
Feeding width or coil width 1200mm/1000mm /1220mm Transportation In Containers, suitable for sea and road transmission.
Size About 8.9*2.05*1.6m/9.5*2.01*1.6m/10.74*1.5*1.73m HS Code 84552210
Hydraulic power 7.5kw Trademark Zhongyuan

Machine Components

 Hydraulic decoiler
1 set（Mechanical or hydraulic decoiler for option）
 Guiding Equipment
1set
Covering film device
1set
Roll Forming Equipment
1set
Pressing equipment
1set
Post-cutting Equipment
1set

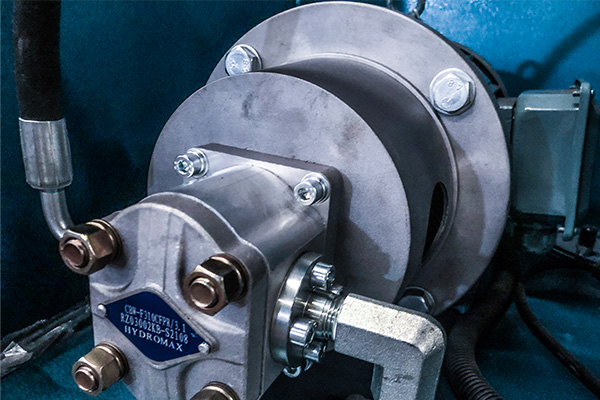

Hydraulic Station
1pc
PLC Control Panel
1 pc
Supporter Table
1 set （two pieces, 1.5m/piece）(stacker for option)
Tool Box
1 pc

Video Showcase

Application of Step Tile Roll Forming Machine

Application16-
Apply in Roofs
Application17
Apply in Roofs
Application18
Apply in Roofs

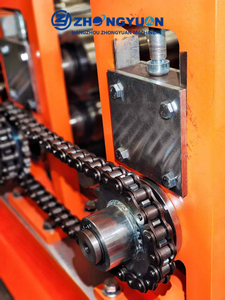

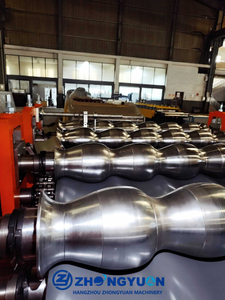

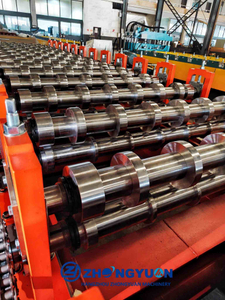

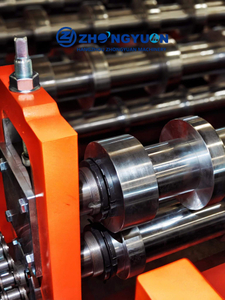

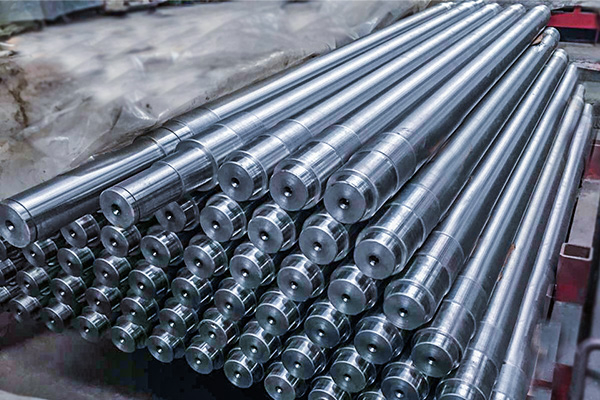

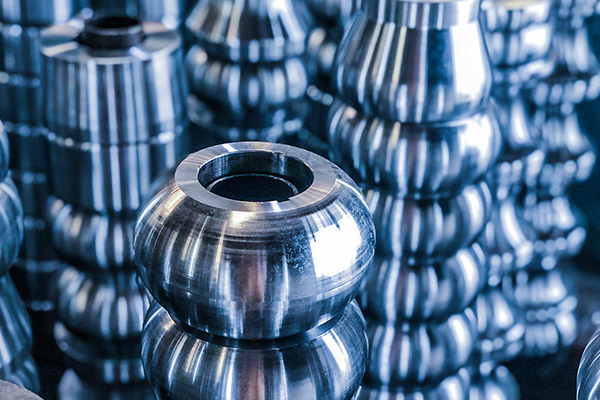

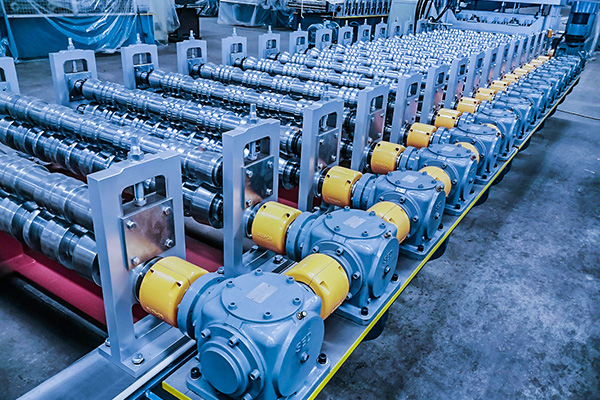

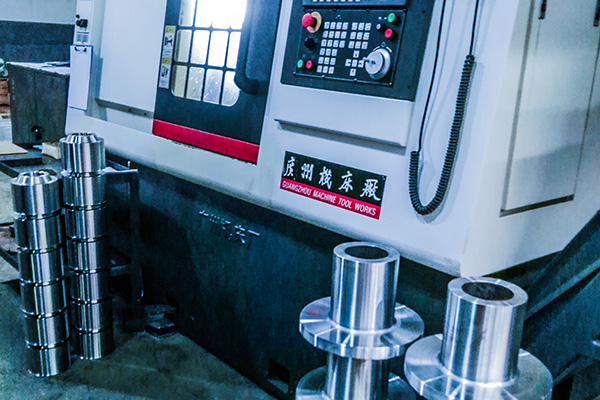

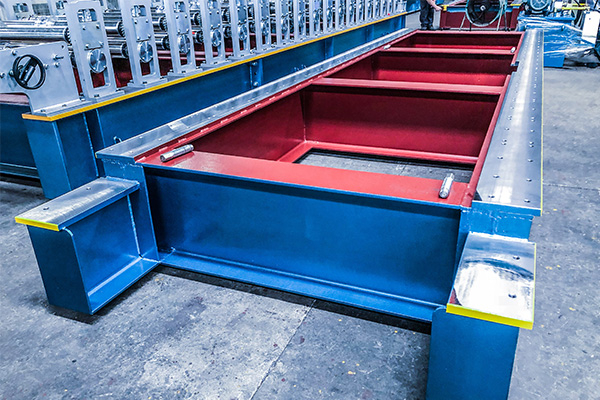

Structure & Component Description

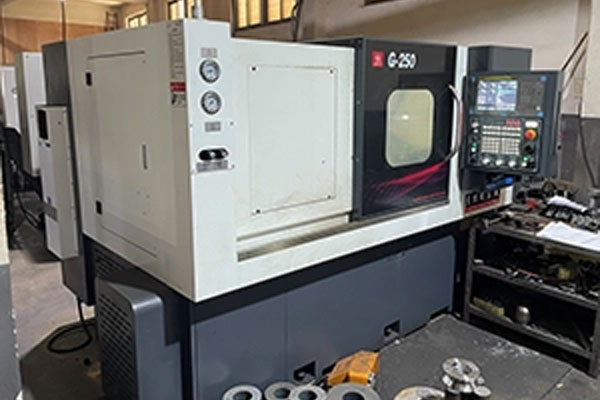

Only with advanced processing equipment can high-quality machine tools be produced.
