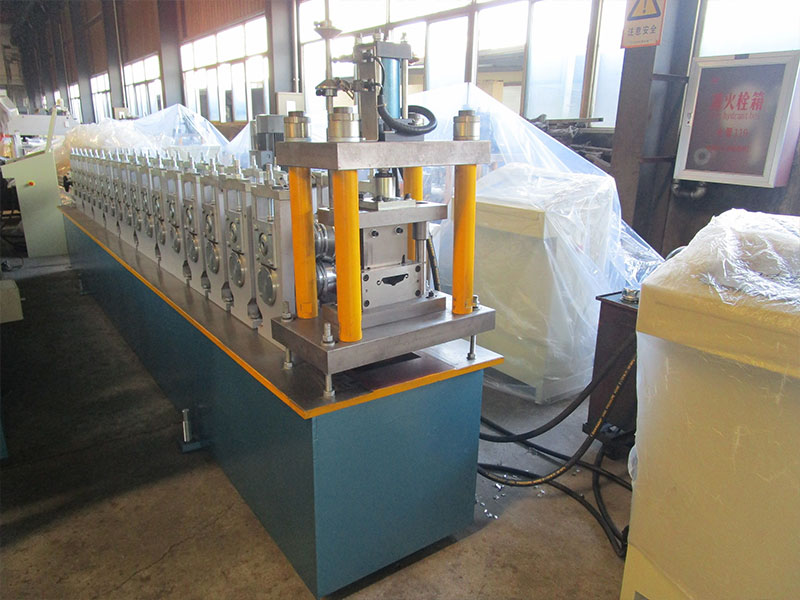

Roller Shutter Machine

Zhongyuan roller shutter machine is specially designed for the production of roller shutter door profiles. Its precision-machined roller dies and stable forming structure ensure smooth profile forming, accurate dimensions, and consistent surface quality. Supporting high-speed and reliable operation with precise cutting performance, the machine is an ideal choice for manufacturing roller shutters for commercial, industrial, and residential security applications.
To meet diverse customer requirements, we design and manufacture roller shutter roll forming machines in various specifications, models, and configurations, offering flexible and customized solutions.

Main Technical Parameters

Machine Components & Specifications
No.	Components	Qty.	Key Parameters
1	Manual Decoiler / Electric Decoiler	1 Set	Capacity: 5 tons
			Suitable Coil ID:508 mm
			Suitable Coil Max OD:1000 mm

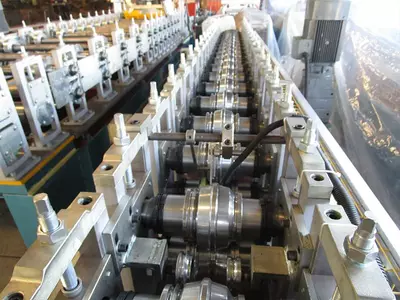

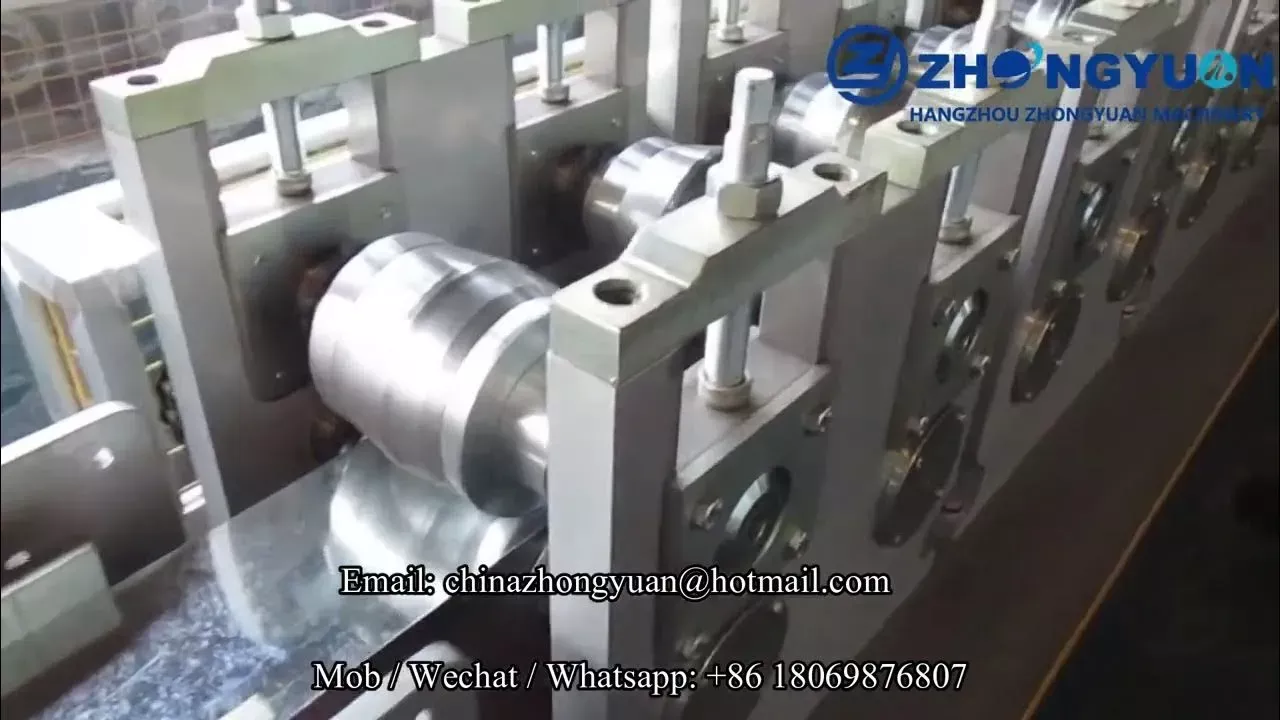

2	Roll-Forming System	1 Set	Number of forming stands: approx. 18(Subject to the final design)
			Main machine motor power: 4 kW(Subject to the final design)
			Forming Speed: about 20m/min (without cut time)
3	Hydraulic Stop-and-Cut Unit	1 Set	Cutting Blade material: Cr12MoV tool steel
4	Hydraulic Power Unit	1 Set	Power:：2.2 kW
5	PLC Control System	1 Set	Delta (Taiwan) / Mitsubishi(Janpan)
6	Run-Out Table(Non-powered)	2 Pcs	Total is 3 meters
7	weight	about 3655 kg
8	Size	5.75L1.1W1.7H(Subject to the final design)
Coil Technical Parameters
No.	Parameters	Details
1	Raw Material	PPGI steel coils
2	Material Thickness	0.5mm-0.6mm
3	Coil Width	500mm
4	Yield Strength	550Mpa

Features of the Roller Shutter Machine

High Accuracy

1、Shaft material is No.45 steel, strong and durable.Shafts for rollers are tooled by grinding machine 2 times. Ensure product accuracy.
2、Finished shafts from grinding machine,rollers on these shafts can ensure final sheet accuracy.

High Efficiency

Production speed: 20/min.
9600m per shift one day(8 hours) .

Automatic & Easy Operate

Machine long life: Roller material is high grade No.45 forged steel,plated with hard chrome,processed by digital-controlled procession.
Mitsubishi PLC with touch screen. Friendly man-machine interaction.The system is simple to learn and easy to operate.
Automatic Operation:once you set quantity and length of product,machine will produce product automatically.

Control Quality Well

Zhongyuan factory is a "All-in-house source" from raw material to the final high-precision forming machine. All are done in our factory. Quality and delivery time can be controlled here.

Simple to install and easy to maintain.

You only need to connect some tubes and wires in your factory. Video and manual will show you how to do.
Our experienced technicians can supply overseas service.
