Brief introduction of fence roll forming machine price for sale:

Technical Parameters of fence panel roll forming machine:

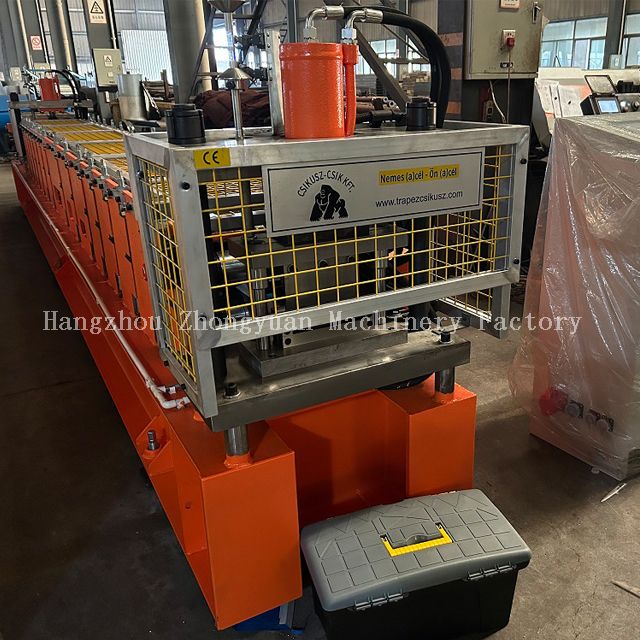

Machine components of galvanized steel metal fence roll forming machine:

Fence working processing display

Decoiling the sheet→Guiding sheet →Roll forming→Punching gap→Roll forming → Measure length and cutting the sheet

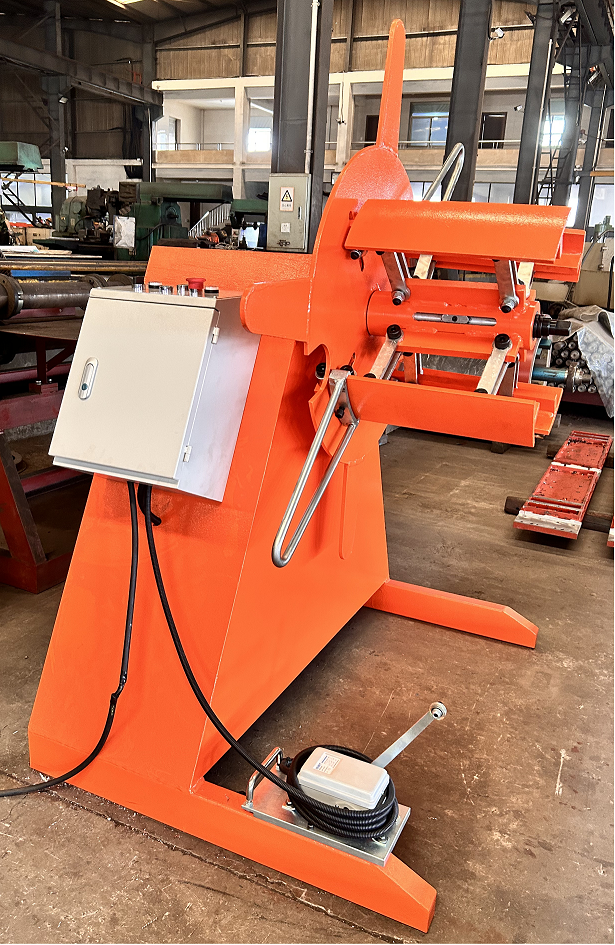

1.Electric motor drive decoiler

1) Motor-power decoiler; max. Capacity: 1500kg

2) Suit for coil inner-diameter: 508mm, suit for coil max outer diameter: 1000mm

2.Punching device

1) Adopt welded steel frame, it has great rigidity.

2) Punching die material: Cr12 MOV.

3) One sets of punching device, used to punch one gap for profile to warranty shape of

not be damaged after cutting.

4)  The power of punching is provided by hydraulic station.

3.Hydraulic Automatic Cutting

1)  Adopts post cutting, Stop to cut;

2)  The cutting blade material is Cr12MOV. with quenched treatment.

3)  Cutting frame has been heat treatment to avoid final product deformation. cutting length tolerance ±2mm.

4)  The power of cutting is provided by hydraulic station.

5)  The final product can be cut as per set length in PLC controller, and the length is automatically measured by encoder.  When final product reaches the set length, machine will stop to cut the product automatically. Finish this action, machine will run again continuously.

4.PLC Control System

1) This system uses Mitsubishi PLC to control the all working actions. Production quantity and each piece length will be automatically measured. It is convenient to control the roll forming machine.

2) Mitsubishi converter adjusts speed technology, realize the automatic production.

3)  Touch screen is input and canceled the working data.

4)  Friendly man-machine interface system can be set batches to the workpiece, length, quantity, etc.

5)  Encoder count, having function of count and measuring length.

6)  Suitable power voltage:380V/50Hz, 3 phase (can be designed according to buyer’s requirement)

7)  Hungarian Menu (translation come from buyer)

5.Hydraulic Station

1)  It supplies the power for the hydraulic punching and cutting.

2)  All hydraulic accessories are all use Chinese famous brand products.

3)  Hydraulic motor power: about 2.2kw(Depend on final design)

Product application of metal fence roll forming line

In order to satisfy various customer requirements, we design and manufacture steel fence cold roll forming machine in different specs, models and configurations.

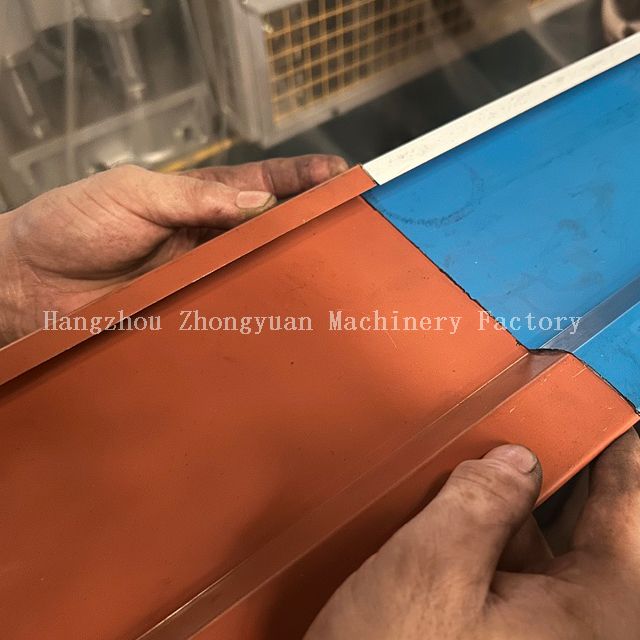

Fence making roll forming machine Application Example

Packaging Details of metal fence roll forming machine

1. One *20GP container for loading one set of fence roll forming machine;

2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;

3.Spare parts and some small parts packed in plastic tooling box;

4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping.

Delivery Time

Machine ready within 100 days after getting 30% deposit and confirming contract details from buyer and sellers.
