Roof Roll Forming Machine

Home » Roof Roll Forming Machine

The roof roll forming machine is designed for a wide range of applications, including roofing systems, wall cladding, and steel structure projects. These machines are suitable for processing various metal coils such as galvanized steel, pre-painted steel, aluminum, and stainless steel, providing flexibility for different project requirements.

Zhongyuan roof roll forming machine series includes five sub-models, which mainly differ in machine structure and cutting systems. “European Structure” designs feature thicker wall plates, higher machining accuracy, and improved fastening methods, resulting in enhanced stability and long-term performance compared with “Normal Structure”.

In terms of cutting solutions, both standard fixed cutting and flying (tracking) cutting options are available. Flying cutting allows continuous production without stopping the material feed, improving efficiency. Additionally, cutting systems can be powered by either hydraulic or electric drives, offering different solutions based on cutting force requirements, energy preferences, and production needs.

Roof Roll Forming Machine

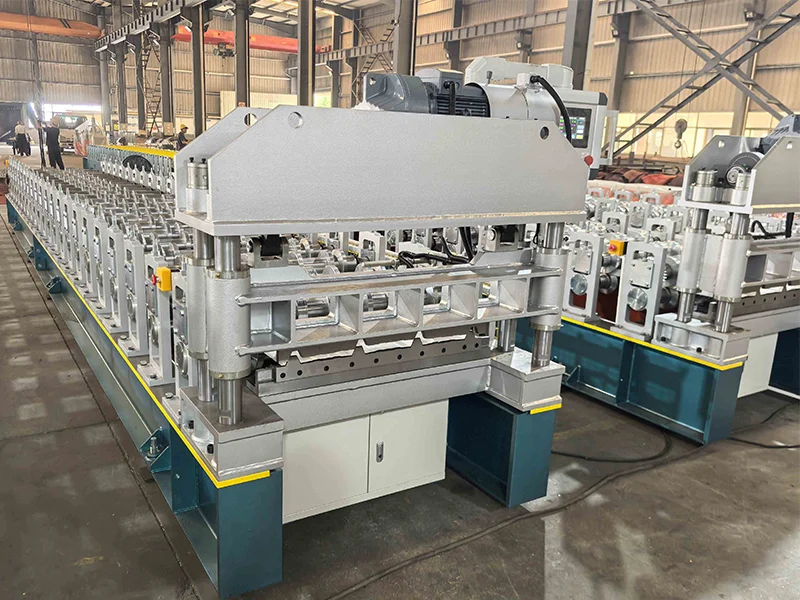

European Structure Roof Sheet Roll Forming Machine With Electric Cutting

European Structure Roof Sheet Roll Forming Machine With Flying Cutting

Normal Structure Roof Sheet Roll Forming Machine With Electric Cutting

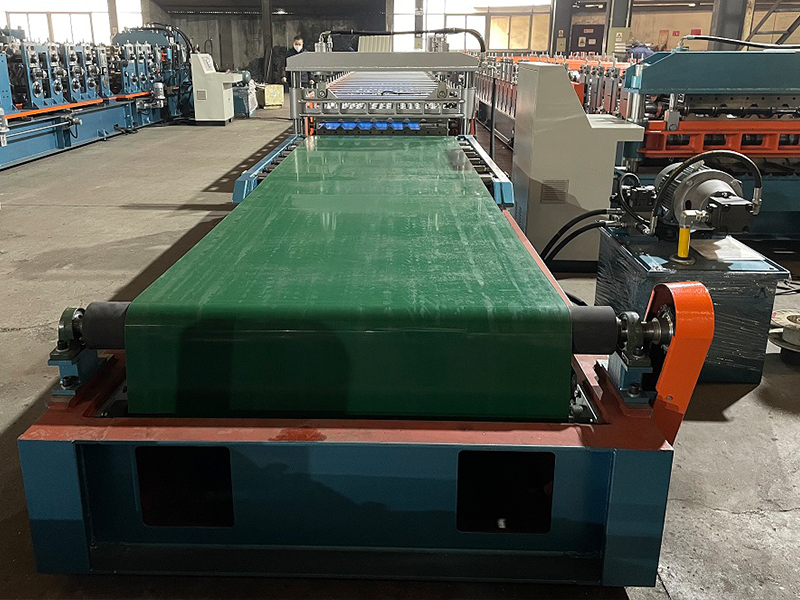

Normal Structure Roof Sheet Roll Forming Machine With Flying Cutting

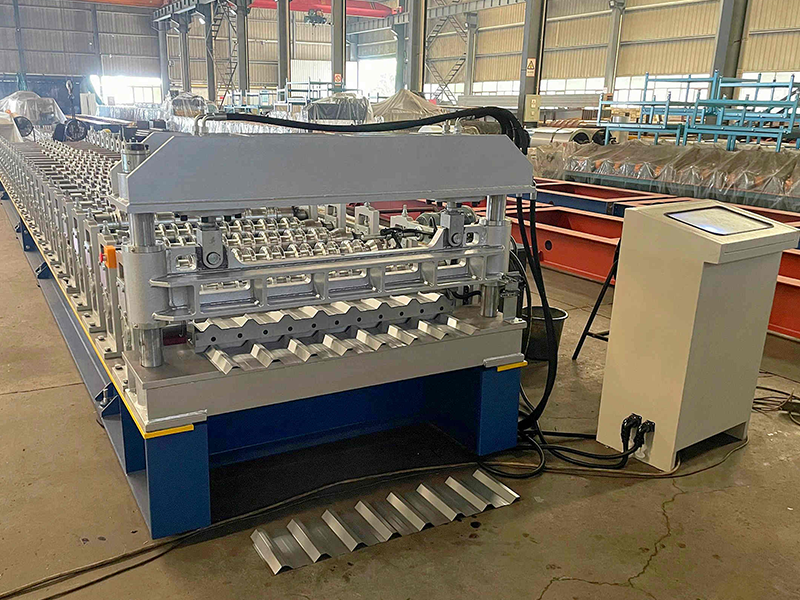

Hydraulic Cutting Roof Sheet Roll Forming Machine

Main Technical Parameters Of Metal Roof Roll Forming Machines

Control The Quantity And Cutting Length Automatically. Input the production data(such as production quantity, Length,etc.)on the touch screen, machine can finish the set production plan automatically. A one-time buyer can set 20 batches of data in the programme.

Machine model	Roof Forming Machines	Operation way	Automatic machine
Certification	ISO9001,CE	Warranty	36 Months
Customized	Customized	Advantage	More than 10 years of life time
Weight	About 11T	Material thickness	0.3-0.7mm
Suiting material	PPGI steel coils	Cutting material	Cr12.MOV.
Main motor power	7.5KW	Forming rollers qty.	26 stations
Shafts diameter	72 mm	Roller material	45# Steel, plated chrome
Machine frame	H400	Wall thickness	40mm
Forming speed	30-35m/min.	Transportation	In Containers, suitable for sea and road transmission.
Trademark	Zhongyuan	HS Code	84552210

How Do We Manufacture Roof Roll Forming Machines

Machine Body Parts

1. Guide Device

Feeding material guide device, use high speed steel on both sides;
Its feature of High hardness, high wear resistance and high heat resistance to guarantee long life.

2. High Accuracy Shafts

Solid shafts dia. 72mm for different material thickness.
All shafts are tooled twice by cylindrical grinding machine to ensure final precision.
Guarantee buyers get high accuracy deck sheet from Zhongyuan made machine.

3. Rollers Of Machine

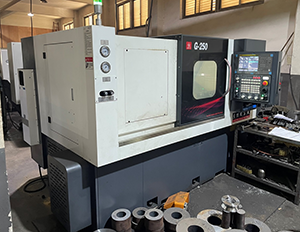

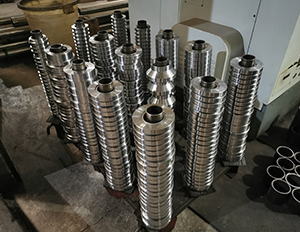

CNC machine Roller Rollers

All Rollers are manufactured from 45# steel
CNC machines can improve roller precision.
A chromate finish on the surface adds hardness to the rollers.

4. Design Bearings Inside Forming Rollers

Design bearings inside the rollers to allow the machine to run with less loading so that the rollers are not easily damaged.
Ensure the same speed between all the rollers, no speed difference between rollers, and improve the forming accuracy.
Bearings are helping to prolong machine life. Our made forming machines are allowed to be used for more than 15 years.

5. Main Machine Body

6. Automatic Cutting System

Post to cut, stop to cutting or no-stop cutting for option
All cutting frame are heat treatment to remove the original stress of steel, reduce deformation, improve stability
Cutting tool material: Cr12MoV,hardness can reach 58-60Hrc.
Machine can cut as buyers wanted sheet length,full automatically.

7. Automatic PLC Control System

Components of control system	PLC, Inverter, Touch Screen, Encoder, relays, etc
PLC	Mitsubishi (Japanese brand) (Siemens for option)
Inverter	Mitsubishi (Japanese brand) (Siemens for option)
Touch screen	Mitsubishi (Japanese brand) (Siemens for option)
Encoder	OMRON or NEMICON (Japan brand)
Relays	Schneider(French brand)
Limit switch	Schneider(French brand) Cut-to-Length Tolerance≤±1 mm

Control The Quantity And Cutting Length Automatically
Input the production data(such as production quantity, Length,etc.)on the touch screen, machine can finish the set production plan automatically.
A one-time buyer can set 20 batches of data in the programme.

Machine Components

Decoiler

Guiding Device

1set

Roll-Forming M/C

1 set

Hydraulic Cutting

1set

Hydraulic station

1 set

PLC Control System

1 set

Product Rack (un-powered)

1 set (automatic stacker for option)

Tool Box

1 piece
