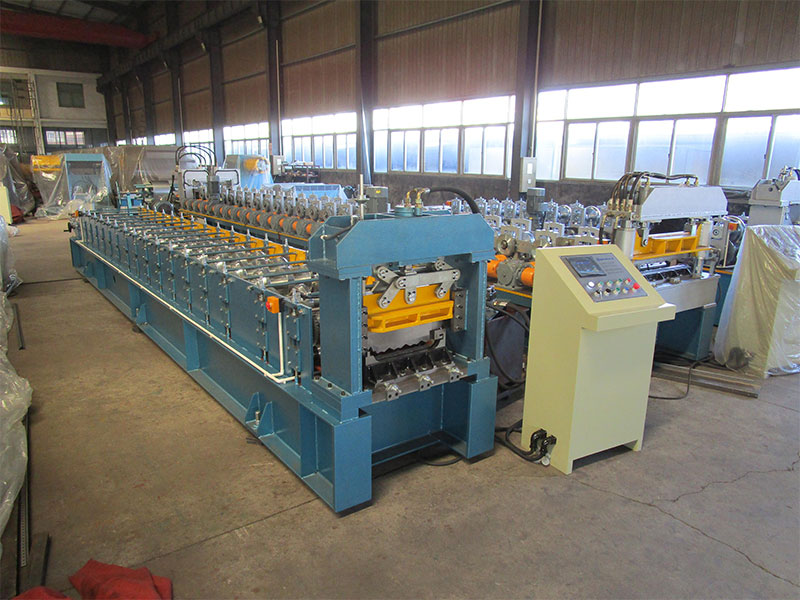

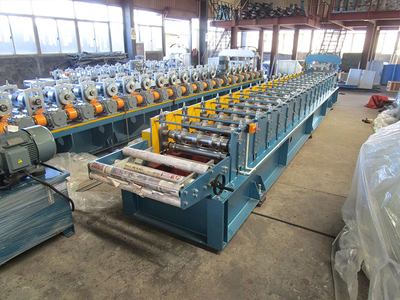

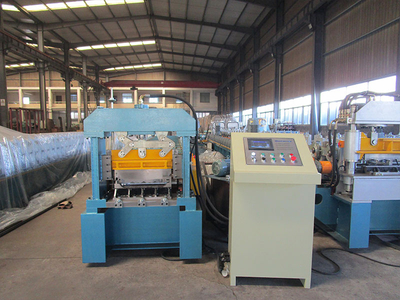

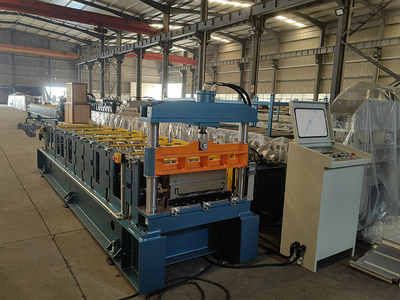

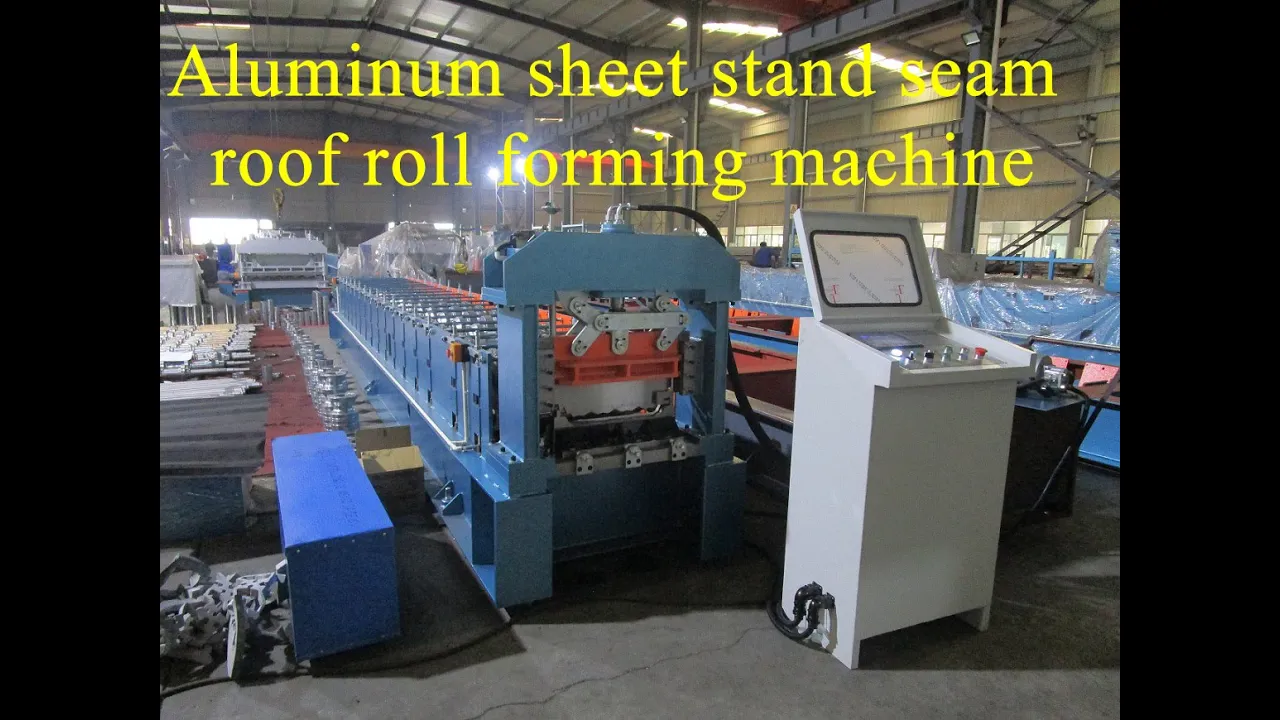

Standing Seam Roof Panel Machine

Main Technical Parameters

Machine Components & Specifications
No.	Components	Qty.	Key Parameters
1	Manual Decoiler / Electric Decoiler	1 Set	Capacity: 5 tons
			Suitable Coil ID:508 mm
			Suitable Coil Max OD:1000 mm

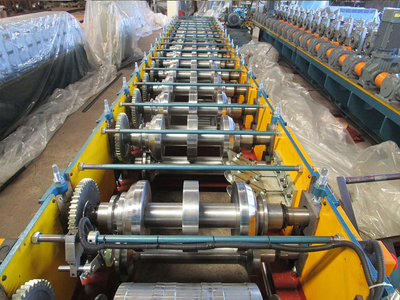

2	Roll-Forming System	1 Set	Number of forming stands: approx. 17(Subject to the final design)
			Main machine motor power: about 5.5kW(Subject to the final design)
			Working Speed: about 20m/min (without cut time)
3	Hydraulic Stop-and-Cut Unit	1 Set	Cutting Blade material: Cr12MoV tool steel
4	Hydraulic Power Unit	1 Set	Power:1 x2.2kW
5	PLC Control System	1 Set	Delta (Taiwan) / Mitsubishi(Japan)
6	Run-Out Table(Non-powered)	2 Pcs	Total is 3 meters
7	weight	about 6000 kg
8	Size	6.5L1.7W1.8H(Subject to the final design)
Coil Technical Parameters
No.	Parameters	Details
1	Raw Material	PPGI steel coils
2	Material Thickness	0.4mm-0.8mm
3	Coil Width	600mm/610mm
4	Yield Strength	500Mpa-550Mpa

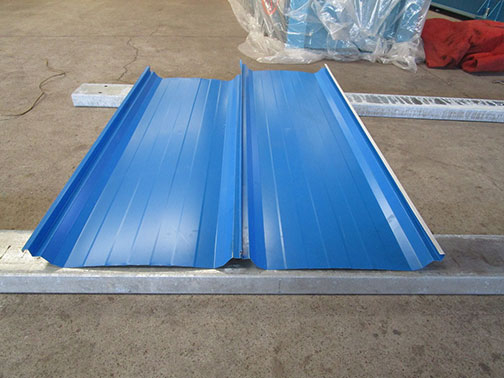

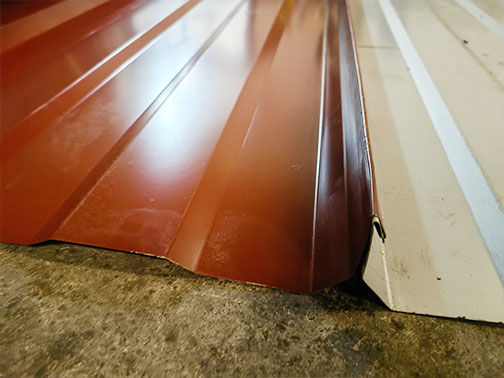

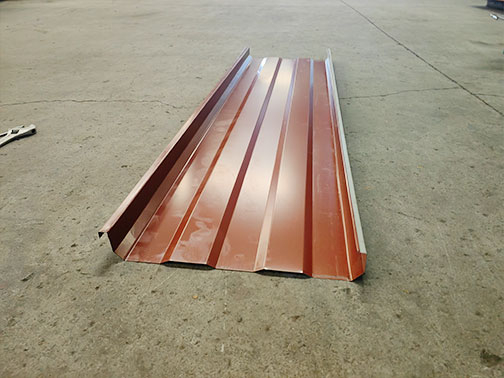

Typical Profiles

Standing Seam Roof Panel Machine-FAQ

What is a standing seam roof panel machine?
A standing seam roof panel machine forms steel coil into roof panels with raised, interlocking seams. The panels are joined with concealed fasteners, so no screw penetrations appear on the roof surface — the key advantage of standing seam metal roofing over through-fastened panels.

What material does the standing seam machine process?
The machine processes PPGI steel coil from 0.4 to 0.8 mm thick with a high yield strength of 500–550 MPa, at a coil width of 600 mm or 610 mm, fed from a 5-ton decoiler with 508 mm coil inner diameter.

What components does the complete line include?
The complete line includes: a manual or electric 5-ton decoiler, roll forming system (about 17 stands, 5.5 kW), hydraulic stop-and-cut unit with Cr12MoV tool-steel blades, a 2.2 kW hydraulic power unit, a PLC control system (Delta from Taiwan or Mitsubishi from Japan), and two non-powered run-out tables totaling 3 meters.

How large and heavy is the machine?
The standing seam machine weighs about 6,000 kg and measures approximately 6.5 m long × 1.7 m wide × 1.8 m high (final design subject to the profile), so a full line typically fits in one shipping container for export delivery.

Can the standing seam machine be customized?
Yes. Zhongyuan (Hangzhou Zhongyuan Machinery Factory) has designed custom roll forming equipment since 2003. Seam profile, material thickness range, forming stand count and automation level are all engineered from the customer's drawings and project requirements.
