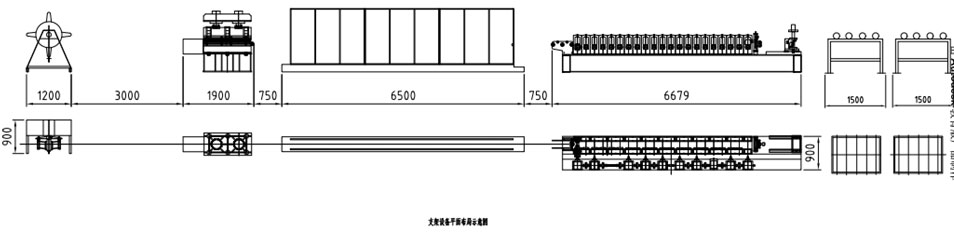

Upright Roll Forming Machine

 Motor decoiler

1) Max. capacity: 3000kg
2) Suit for coil inner-diameter: 508mm, suit for coil max outer diameter: 1000mm
3) Manual power expands the coil inner surface.
4) Motor power:1.5KW

 Servo Feeding system

1) Servo feeding system to feed the raw material to punching machine continuously and ensure the punching hole precision.
2) It has an independent control system to control the feeding action and punching action.

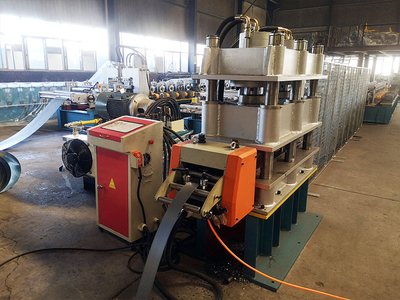

 Hydraulic Punching machine

1) Punching die material: Cr12 Mov Mould steel
2) Hydraulic punching machine force:30Ton
3) Punching 50times/min.

 Storage System

1)It helps to store the punched coil so that the forming action can be consistently.
2)Using motor drives the chain move so that move the punched coil.
3)Motor power:1.5KW.
4)Length:6.5meters.

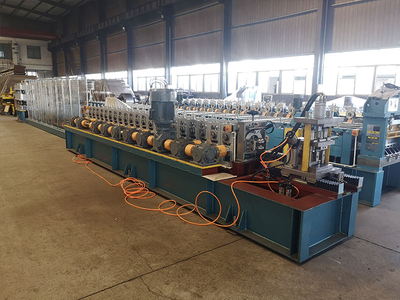

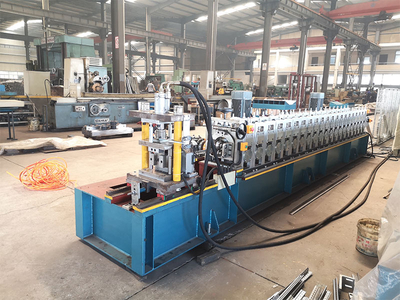

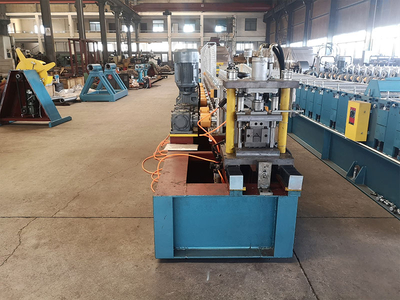

 Roll-Forming M/C

1)The main frame of machine is welded separately and the outside wall is connected by screw after being rotoblasted on the surface.
2)Roller Material is Cr12 Mov mould steel being quenched treatment, with digital-controlled procession.
3)Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product.
4)Shaft diameter is 55mm.
5)Quantity of forming rollers : About 21 stations
6)Chain and gear move the line, motor drives. All working actions are controlled by PLC electric cabinet automatically.
7)Suitable power voltage:380V/50Hz, 3 phase (can be designed according to buyer’s requirement)
8)Line working speed:about 7pcs of 2meters long product.
9)Main machine motor power: about 11kW
10)Gear boxes to transmit the machine so that can ensure the precision of the product sizes.
11)Roll forming system net weight: 5720KG.

 Hydraulic Cutting

1) Adopts post cutting, Stop to cut.
2) The cutting blade material is Cr12 Mov Mould steel with quenched treatment.
3) Adopts welded frame for good rigidity.
4) Cutting frame has been heat treatment to avoid final product deformation. cutting length tolerance ±2mm.
5) The power of cutting is provided by hydraulic station.
6) The final product can be cut as per set length in PLC controller, and the length is automatically measured by encoder. When final product reaches the set length, machine will stop to cut the product automatically. Finish this action, machine will run again continuously.
