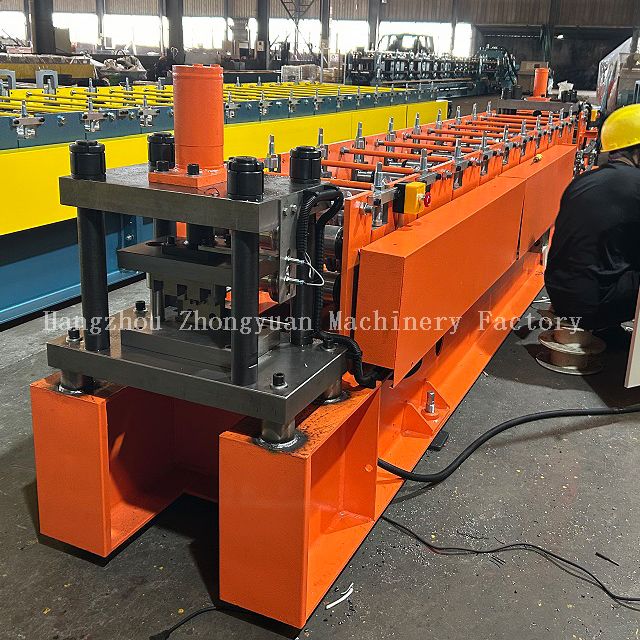

Zhongyuan Special Type W Shape Roll Forming Machine with High Speed
1.【High efficiency】Production speed: Max. About 20-25m/min. You can get 9600m per shift one day(8 hours) . 2.【Long Life Machine 】Buyer can use Zhongyuan cold roll forming machine at least 15 years. 3.【Excellent Services】Technician can be sent to your factory to install the machine and train your workers. Engineers are able to service overseas.We supply lifetime
Guiding sheet →Roll forming→automatic punching→ Measure length and cutting the sheet
DESCRIPTION

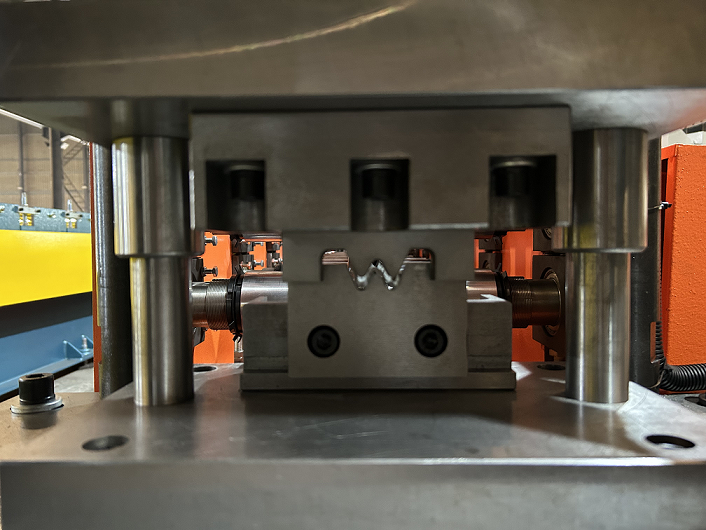

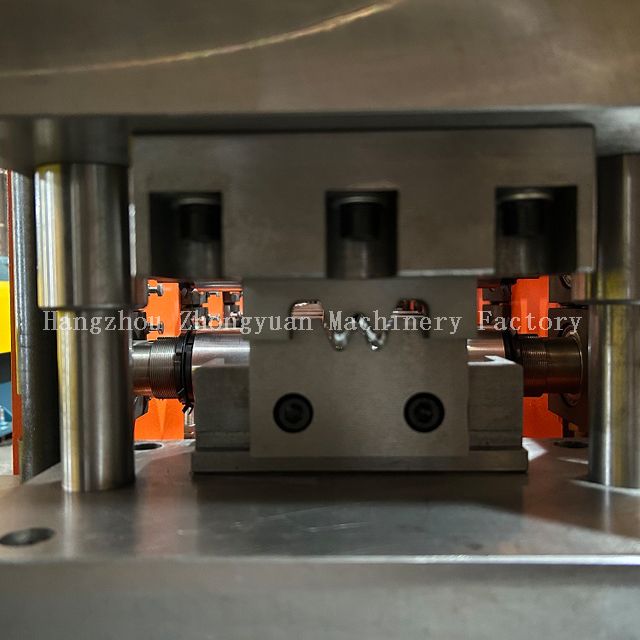

1.Automatic hydraulic Cutting
1) Adopts post cutting, Stop to cut;
2) The cutting blade material is Cr12MOV. with quenched treatment.
3) Cutting frame has been heat treatment to avoid final product deformation. cutting length tolerance ±2mm.
5) The power of cutting is provided by hydraulic station. Power is 5.5kw.
6) The final product can be cut as per set length in PLC controller, and the length is automatically measured by encoder. When final product reaches the set length, machine will stop to cut the product automatically. Finish this action, machine will run again continuously.
2.Automatic punching device
1) Hydraulic power :5.5kw
2) Round holes dies is dia.3mm.
3) Vertical position is to be adjusted in the PLC.
4) Punching die material: Cr12mov.
5) One extra punching head is included.
3.PLC Control System
1) This system uses Mitsubishi PLC to control the all working actions. Production quantity and each piece length will be automatically measured. It is convenient to control the roll forming machine.
2) Mitsubishi converter adjusts speed technology, realize the automatic production.
3) Touch screen is input and canceled the working data.
4) Friendly man-machine interface system can be set batches to the workpiece, length, quantity, etc.
5) Encoder count, having function of count and measuring length.
6) Suitable power voltage:380V/50Hz, 3 phase (can be designed according to buyer’s requirement)
7) Hungarian Menu (translation come from buyer)
APPLICATION
Product application of W making machine
In order to satisfy various customer requirements, we design and manufacture W roll forming machine in different specs, models and configurations.
W forming machine Application Example
PACKAGING
Packaging Details of W machine
1. One *20GP container for loading one set of W roll making machine;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3.Spare parts and some small parts packed in plastic tooling box;
4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping.
Delivery Time
Machine ready within 100 days after getting 30% deposit and confirming contract details from buyer and sellers.
