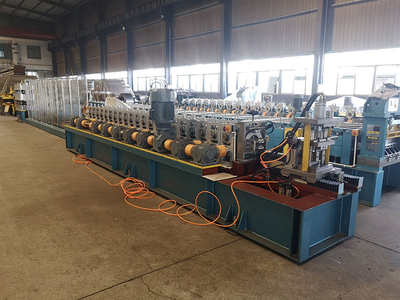

Shelf Roll Forming Machine

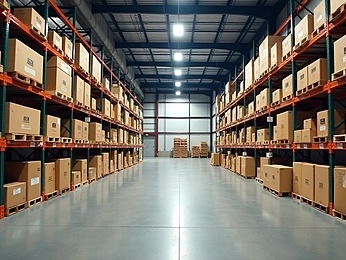

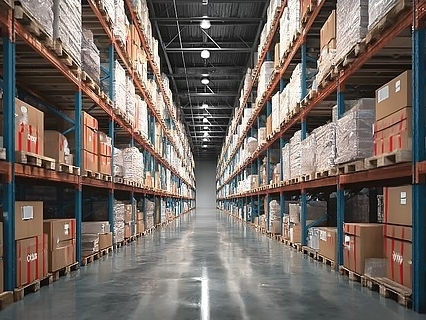

The zhongyuan shelf roll forming machine is specially designed for various storage rack profiles, capable of continuously forming u-shaped, c-shaped, or composite rack beams. Its optimized roller dies and guiding system enable high-precision forming of thin sheets, ensuring dimensional consistency while supporting high-speed mass production. Ideal for manufacturing logistics shelving, supermarket racks, and light steel structural components.

Main Technical Parameters

Suitable material	Galvanization steel sheet
Thickness of material	2.0-3.0 mm
Yield strength of raw material	80KSI material (550Mpa)
Forming Speed	15000 mm/min.
Power Requirement	Main motor power: 2X11KW （Depend on final design） The motor power of servo machine: 3KW Power of punching machine: 5.5KW Power of hydraulic cutting: 5.5KW
Decoiler	Max. Capacity: 3000kg
Control system	Mitsubishi PLC and converter
Diameter of shaft	82mm
Type of cutting	length-set cutting and post forming style
Electric condition	440V/3Phase/ 60HZ
Roller Material	Cr12 mov mould steel being quenched treatment, with digital-controlled procession, which ensures the rollers’ hardness to be HR60 and durable.
Active Shaft Material	High grade No.45 carbon wrought steel, which can improve the integrated mechanic feature of the shaft
Electric Elements	PLC control panel, transducer imported from Mitsubishi of Japan Other elements from famous suppliers in China
Cutter blade	Cr12 mov mould steel with quenched treatment
Quantity of rollers	21 stations
leveling device motor	2.2KW
Weight	16200kg

Machine Components

Double head Mechanical decoiler

Leveling Equipment

1set

Punching machine

1 set

Roll Forming Equipment

1set (Gear box transmission)

Post cutting Equipment

1 set

Hydraulic Station

1pc

PLC Control Panel

1pc

Run out Table

1 set （2pieces）

Double head mechanical decoiler

Consists of one uncoiler with capacity of 3000kg and its base. The steel sheet is
manually fed to the leveling equipment first, then feeding to the forming system automatically.

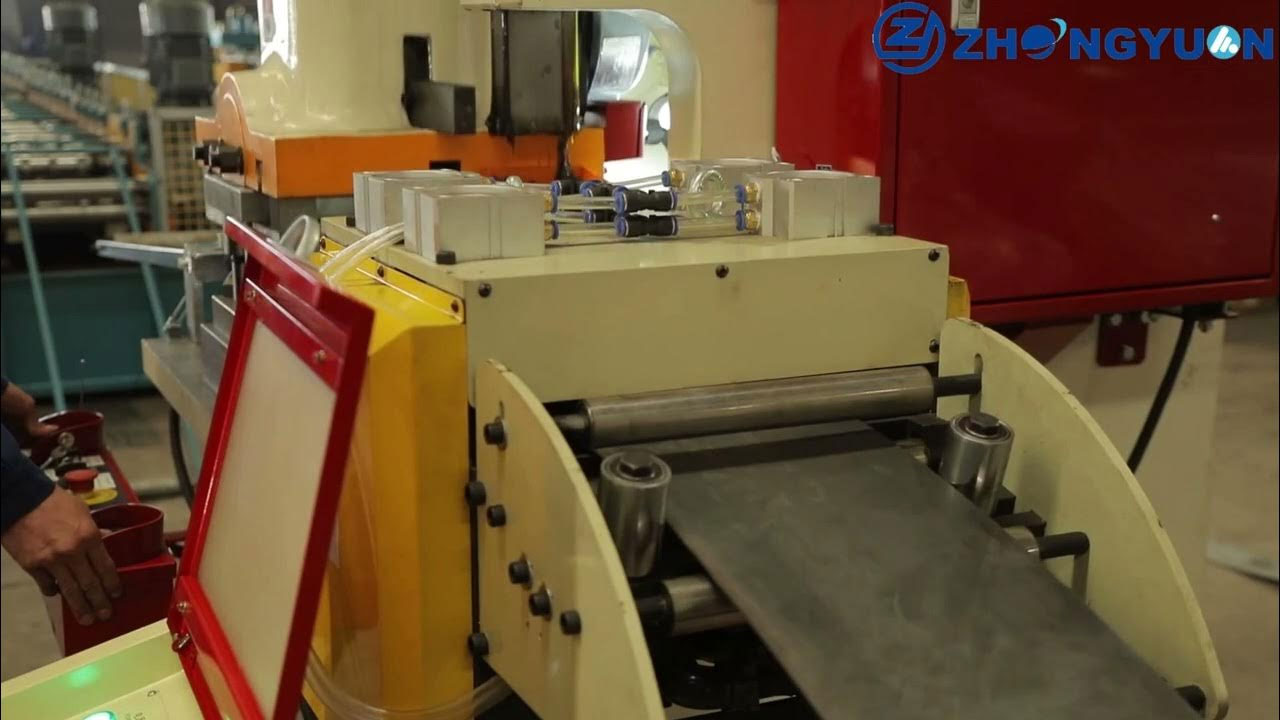

Leveling Equipment

1) function.
Release the stub bar of coils, guiding it to leveling device, flatten the coil sheet .
When feeding the coil , the bucket press the stub bar of coils, guiding the coil into leveling device.
The leveling device with feeding rollers and leveling rollers. Feeding rollers can be adjustable to go up and down, which is easy to adjust the distance between leveling rollers and its angle of inclination.
2) parameter:
①Maximum speed : 18 m/min
②Maximum material width : 300mm
③Material thickness : 2.0-3.0 mm
④ Leveling Precision : ±1.5mm

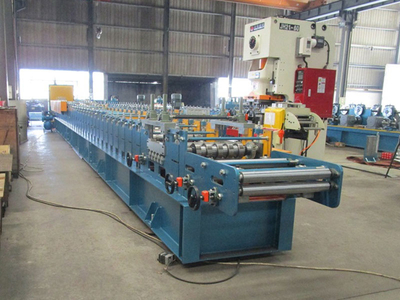

Punching device

1) There is one punching device to make the holes as drawing for connection.
2) Including in all moulds.
3) The vertical position is to be adjusted by inputting parameters into the PLC.
4) Punching die material: Cr12 Mov Mould steel
5) Servo punching system .
6) Punching continuously to guarantee high production speed.

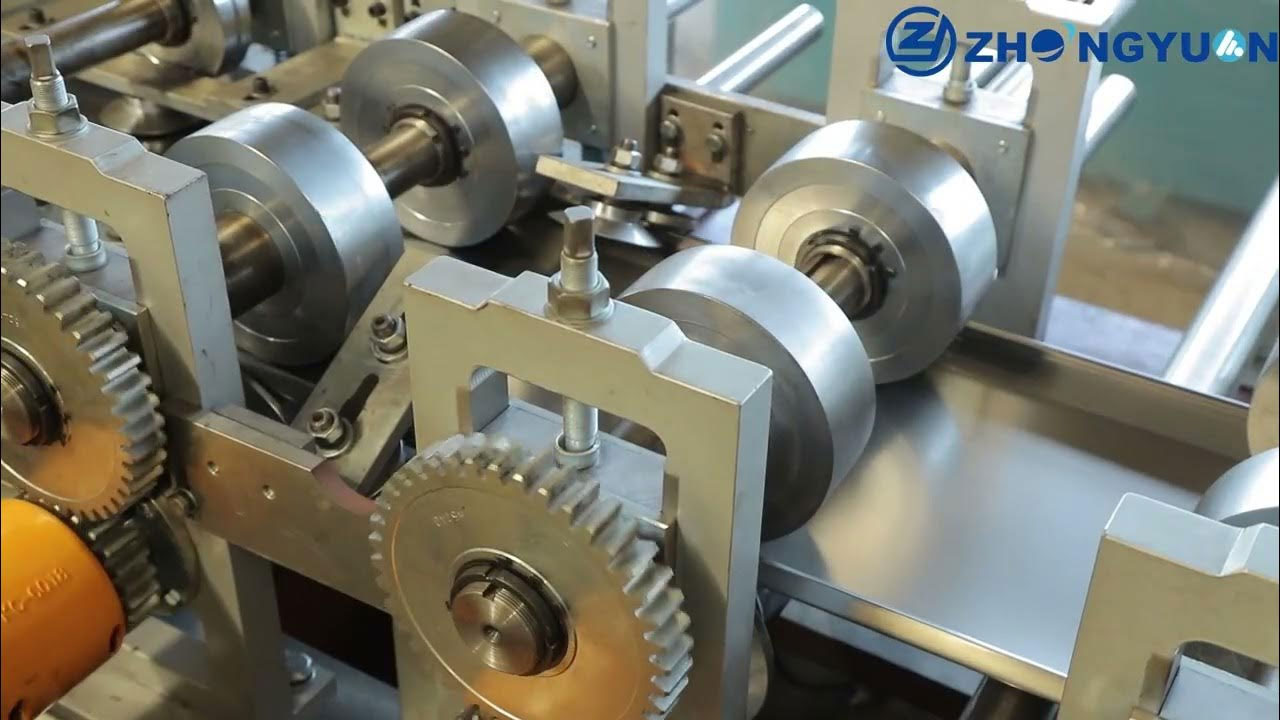

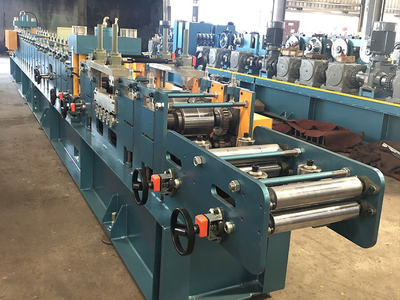

Roll forming system

1)Roll forming system consist of machine frame, transmission parts and roll forming rollers,
2)Roller Material is CR12 mov mould, HRC58-60, with digital-controlled procession.
3)Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product.
4)Shaft diameter is 82mm.
5)Quantity of forming rollers: About 21 stations
6)Transmission system: Gear box transmission system, motor drives.
All working actions are controlled by PLC electric cabinet automatically.
7) Suitable power voltage:380V/50HZ/3Phase (can be designed according to buyer’s requirement)
8) Line working speed (Forming speed)：about 18m/min (without cutting and punching time)

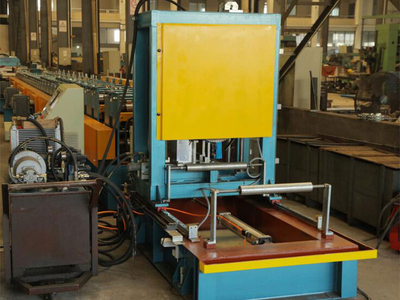

Post-forming cutting Equipment

1) The length and blocks can be set by the buyer through the control panel, when reach the set length, the machine will cut the panel automatically. The cutting is finished under the power of hydraulic station which guarantees the precision of cutting.
2) The style of post-forming cutting can ensure the good formed shape.
3) Cutter blade material: Cr12 mov mould steel with quenched treatment
