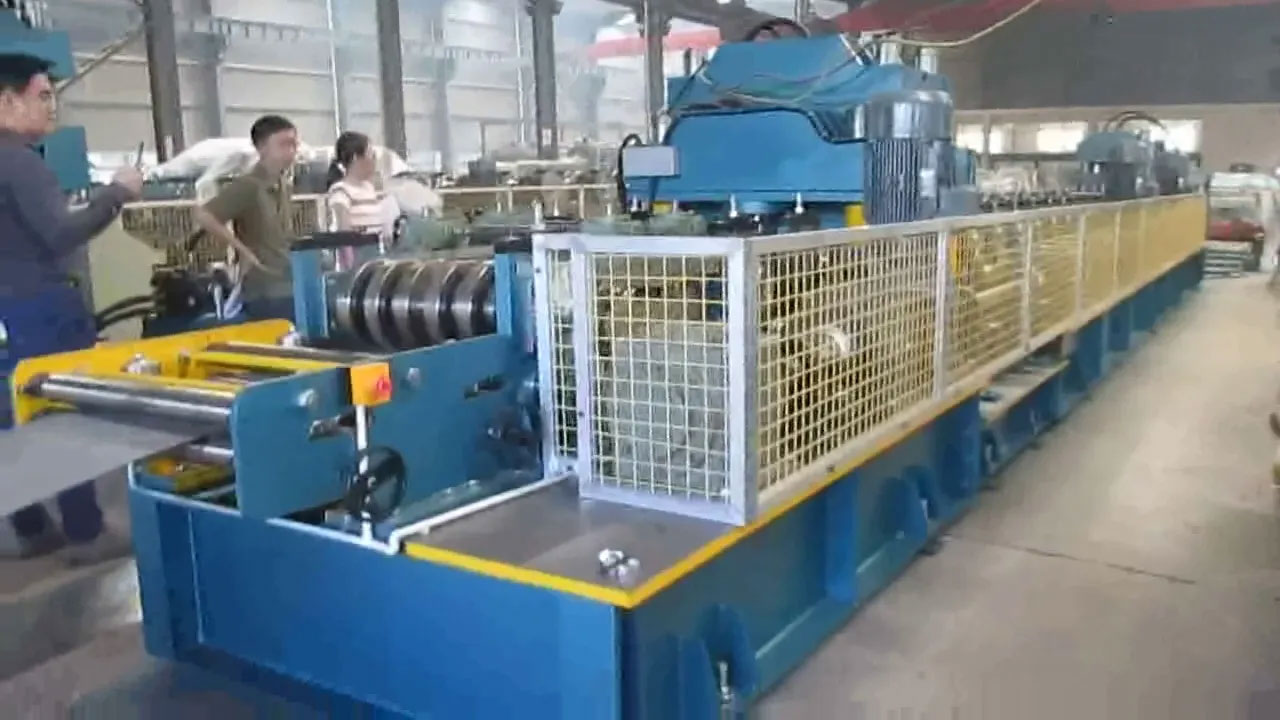

Guardrail Roll Forming Machine

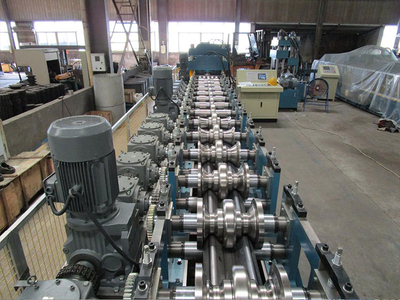

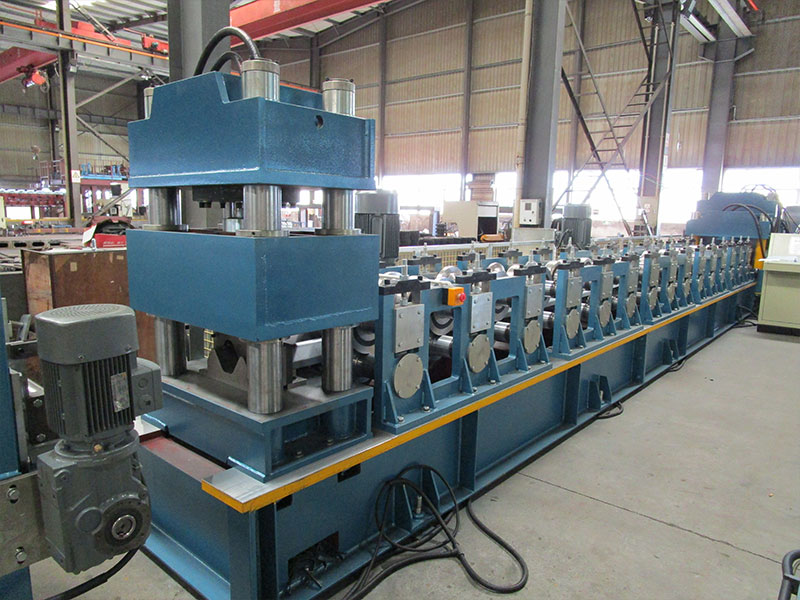

Zhongyuan provides complete roll forming solutions for guardrails used in highways and various transportation infrastructure. Our guardrail roll forming machines include the 3-Wave Guardrail Roll Forming Series and the W-Beam/2-Wave Guardrail Roll Forming Series, specifically designed for stable forming and mass production of thick galvanized steel guardrails. The fully automated production system integrates coil feeding, multi-station roll forming, and high-precision hydraulic cutting into a continuous production line, ensuring consistent dimensions, stable efficiency, and suitability for long-term, high-load operation.
To meet different project requirements and standards, Zhongyuan offers customized configuration options, including the number of forming stations, shaft diameters, and guardrail profile design. By changing roller dies and adjusting machine parameters, the same production platform can flexibly accommodate different panel widths and technical specifications, enabling efficient and stable mass production.

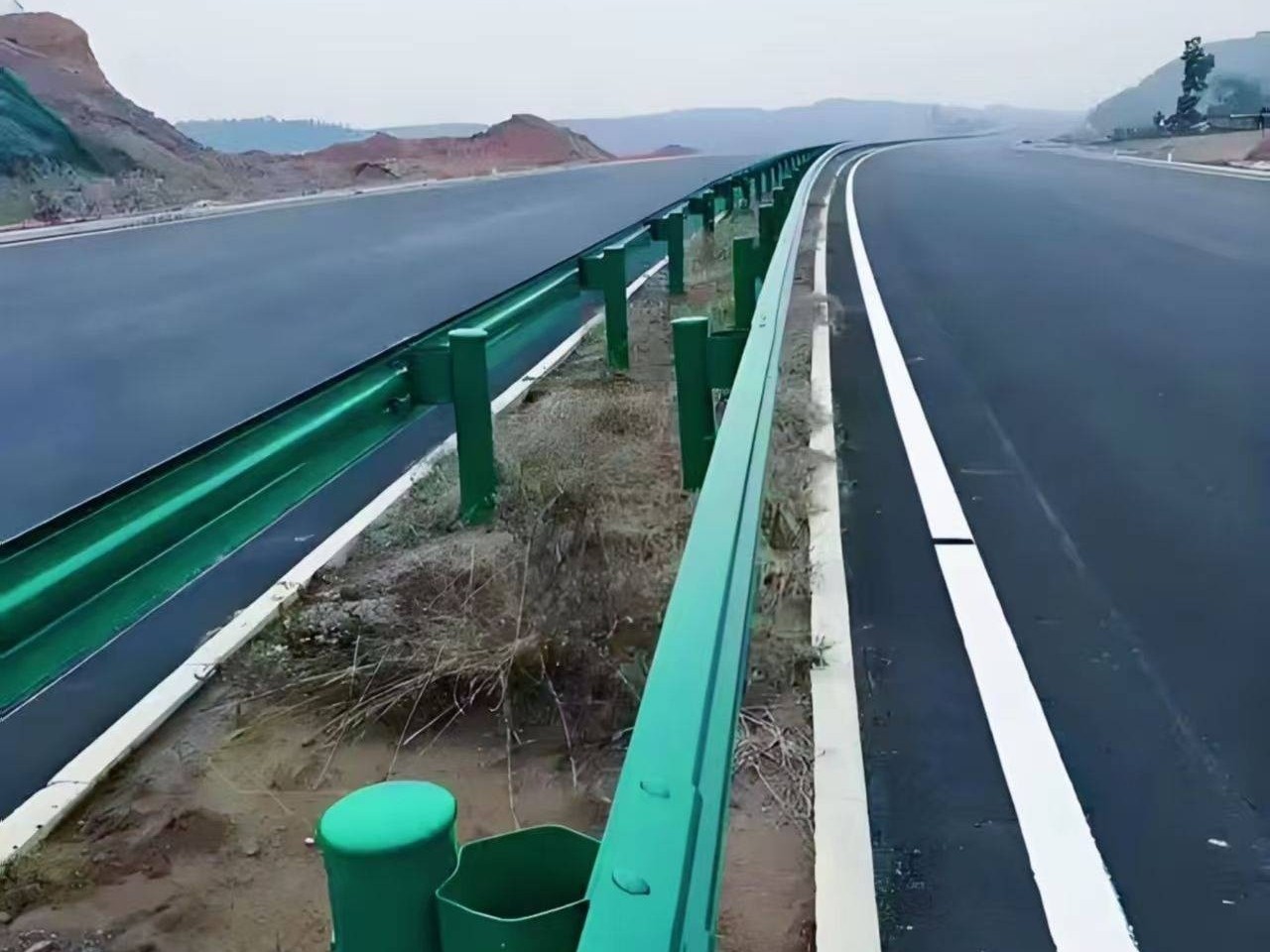

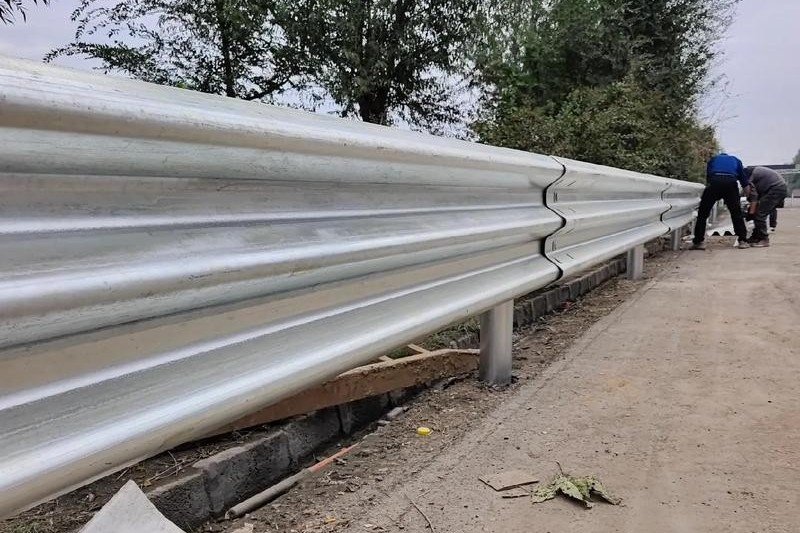

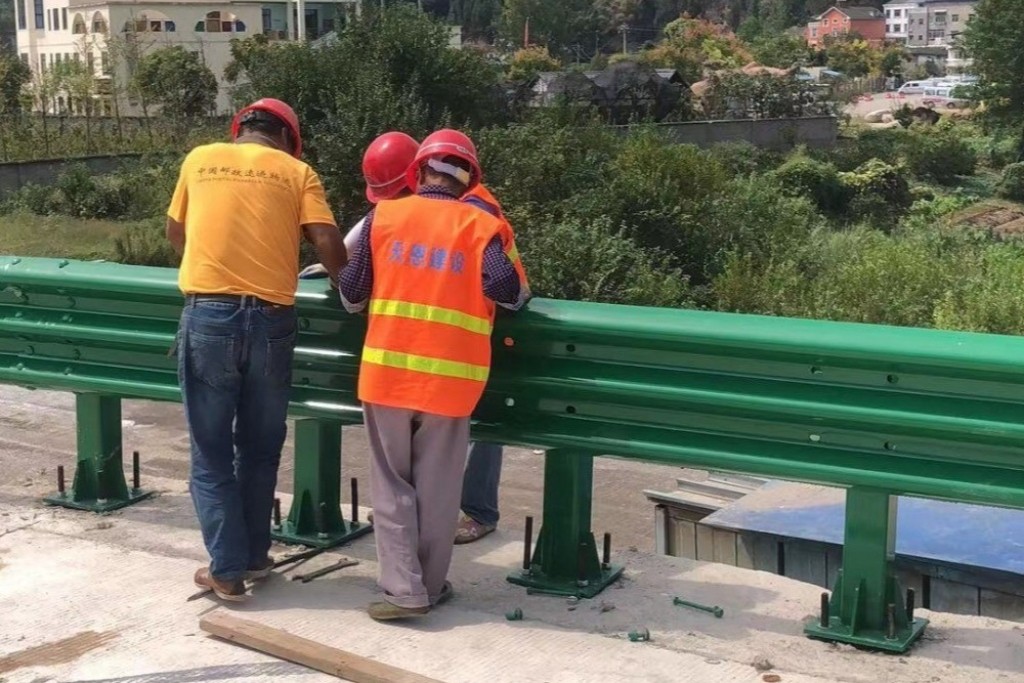

Application of Guardrail Roll Forming Machine

Main Technical Parameters

Machine Components & Specifications
No.	Components	Qty.	Key Parameters
1	Manual Decoiler / Electric Decoiler	1 Set	Capacity : 5 tons
			Suitable Coil ID : 508 mm
			Suitable Coil Max OD : 1000 mm
2	Roll-Forming System	1 Set	Number of forming stands: approx. 15(Subject to the final design)
			Main machine motor power: about 3*15 kW(Subject to the final design)
			Forming Speed: about 12-15 m/min (without cut time)
3	Hydraulic Stop-and-Cut Unit	1 Set	Cutting Blade material: Cr12MoV tool steel
5	PLC Control System	1 Set	Delta (Taiwan) / Mitsubishi(Japan)
6	Run-Out Table(Non-powered)	2 Pcs	Total is 3 meters
7	weight	about 28155 kg
8	Size	13.2L1.54W1.78H(Subject to the final design)
Coil Technical Parameters
No.	Parameters	Details
1	Raw Material	PPGI steel coils
2	Material Thickness	3.0 mm-3.25 mm
3	Coil Width	483 mm
4	Yield Strength	Q235-Q345

Suiting Raw Material

Material Thickness

2.5-3.0 mm

Applicable material

Galvanized coils or Black Steel Coil

Yield strength of material

235Mpa-350Mpa

Machine Components

Decoiler

Guiding Equipment

1set

Post-cutting device

1 set

Punching devices

2 sets

Roll Forming Equipment

1 set

Hydraulic Station

1 set

PLC Control Panel

1set

Supporter Table

2 pc (automatic stacker for option)

Guardrail Roll Forming Machine

Application of Guardrail Roll Forming Machine

Main Technical Parameters

Suiting Raw Material

Material Thickness

Applicable material

Yield strength of material

Machine Components

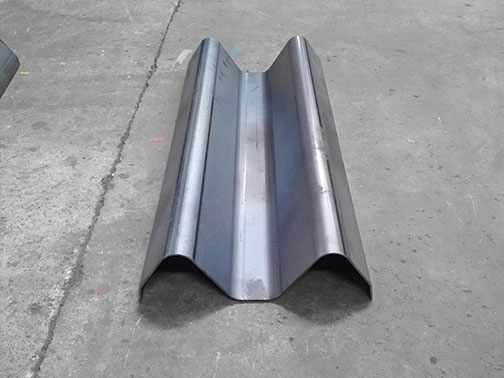

Typical Profiles

Application of Guardrail Roll Forming Machine
