European Structure Roof Sheet Roll Forming Machine With Flying Cutting

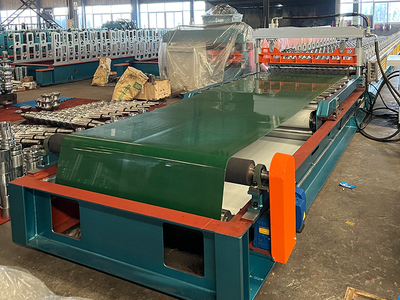

European Structure Roof Sheet Roll Forming Machine With Flying Cutting-2

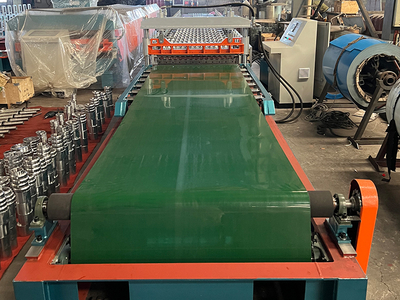

European Structure Roof Sheet Roll Forming Machine With Flying Cutting-3

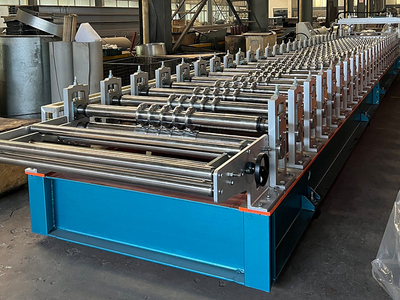

European Structure Roof Sheet Roll Forming Machine With Flying Cutting-4

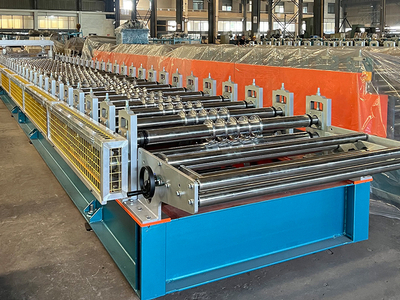

European Structure Roof Sheet Roll Forming Machine With Flying Cutting-5

Main Technical Parameters

Control The Quantity And Cutting Length Automatically. Input the production data(such as production quantity, Length,etc.)on the touch screen, machine can finish the set production plan automatically. A one-time buyer can set 20 batches of data in the programme.

Machine Components & Specifications
No.	Components	Qty.	Key Parameters
1	Manual Decoiler / Electric Decoiler	1 Set	Capacity : 5 tons
			Suitable Coil ID : 508 mm
			Suitable Coil Max OD : 1000 mm
2	Roll-Forming System	1 Set	Number of forming stands: approx. 22(Subject to the final design)
			Motor Power: 7.5 kW
			Forming Speed: 30-35 m/min
3	Hydraulic Stop-and-Cut Unit	1 Set	Cutting Blade material: Cr12 MoV tool steel
4	Hydraulic Power Unit	1 Set	Power: 2.2 kW
5	PLC Control System	1 Set	Delta (Taiwan) / Mitsubishi(Japan)
6	Run-Out Table(Non-powered)	2 Pcs	Total is 3 meters
7	weight	10965 kg
8	Size	15.81.771.52 m
Coil Technical Parameters
No.	Parameters	Details
1	Raw Material	PPGI steel Coils
2	Material Thickness	0.3-0.7 mm
3	Coil Width	Subject to the market requirements of the client
4	Yield Strength	550MPa（Customizable）
