Hydraulic Cutting Roof Sheet Roll Forming Machine
Home » Hydraulic Cutting Roof Sheet Roll Forming Machine

Hydraulic Cutting Roof Sheet Roll Forming Machine

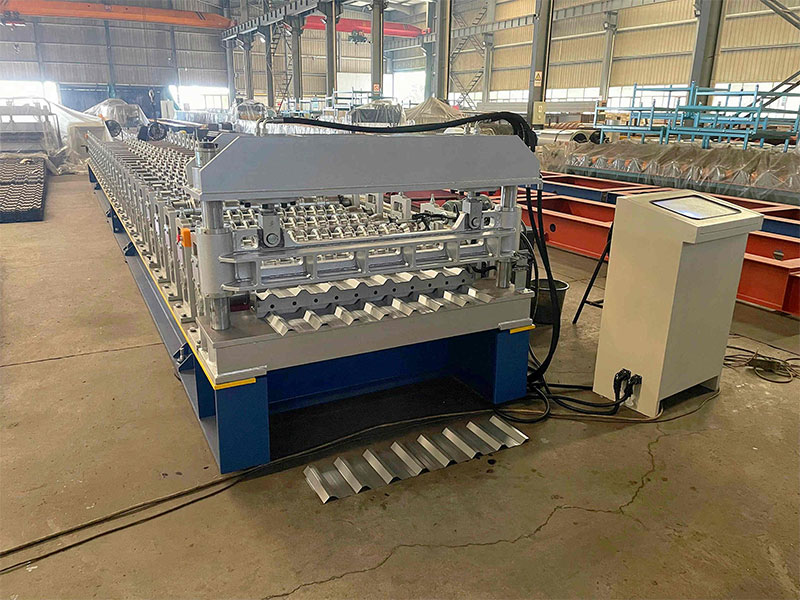

Hydraulic-Cutting-Roof-Sheet-Roll-Forming-Machine4
Hydraulic-Cutting-Roof-Sheet-Roll-Forming-Machine4

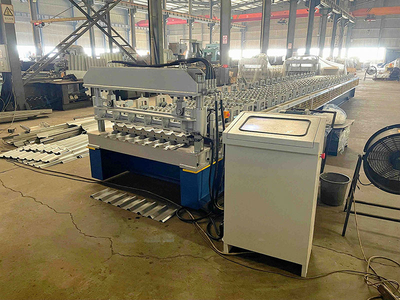

Hydraulic-Cutting-Roof-Sheet-Roll-Forming-Machine3

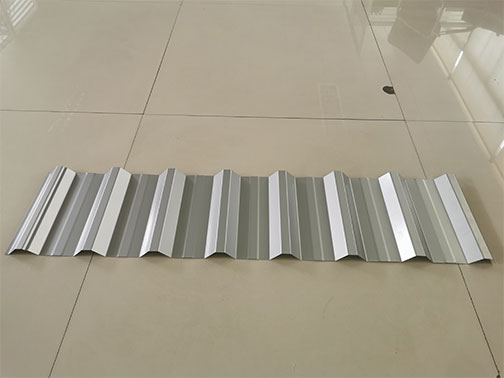

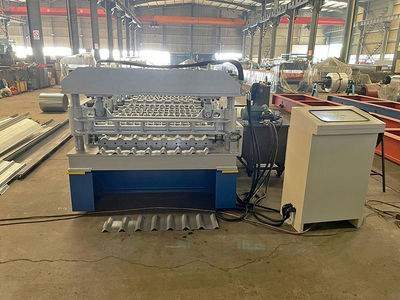

Hydraulic-Cutting-Roof-Sheet-Roll-Forming-Machine

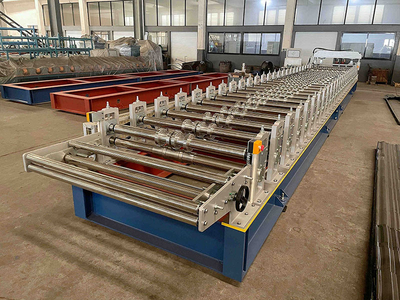

Hydraulic-Cutting-Roof-Sheet-Roll-Forming-Machine2

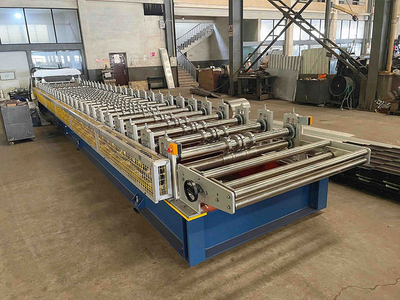

Hydraulic-Cutting-Roof-Sheet-Roll-Forming-Machine1
Get a Quote

Send us a message and we’ll get back to you shortly.

Main Technical Parameters

Machine Components & Specifications
No. Components Qty. Key Parameters
1 Manual Decoiler / Electric Decoiler 1 Set Capacity: 5 tons
Suitable Coil ID:508 mm
Suitable Coil Max OD:1000 mm

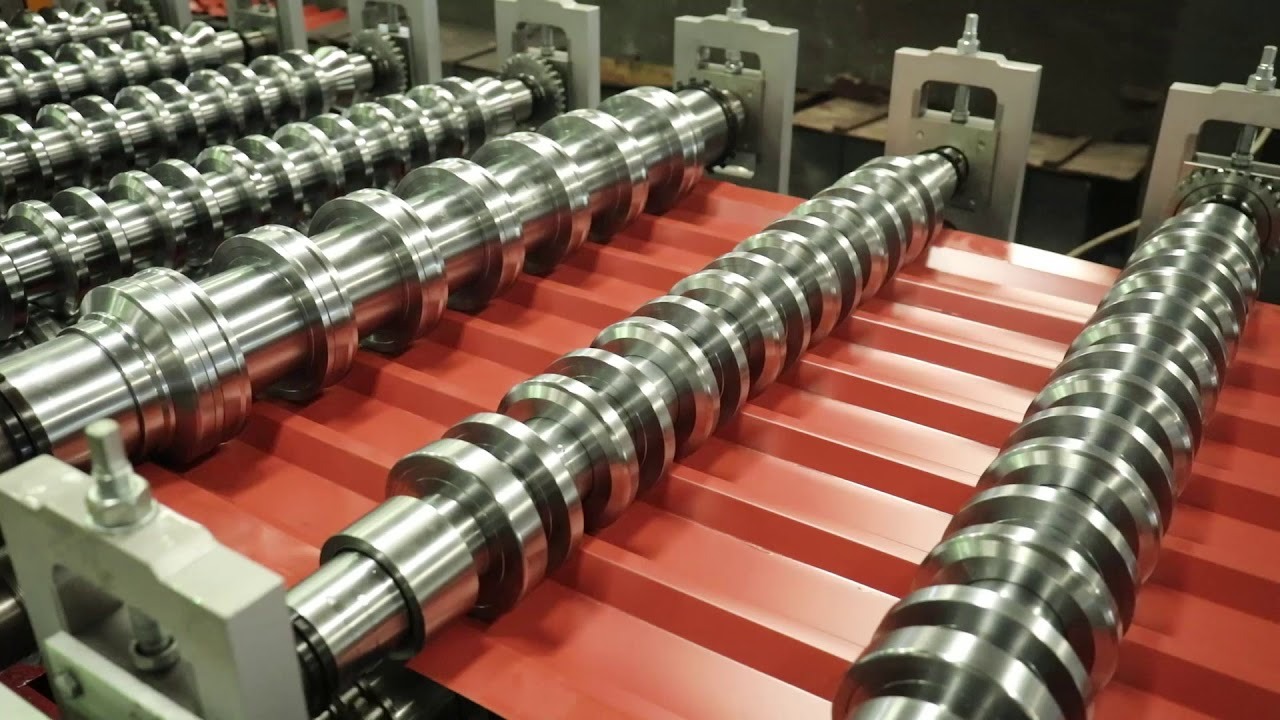

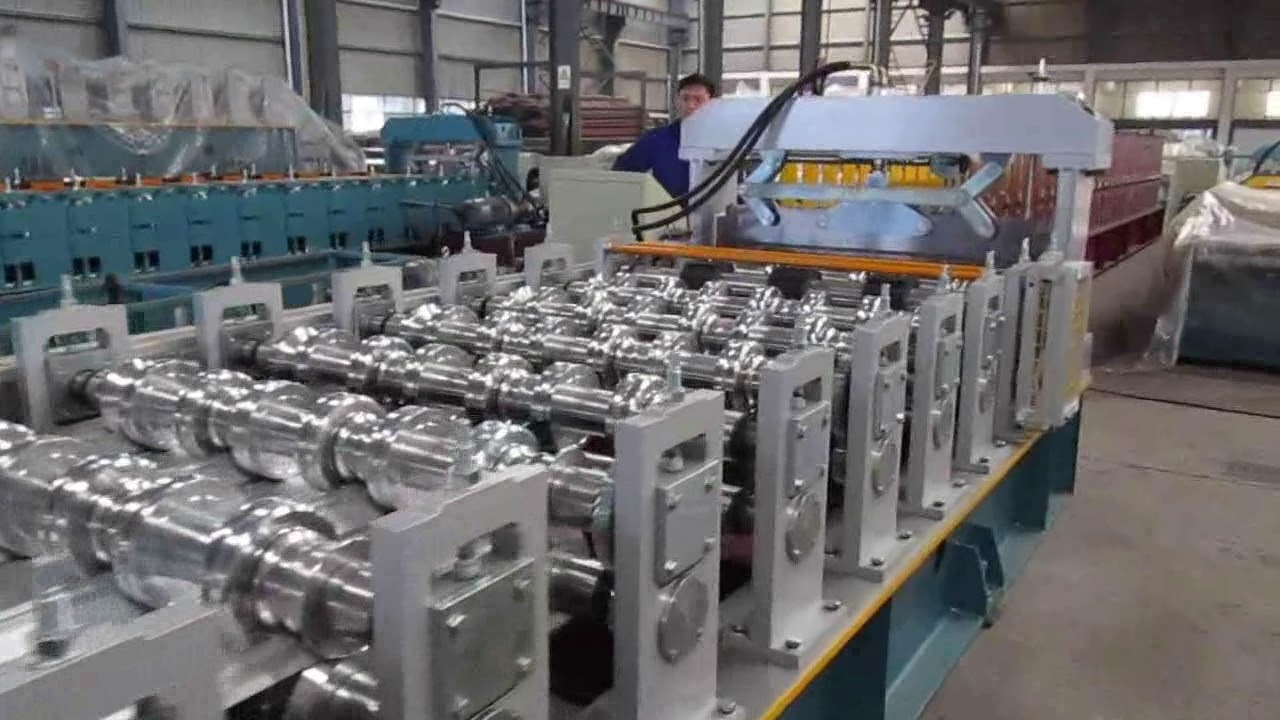

2 Roll-Forming System 1 Set Number of forming stands: approx. 26(Subject to the final design)
Motor Power: 1 x 7.5kW
Forming Speed: 30-35m/min
3 Hydraulic Stop-and-Cut Unit 1 Set
4 Hydraulic Power Unit 1 Set Power:1 x 5.5kW
5 PLC Control System    1 Set Delta (Taiwan) / Mitsubishi(Japan)
6 Run-Out Table(Non-powered) 2 Pcs Total is 3 meters
Coil Technical Parameters
No. Parameters Details
1 Raw Material PPGI
2 Material Thickness 0.3-0.8 mm
3 Coil Width Subject to the market requirements of the client
4 Yield Strength 235-350MPa
