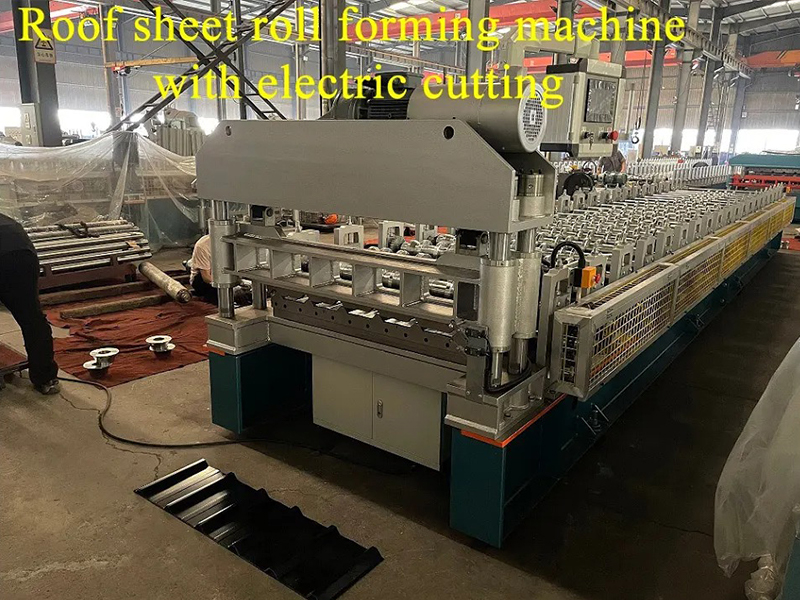

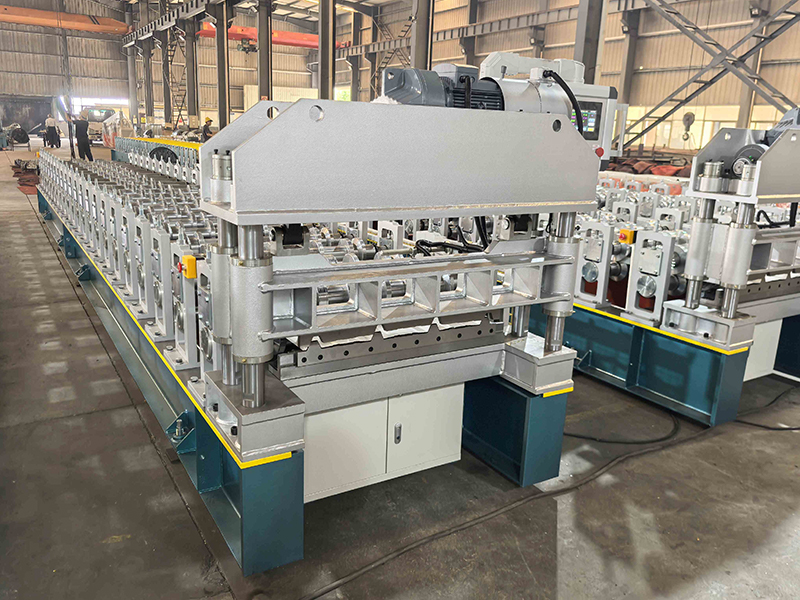

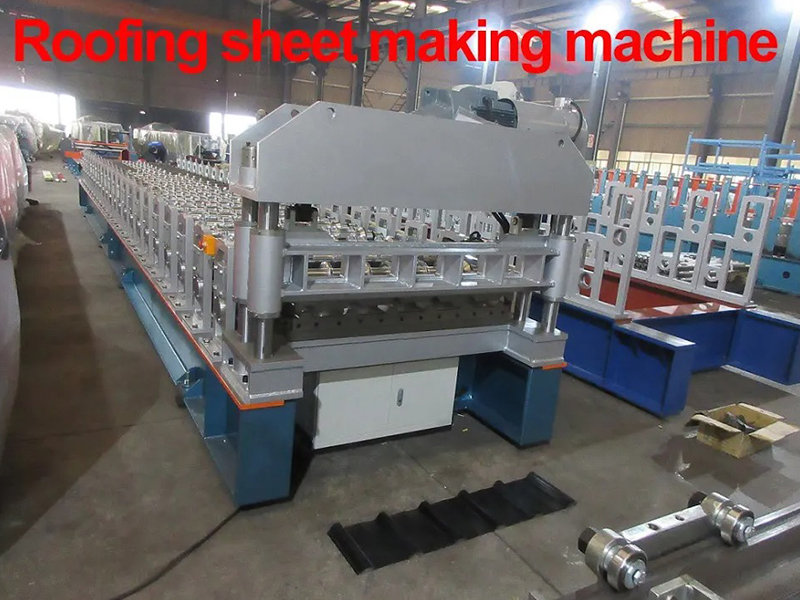

European Structure Roof Sheet Roll Forming Machine With Electric Cutting

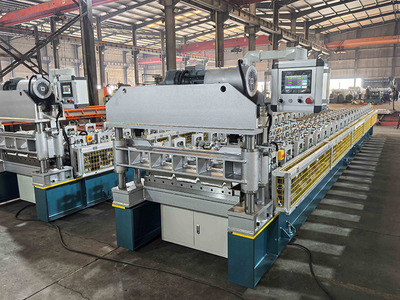

European Structure Roof Sheet Roll Forming Machine With Electric Cutting-2

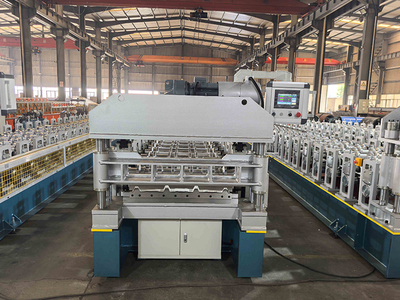

European Structure Roof Sheet Roll Forming Machine With Electric Cutting-3

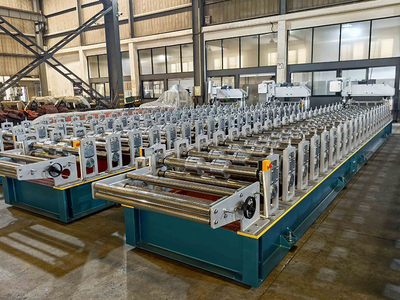

European Structure Roof Sheet Roll Forming Machine With Electric Cutting-4

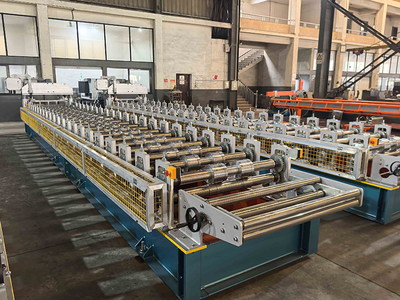

European Structure Roof Sheet Roll Forming Machine With Electric Cutting-5

Main Technical Parameters

Control The Quantity And Cutting Length AutomaticallyInput the production data(such as production quantity,Length,etc.)on the touch screen , machine can finish the set production plan automatically.One time buyer can set 20 batch data in the programme.

Machine Components & Specifications
No.	Components	Qty.	Key Parameters
1	Manual Decoiler / Electric Decoiler	1 Set	Capacity: 5 tons
			Suitable Coil ID:508 mm
			Suitable Coil Max OD:1000 mm
2	Roll-Forming System	1 Set	Number of forming stands: approx. 26(Subject to the final design)
			Motor Power: 5.5 kW
			Forming Speed: 30-35 m/min
3	Hydraulic Stop-and-Cut Unit	1 Set	Cutting Blade material: Cr12 MoV tool steel
4	Electric cutting Power	1 Set	Power: 3 kW
5	PLC Control System	1 Set	Delta (Taiwan) / Mitsubishi(Japan)
6	Run-Out Table(Non-powered)	2 Pcs	Total is 3 meters
7	weight	9400 kg
8	Size	11.651.71.7 m

Base Configuration

Manual Decoiler

Optional

Roll-Forming M/C

1 Set

Auto Electrical Cutting Device

1 Set

PLC Control System

1 Set

Product Rack (un-powered)

Stacker Optional

Line Working Processing Display

Guiding Sheet

Decoiling the Sheet

Roll Forming

Measure Length and Cutting the Sheet

Product to the Run Out Table
