Normal Structure Roof Sheet Roll Forming Machine With Electric Cutting

Normal Structure Roof Sheet Roll Forming Machine With Electric Cutting-1
Normal Structure Roof Sheet Roll Forming Machine With Electric Cutting-1

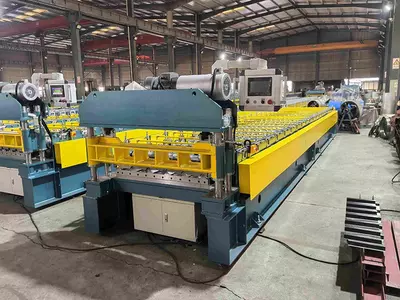

Normal Structure Roof Sheet Roll Forming Machine With Electric Cutting-2

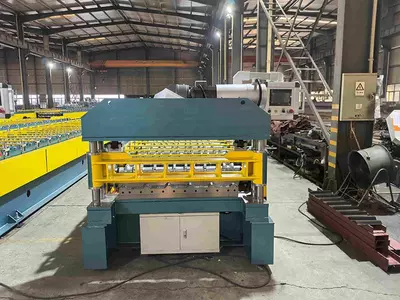

Normal Structure Roof Sheet Roll Forming Machine With Electric Cutting-3

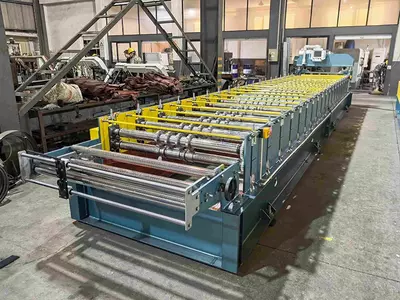

Normal Structure Roof Sheet Roll Forming Machine With Electric Cutting-4

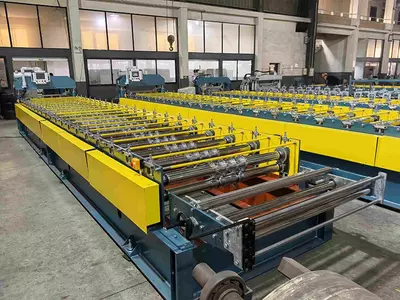

Normal Structure Roof Sheet Roll Forming Machine With Electric Cutting-5
Get a Quote

Send us a message and we’ll get back to you shortly.

Main Technical Parameters

Control The Quantity And Cutting Length AutomaticallyInput the production data(such as production quantity,Length,etc.)on the touch screen , machine can finish the set production plan automatically.One time buyer can set 20 batch data in the programme.
Machine Components & Specifications
No. Components Qty. Key Parameters
1 Manual Decoiler / Electric Decoiler 1 Set Capacity: 5 tons
Suitable Coil ID:508 mm
Suitable Coil Max OD:1000 mm
2 Roll-Forming System 1 Set Number of forming stands: approx. 20(Subject to the final design)
Motor Power: 5.5 kW
Forming Speed: 30-35 m/min
3 Hydraulic Stop-and-Cut Unit 1 Set Cutting Blade material: Cr12 MoV tool steel
4 Electric Cutting Power 1 Set Power: 3 kW
5 PLC Control System    1 Set Delta (Taiwan) / Mitsubishi(Japan)
6 Run-Out Table(Non-powered) 2 Pcs Total is 3 meters
7 weight 7340 kg
8 Size 9.4*1.65*1.5 m

Finished Roof Panel Display

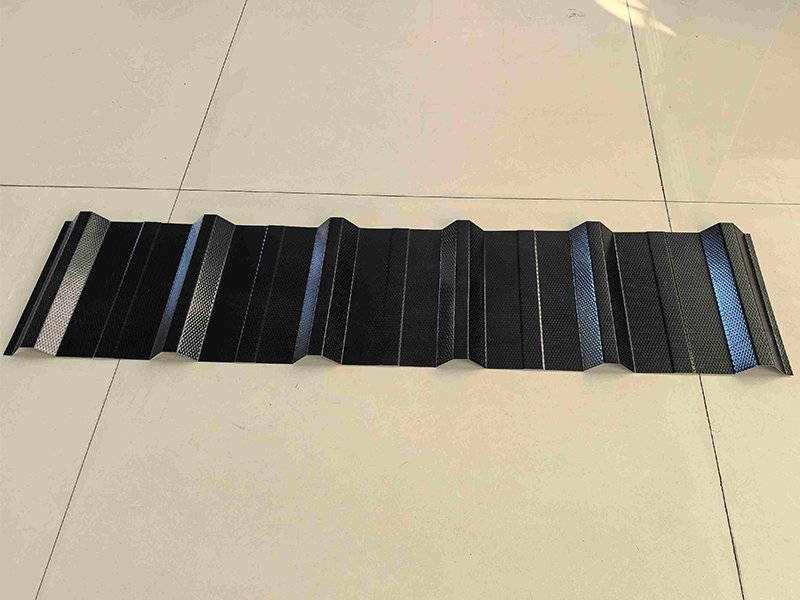

YX24-200-1000 roof product

YX24-200-1000 Roof
