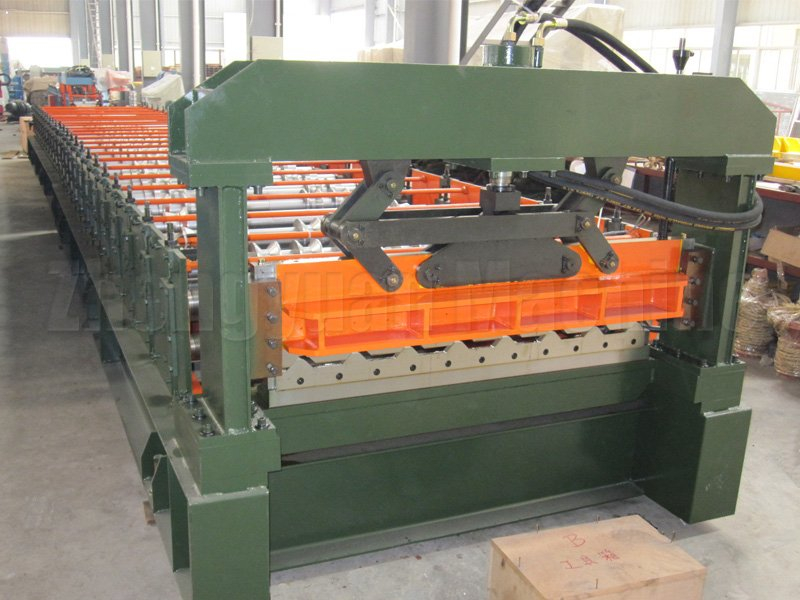

European Standard R101 Steel Roller Machine/R101 Roof Panel Roll Forming Machine with SGS

European Standard R101 Steel Roller Machine/R101 Roof Panel Roll Forming Machine with SGS
1.Forming speed: 20-25m per minute or 30-35m per minute .
2. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .
3. . Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.
4. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
5. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
6. People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.
7. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifetime services for our machines.

  • R101 Steel roller machine,European Standard R101 Steel Roller Machine,R101 Roof Panel Roll Forming Machine with SGS
  • Zhongyuan
  • 8455221000

TECHNICAL SPECIFICATIONS

Brief introduction of R101 Steel Roller Machine:

Technical Parameters of R101 Steel Roller Machine

Suitable material

Q235 color steel sheet;0.3-0.7mm;1220mm coil width

Forming speed

About 20- 25m/min

Power Requirement

Main motor power: 7.5 Kw(Depend on final design)

Hydraulic station power: 2.2Kw(Depend on final design)

Material of forming rollers

No.45 steel, plated with chrome on surface.

Material of cutter

Cr12 mould steel with quench treatment, HRC58-60

Material of shaft

High quality 45# steel, with heat treatment.

Roller grinder milling.

Shaft diameter

72mm

Controlling system

Mitsubishi PLC & converter

Total weight of machine

About 8500KGS

Machine's size

About 15m×1.8m× 1.5m (Depend on final design)

Shipping1x40GP container can load one machine

DESCRIPTION

Layout Drawing of R101 Steel Roller Machine

We are committed to producing high quality machinery:

Roll Forming System

Roller material is high grade No.45 forged steel plated with hard chrome, by digital- controlled procession.


Bearings inside rollers

Bearings inside the forming rollers to allow machine run with less loading, so that machine rollers not easy to be damaged to prolong machine life. More important, machine can get more precise sheet because of bearing designing.

Bearings-inside-rollers


3.
High Accuracy

1、Shaft material is No.45 steel with diameter 72mm, strong and durable.Shafts for rollers are tooled by grinding machine 2 times. Ensure product accuracy.

2、Finished shafts from grinding machine,rollers on these shafts can ensure final sheet accuracy.

roll forming high accuracy


4. Automatic & Easy Operate

Machine long life: Roller material is high grade No.45 forged steel,plated with hard chrome,processed by digital-controlled procession.

Mitsubishi PLC with touch screen. Friendly man-machine interaction.The system is simple to learn and easy to operate.

Automatic Operation:once you set quantity and length of product,machine will produce product automatically.

Automatic-Easy-Operate


Control Quality Well

Zhongyuan factory is a "All-in-house source" from raw material to the final high-precision forming machine. All are done in our factory. Quality and delivery time can be controlled here.

Simple to install and easy to maintain.

You only need to connect some tubes and wires in your factory. Video and manual will show you how to do.

Our experienced technicians can supply overseas service.


APPLICATION

Product application of R101 Steel Roller Machine

In order to satisfy various customer requirements, we design and manufacture R101 Steel Roller Machine in different specs, models and configurations.


R101 Steel Roller Machine
Application Example




PACKAGING

Packaging Details

1. One *40GP container for loading one set of machine with mechanical decoiler;

2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;

3.Spare parts and some small parts packed in plastic tooling box;

4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping.


Delivery Time

Machine ready within 60 days after getting 30% deposit and confirming contract details from buyer and sellers.


Product Inquiry

CONTACT US

Contact Us For More Roll Forming Machine Detailed Information

You can contact us either through phone number 0086-13867521382 within our working hours, or send an email to zhongyuanforming@hotmail.com, or send an inquiry form to us using "Inquiry Now" option. Our customer representatives will respond as soon as possible.
