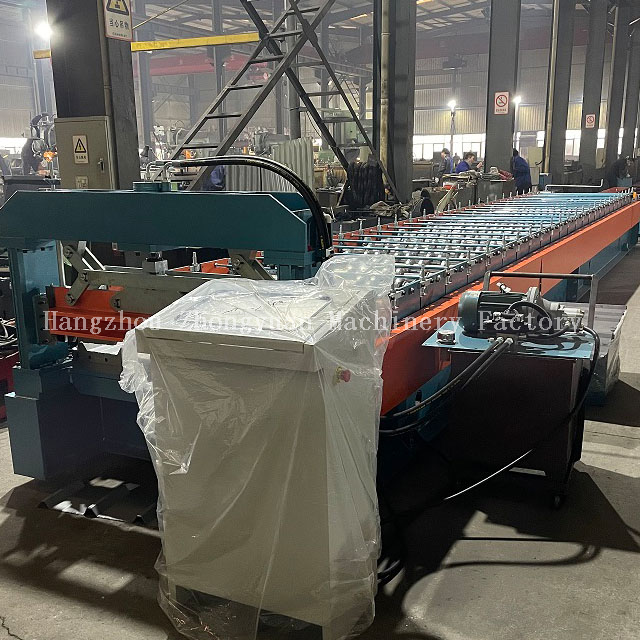

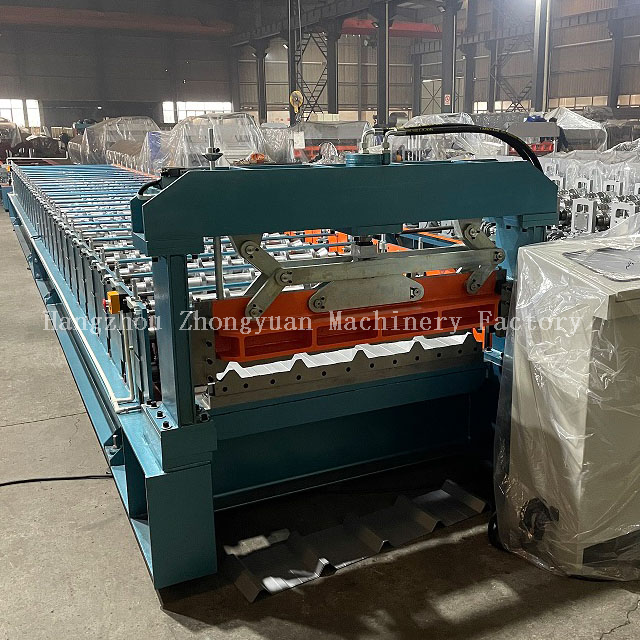

Roof panel roll forming machine

1.High Efficiency 20-25m per minute or 30-35m per minute .Produce 9600m per shift for 8 hours one day.
2.Long Life Machine :Rollers of machine are CNC machine tooled, plated with 0.05mm hard chrome on surface.Heat treatment for cutting frame to remove the steel stress, to avoid deformation. Cutting material is Cr12 mould steel with quenched treatment, all these processing steps ensure machine long life time.
3.High Precision :Shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
4.Automatic & Easy Operate :Safe and easy to operate with Mitsubishi PLC touch screen operating system.Friendly man-machine interaction.
5.Excellent Services :Technician can be sent to your factory to install the machine and train your workers. Engineers are able to service overseas.We supply lifetime services for our machines.
  • Zhongyuan 37-250-1000 roofing sheet roll forming machine

  • Zhongyuan

  • 8455221000

Availability:

TECHNICAL SPECIFICATIONS

Brief introduction of roof roll forming machine:

Technical Parameters of roof roll forming machine:

Suitable material

Color steel coils

Forming speed

Max. About 20-25m/min. (excluding the cutting time)

Power Requirement

Main motor power: 7.5Kw

Hydraulic station power: 2.2Kw

Suitable coil thickness

0.25 mm - 0.7 mm

Suitable coil width

1250mm

Suitable power

235Mpa or 34Ksi

Shearing blade material

Cr12 Mov.with quenched treatment.

Controlling system

Mitsubishi PLC and transducer (Japan)

Total weight of machine

8470KGS

Machine's size

11.5L*1.85W*1.6Hm

Shipping1x40GP container can load one machine


DESCRIPTION

1.Roll-Forming M/C:

1) The main frame of machine is welded separately and the outside wall is connected by screw after being rotoblasted on the surface.

2) Roller Material is high grade No.45 forged steel, with digital-controlled procession.

3) Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product.

4) The rollers are plated with hard chrome with thickness of 0.05mm on the surface after being machined by the exact machine tool. So that ensures long life of forming rollers.

5) Shaft diameter is 72mm.

6) Quantity of forming rollers : About 25 stations

7) 16A-1 Chain and gear move the line, motor drives. All working actions are controlled by Mitsubishi PLC electric cabinet automatically.

8) Suitable power voltage:380V/50Hz, 3 phase (can be designed according to buyer’s requirement)

9) Forming speed : Max20m/min (excluding in cutting time)

10)  Main machine motor power: about 7.5KW

11)  Total weight : about 8500kg

12)  Size of forming system: 10.5×1.7×1.5M (L×W×H)

forming system

roll forming machine

Tolled shafts

Tooled forming rollers

Bearings inside rollers




APPLICATION

Product application of roofing roll forming machine


In order to satisfy various customer requirements, we design and manufacture glazed roof wall roll forming machine in different specs, models and configurations.


Corrugated roof roll forming machine Application Example


PACKAGING

Packaging Details of roof roll forming machine


1. One *40GP container for loading one set of roof roll forming machine with mechanical decoiler;

2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;

3.Spare parts and some small parts packed in plastic tooling box;

4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping.


Delivery Time

Machine ready within 100 days after getting 30% deposit and confirming contract details from buyer and sellers.
