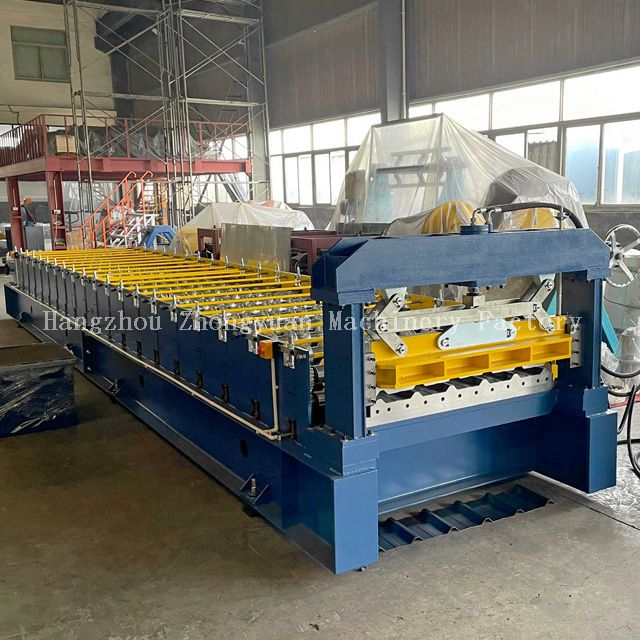

High productive roof panel roll forming machine

1.【High Efficiency】20-25m per minute or 30-35m per minute .Produce 9600m per shift for 8 hours one day.
2.【Long Life Machine】Rollers of machine are CNC machine tooled, plated with 0.05mm hard chrome on surface.Heat treatment for cutting frame to remove the steel stress, to avoid deformation. Cutting material is Cr12 mould steel with quenched treatment, all these processing steps ensure machine long life time.
3.【High Precision】Shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
4.【Automatic & Easy Operate】Safe and easy to operate with Mitsubishi PLC touch screen operating system.Friendly man-machine interaction.
5.【Excellent Services】Technician can be sent to your factory to install the machine and train your workers. Engineers are able to service overseas.We supply lifetime services for our machines.
  • Zhongyuan 24-200-1000 roofing machine

  • Zhongyuan

  • 8455221000



Brief introduction of roof roll forming machine:

Technical Parameters of roofing roll forming machine:

Machine model

1000 Roof Machine

Operation way

Automatic machine




36 Months




More 15 years life time



Material thickness

0.3 mm - 0.5 mm

Suiting material

Aluminum coils

Cutting material


Main motor


Forming rollers qty.

20 stations

Shafts diameter 72mm
Roller Material 45# Steel, plated chrome
Machine frame


Yield strength of material 235Mpa-350Mpa
Forming speed

about 20-25m/min

Transportation In Containers,suiting for sea and road transmission

Feeding width or coil width


Effective width 1000mm

Machine components of roof panel machine:

Manual decoiler

1 set(Capacity: 5 tons)

Roll-Forming M/C

1 set

Hydraulic Cutting

1 set

Hydraulic station

1 set

PLC Control System

1 set

Tool Box

1 set

Roof working processing display

Decoiling the sheet→Guiding sheet →Roll forming→Measure length and cutting the sheet→Product to the run out table

profile drawing


Components description of roof panel roll forming machine

1.High Accuracy Shafts

Solid shafts dia.72mm.

Solid steel shafts are being tooling twice with grinding machine to ensure final precision. Guarantee buyer get high accuracy sheet from Zhongyuan made machine.


2.Hard Forming rollers with high precision

Each forming roller use CNC machine to polish and machining into designed rollers shape,it can improve rollers accuracy.And planted 0.03-0.05mm hard chrome to make sure machine running more than 15years+ for you.

Zhongyuan rollers

3.Design bearings inside forming rollers

Design bearing inside the rollers to make machine run with less loading so that rollers not easy to damage.

Ensure the same speed between the rollers, no speed difference between rollers, improve the forming accuracy.

Bearings are helping to prolong machine life.


4.Auto Hydraulic Cutting Device

1)  Adopts post cutting, Stop to cut;

2)  The cutting blade material is Cr12 Mov. with quenched treatment.

3)  Adopts welded frame for good rigidity.

4)  Cutting frame has been heat treatment to avoid final product deformation. cutting length tolerance ±2mm.

5)  The power of cutting is provided by hydraulic station.

6)  The final product can be cut as per set length in PLC controller, and the length is automatically measured by encoder.  When final product reaches the set length, machine will stop to cut the product automatically. Finish this action, machine will run again continuously.

5.PLC Control System:

1) This system uses Mitsubishi PLC to control the all working actions. Production quantity and each piece length will be automatically measured. It is convenient to control the roll forming machine.

2) Mitsubishi converter adjusts speed technology, realize the automatic production.

3)  Touch screen is input and canceled the working data.

4)  Friendly man-machine interface system can be set batches to the workpiece, length, quantity, etc.

5)  Encoder count, having function of count and measuring length.

6)  Suitable power voltage: 380V/50HZ/3Phase (can be custom by client’s requirement).

System outer form reference:

plc control system


Product application of roll forming machine for roof

In order to satisfy various customer requirements, we design and manufacture corrugated roof roll forming machine in different specs, models and configurations.

Roof sheet making machine Application Example



Packaging Details of roof panel roll forming machine

1. One *40GP container for loading one set of roof panel machine with mechanical decoiler;

2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;

3.Spare parts and some small parts packed in plastic tooling box;

4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping.

Delivery Time

Machine ready within 100 days after getting 30% deposit and confirming contract details from buyer and sellers.



Steel Coils and Sandwich Panels
Contact Us Today


Contact Us For More Roll Forming Machine Detailed Information

You can contact us either through phone number 0086-13867521382 within our working hours, or send an email to zhongyuanforming@hotmail.com, or send an inquiry form to us using "Inquiry Now" option. Our customer representatives will respond as soon as possible.
