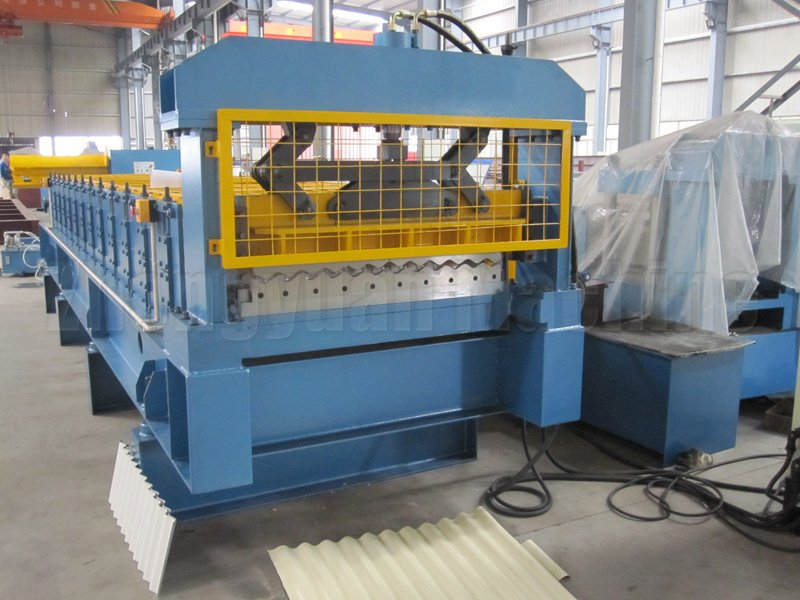

Corrugated Roll Forming Machine/Aluminium Long Span Corrugated Sheet Making Machine

Zhongyuan is leading manufacturer of Aluminium Long Span Corrugated Sheet Making Machine Roll Forming Machine, Roofing Roll Forming Machines high quality,good price & good Service.
All roll forming machines are made from raw material to ready machines in our factory, we do all-in house style. So that control machines quality and delivery time for buyer. We aim to win-win cooperation for long time with our each customer.

  • Corrugated roll forming machine
  • Zhongyuan
  • 8455221000

TECHNICAL SPECIFICATIONS

Brief introduction of Corrugated Roll Forming Machine/Aluminium Long Span Corrugated Sheet Making Machine:

Technical Parameters of Corrugated Roll Forming Machine

Suitable material

Q235 color steel sheet;0.3-0.6mm

Forming speed

About 20- 25m/min

Power Requirement

Main motor power: 7.5 Kw(Depend on final design)

Hydraulic station power: 2.2Kw(Depend on final design)

Material of forming rollers

No.45 steel, plated with chrome on surface.

Material of cutter

Cr12 mould steel with quench treatment, HRC58-60

Material of shaft

High quality 45# steel, with heat treatment.

Roller grinder milling.

Shaft diameter

72mm

Controlling system

Mitsubishi PLC & converter

Total weight of machine

About 7500KGS

Machine's size

About 15m×1.8m× 1.5m (Depend on final design)

Shipping1x40GP container can load one machine

DESCRIPTION

Layout Drawing of Box Roll Forming Machine

We are committed to producing high quality machinery:

Roll Forming System

1、Roller material is high grade No.45 forged steel plated with hard chrome, by digital- controlled procession.

2、40mm thickness wall for forming system to ensure machine 15 years long life.

roll forming system-2


High Accuracy

1、Shaft material is No.45 steel with diameter 72mm, strong and durable.Shafts for rollers are tooled by grinding machine 2 times. Ensure product accuracy.

2、Finished shafts from grinding machine,rollers on these shafts can ensure final sheet accuracy.

roll forming high accuracy


Automatic & Easy Operate

Machine long life: Roller material is high grade No.45 forged steel,plated with hard chrome,processed by digital-controlled procession.

Mitsubishi PLC with touch screen. Friendly man-machine interaction.The system is simple to learn and easy to operate.

Automatic Operation:once you set quantity and length of product,machine will produce product automatically.

Automatic-Easy-Operate


Control Quality Well

Zhongyuan factory is a "All-in-house source" from raw material to the final high-precision forming machine. All are done in our factory. Quality and delivery time can be controlled here.

Simple to install and easy to maintain.

You only need to connect some tubes and wires in your factory. Video and manual will show you how to do.

Our experienced technicians can supply overseas service.


APPLICATION

Product application of Corrugated Roll Forming Machine

In order to satisfy various customer requirements, we design and manufacture Corrugated Roll Forming Machine in different specs, models and configurations


PACKAGING

Packaging Details


1. One *40GP container for loading one set of machine with mechanical decoiler;

2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;

3.Spare parts and some small parts packed in plastic tooling box;

4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping.


Delivery Time

Machine ready within 60 days after getting 30% deposit and confirming contract details from buyer and sellers.
