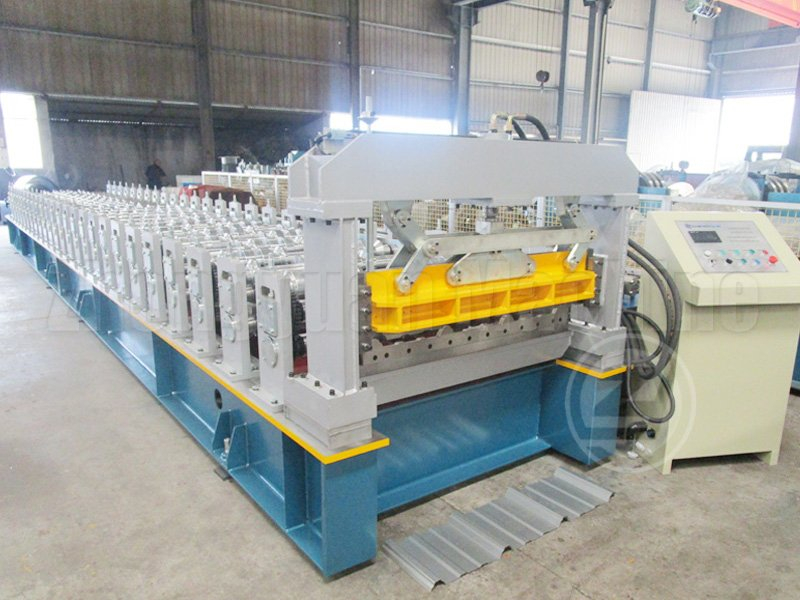

Colombia Metal Rolling Forming Machine/Metal roof roll forming machine

All Metal roof roll forming machines are made from raw material to ready machines in our factory, we do all-in house style. So that control machines quality and delivery time for buyer. We aim to win-win cooperation for long time with our each customer.
  • Colombia Metal rolling machine

  • Zhongyuan

  • 8455221000

Availability:

TECHNICAL SPECIFICATIONS

Brief introduction of Colombia Metal Rolling Machine/

Metal roof roll forming machine:

Technical Parameters of Colombia Metal Rolling Machine

Suitable material

Q235 color steel coils;0.3-0.7mm;1000&1250mm coil width

Forming speed

About 20- 25m/min

Power Requirement

Main motor power: 7.5 Kw(Depend on final design)

Hydraulic station power: 2.2Kw(Depend on final design)

Material of forming rollers

No.45 steel, plated with chrome on surface.

Material of cutter

Cr12 mould steel with quench treatment, HRC58-60

Material of shaft

High quality 45# steel, with heat treatment.

Roller grinder milling.

Shaft diameter

72mm

Controlling system

Mitsubishi PLC & converter

Total weight of machine

About 9500KGS

Machine's size

About 15m×1.8m× 1.5m (Depend on final design)

Shipping1x40GP container can load one machine

DESCRIPTION

Layout Drawing of Colombia Metal Rolling Machine

We are committed to producing high quality machinery:

Roll Forming System

1、Roller material is high grade No.45 forged steel plated with hard chrome, by digital- controlled procession.

2、40mm thickness wall for forming system to ensure machine 15 years long life.

rollformingsystem

Bearings inside rollers

Bearings inside the forming rollers to allow machine run with less loading, so that machine rollers not easy to be damaged to prolong machine life. More important, machine can get more precise sheet because of bearing designing.

Bearings-inside-rollers



High Accuracy

1、Shaft material is No.45 steel with diameter 72mm, strong and durable.Shafts for rollers are tooled by grinding machine 2 times. Ensure product accuracy.

2、Finished shafts from grinding machine,rollers on these shafts can ensure final sheet accuracy.

roll forming high accuracy


Automatic & Easy Operate

Machine long life: Roller material is high grade No.45 forged steel,plated with hard chrome,processed by digital-controlled procession.

Mitsubishi PLC with touch screen. Friendly man-machine interaction.The system is simple to learn and easy to operate.

Automatic Operation:once you set quantity and length of product,machine will produce product automatically.

Automatic-Easy-Operate


Control Quality Well

Zhongyuan factory is a "All-in-house source" from raw material to the final high-precision forming machine. All are done in our factory. Quality and delivery time can be controlled here.

Simple to install and easy to maintain.

You only need to connect some tubes and wires in your factory. Video and manual will show you how to do.

Our experienced technicians can supply overseas service.


APPLICATION

Product application of Colombia Metal Rolling Machine

In order to satisfy various customer requirements, we design and manufacture Colombia Metal Rolling Machine in different specs, models and configurations.


Colombia Metal Rolling Machine Application Example




PACKAGING


Packaging Details


1. One *40GP container for loading one set of machine with mechanical decoiler;

2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;

3.Spare parts and some small parts packed in plastic tooling box;

4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping.


Delivery Time

Machine ready within 60 days after getting 30% deposit and confirming contract details from buyer and sellers.
