Automatic CZ Changeable Purlin Roll Forming Machine
Home » Products » Metal Roll Forming Machine » Purlin Roll Forming Machine » Automatic CZ Changeable Purlin Roll Forming Machine

PRODUCTS DETAILS

Share to:

Automatic CZ Changeable Purlin Roll Forming Machine

【High Precision】Shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
【Automatic & Easy Operate】Safe and easy to operate with Mitsubishi PLC touch screen operating system.Friendly man-machine interaction.
【Excellent Services】Technician can be sent to your factory to install the machine and train your workers. Engineers are able to service overseas.We supply lifetime services for our machines.

  • Automatic CZ Changeable Purlin Machine
  • Zhongyuan
  • 8455221000

TECHNICAL SPECIFICATIONS

Brief introduction of CZ changeable Purlin Forming Machine  :

Technical Parameters of Automatic CZ Changeable Purlin Machine

Suitable material

Cold-rolled steel strip and heat-treated galvanized steel strip

Thickness of raw material

1.5-3.2mm (235-345Mpa)

Size of C purlin 100-305mm adjustable  (special size available)
Material of rollerCr12 mould steel being quenched treatment,HRC58-60
Material of cutter blade& punching dieCr12 mould steel with quenched treatment, HRC58-60

Power Requirement

Main motor power: 4x4 Kw(Depend on final design)

Hydraulic station power: 2.2Kw(Depend on final design)

Transmission system

Gear box transmission

Material of shaft

High quality 45# steel, with heat treatment.

Roller grinder milling.

Shaft diameter

82mm

Controlling system

Mitsubishi PLC & converter

Quantity of rollersAbout 16 stations for main rollers

Total weight of machine

About 23000KGS

Machine's size

About 17.5m×2.1m× 1.6m

VIDEO

DESCRIPTION

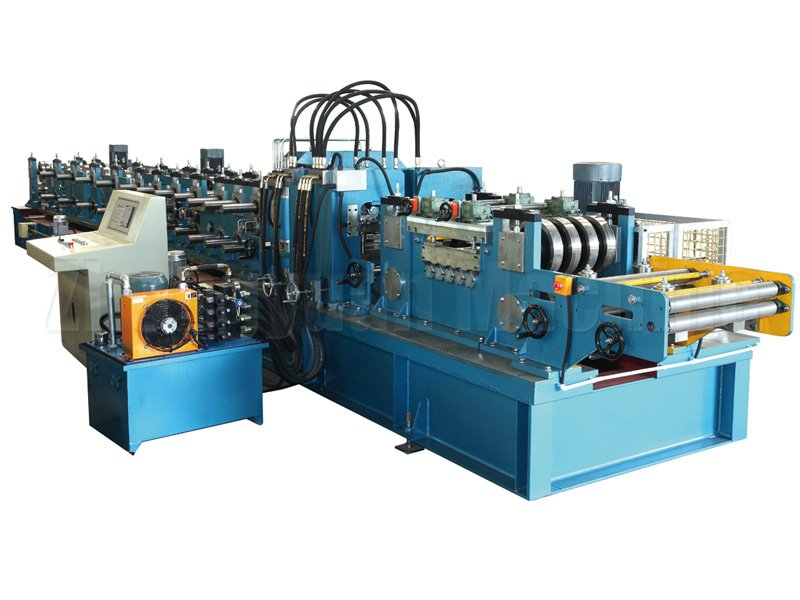

CZ changeable Purlin Forming Machine is an equipment that produces C/Z shaped steel channels continuously out of galvanized or cold rolled steel strips from feeding, punching for holes, bending and cutting.

CZ Purlin Forming Machine can do both C and Z shape purlin with following different size, automatic adjustment. Special sizes of purlin can be designed in our company.


cz


Gearbox transmission system

Gearbox transmission system moves the line to ensure machine strong enough to run raw material thickness 3.2mm

Gearbox-transmission-system



Quick change system

1、Change size of purlin automatically. People key in and then the control system adjusts the different sizes automatically.

2、Change C to Z type,turn the turnover device manually. Within 15 minutes finish change from C to Z  purlin.

Change-size-of-purlin-automatically

Layout drawing of Automatic C Purlin Forming Machine

CZLAYOUT


We are committed to producing high quality machinery:

Automatic & Easy Operate

Mitsubishi PLC with touch screen. Friendly man-machine interaction.The system is simple to learn and easy to operate.

Automatic Operation:once you set quantity and length of product,machine will produce product automatically.

Automatic-Easy-Operate


Control Quality Well

Zhongyuan factory is a "All-in-house source" from raw material to the final high-precision forming machine. All are done in our factory. Quality and delivery time can be controlled here.

Simple to install and easy to maintain.

You only need to connect some tubes and wires in your factory. Video and manual will show you how to do.

Our experienced technicians can supply overseas service.


APPLICATION

Product application of  Automatic CZ Changeable Purlin Machine


In order to satisfy various customer requirements, we design and manufacture Automatic CZ Changeable Purlin Machine  in different specs, models and configurations.


Automatic CZ Changeable Purlin Machine Application Example




PACKAGING

Packaging Details


1. One *40GP & One X20GP container for loading one set of machine.

2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;

3.Spare parts and some small parts packed in plastic tooling box;

4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping.

Delivery Time

Machine ready within 80 days after getting 30% deposit and confirming contract details from buyer and sellers.


Product Inquiry

CONTACT US

Contact Us For More Roll Forming Machine Detailed Information

You can contact us either through phone number 0086-13867521382 within our working hours, or send an email to zhongyuanforming@hotmail.com, or send an inquiry form to us using "Inquiry Now" option. Our customer representatives will respond as soon as possible.
