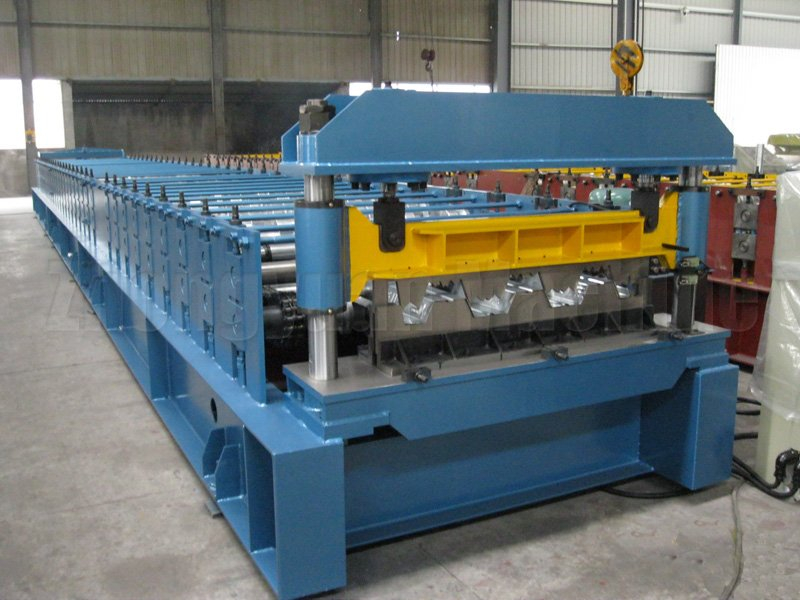

Metal Former for Roll Formed Steel

All roll forming machines are made from raw material to ready machines in our factory, we do all-in house style. So that control machines quality and delivery time for buyer. We aim to win-win cooperation for long time with our each customer.
  • Metal Former for Roll Formed Steel

  • Zhongyuan

  • 8455221000

Availability:

TECHNICAL SPECIFICATIONS

Brief introduction of Roll Formed Steel:

Technical Parameters of Roll Formed Steel

Suitable material

Q235 color steel sheet;0.8-1.2mm

Forming speed

About 18- 20m/min

Power Requirement

Main motor power: 11X2 Kw(Depend on final design)

Hydraulic station power: 5.5Kw(Depend on final design)

Material of forming rollers

No.45 steel, plated with chrome on surface.

Material of cutter

Cr12 mould steel with quench treatment, HRC58-60

Material of shaft

High quality 45# steel, with heat treatment.

Roller grinder milling.

Shaft diameter

82mm

Controlling system

Mitsubishi PLC & converter

Total weight of machine

About 16500KGS

Machine's size

About 26m×1.8m× 1.5m (Depend on final design)

Shipping

1x40GP and 1X20GP containers can load one machine


DESCRIPTION

Product application: The metal deck produced by floor deck forming machine is used as decking of building; It has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight. With the same bearing capacity, it economized steel and cuts down investment accordingly.

Roll Forming System

1、Roller material is high grade No.45 forged steel plated with hard chrome, by digital- controlled procession.

2、Strong wall connection for forming system to ensure machine 15 years long life.


Bearings inside rollers

Bearings inside the forming rollers to allow machine run with less loading, so that machine rollers not easy to be damaged to prolong machine life. More important, machine can get more precise sheet because of bearing designing.

Bearings-inside-rollers


High Accuracy

1、Shaft material is No.45 steel with diameter 72mm, strong and durable.Shafts for rollers are tooled by grinding machine 2 times. Ensure product accuracy.

2、Finished shafts from grinding machine,rollers on these shafts can ensure final sheet accuracy.

roll forming high accuracy


Automatic & Easy Operate

Mitsubishi PLC with touch screen. Friendly man-machine interaction.The system is simple to learn and easy to operate.

Automatic Operation:once you set quantity and length of product,machine will produce product automatically.

Automatic-Easy-Operate


Control Quality Well

Zhongyuan factory is a "All-in-house source" from raw material to the final high-precision forming machine. All are done in our factory. Quality and delivery time can be controlled here.

Simple to install and easy to maintain.

You only need to connect some tubes and wires in your factory. Video and manual will show you how to do.

Our experienced technicians can supply overseas service.


APPLICATION

Product application of Roll Formed Steel


In order to satisfy various customer requirements, we design and manufacture Roll Formed Steel in different specs, models and configurations.


Roll Formed Steel Application Example



PACKAGING

Packaging Details


1. One *40GP and one X20GP containers for loading one set of machine with mechanical decoiler;

2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;

3.Spare parts and some small parts packed in plastic tooling box;

4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping.


Delivery Time


Machine ready within 70 days after getting 30% deposit and confirming contract details from buyer and sellers.
