Q235 color steel sheet;0.8-1.2mm
About 18- 20m/min
Main motor power: 11X2 Kw(Depend on final design)
Hydraulic station power: 5.5Kw(Depend on final design)
Material of forming rollers
No.45 steel, plated with chrome on surface.
Material of cutter
Cr12 mould steel with quench treatment, HRC58-60
Material of shaft
High quality 45# steel, with heat treatment.
Roller grinder milling.
Mitsubishi PLC & converter
Total weight of machine
About 26m×1.8m× 1.5m (Depend on final design)
1x40GP and 1X20GP containers can load one machine
Roll Forming System
1、Roller material is high grade No.45 forged steel plated with hard chrome, by digital- controlled procession.
2、Strong wall connection for forming system to ensure machine 15 years long life.
Bearings inside rollers
Bearings inside the forming rollers to allow machine run with less loading, so that machine rollers not easy to be damaged to prolong machine life. More important, machine can get more precise sheet because of bearing designing.
1、Shaft material is No.45 steel with diameter 72mm, strong and durable.Shafts for rollers are tooled by grinding machine 2 times. Ensure product accuracy.
2、Finished shafts from grinding machine,rollers on these shafts can ensure final sheet accuracy.
Automatic & Easy Operate
Mitsubishi PLC with touch screen. Friendly man-machine interaction.The system is simple to learn and easy to operate.
Automatic Operation:once you set quantity and length of product,machine will produce product automatically.
Control Quality Well
Zhongyuan factory is a "All-in-house source" from raw material to the final high-precision forming machine. All are done in our factory. Quality and delivery time can be controlled here.
Simple to install and easy to maintain.
You only need to connect some tubes and wires in your factory. Video and manual will show you how to do.
Our experienced technicians can supply overseas service.

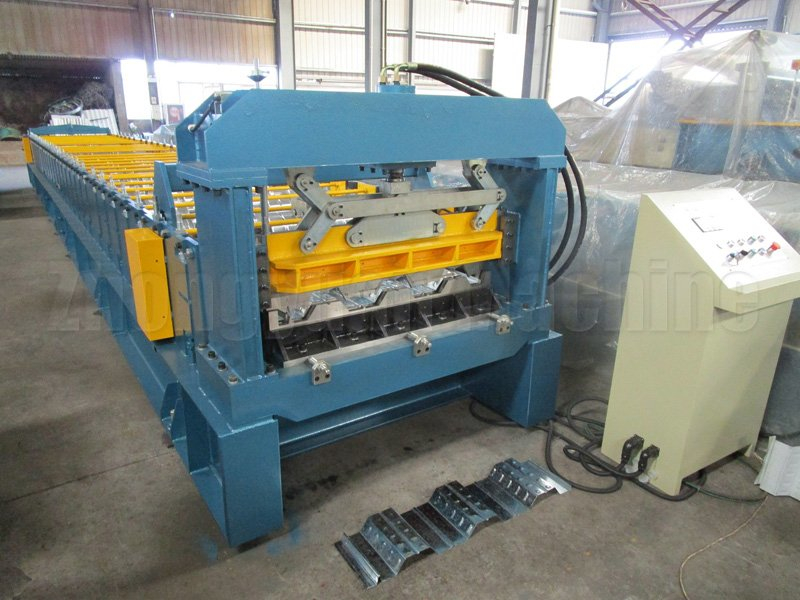

Product application of Metal Deck Roll Forming Machine
In order to satisfy various customer requirements, we design and manufacture Metal Deck Roll Forming Machine in different specs, models and configurations.
Metal Deck Roll Forming Machine Application Example
1. One *40GP and one X20GP containers for loading one set of machine with mechanical decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3.Spare parts and some small parts packed in plastic tooling box;
4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping.
Machine ready within 70 days after getting 30% deposit and confirming contract details from buyer and sellers.
