【High Efficiency】6m per minute.Produce 2880m per shift for 8 hours one day.
【Long Life Machine】Rollers of machine are CNC machine tooled, plated with 0.05mm hard chrome on surface.Heat treatment for cutting frame to remove the steel stress, to avoid deformation. Cutting material is Cr12 mould steel with quenched treatment, all these processing steps ensure machine long life time.
【High Precision】Shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
【Automatic & Easy Operate】Safe and easy to operate with Mitsubishi PLC touch screen operating system.Friendly man-machine interaction.
【Excellent Services】Technician can be sent to your factory to install the machine and train your workers. Engineers are able to service overseas.We supply lifetime services for our machines.

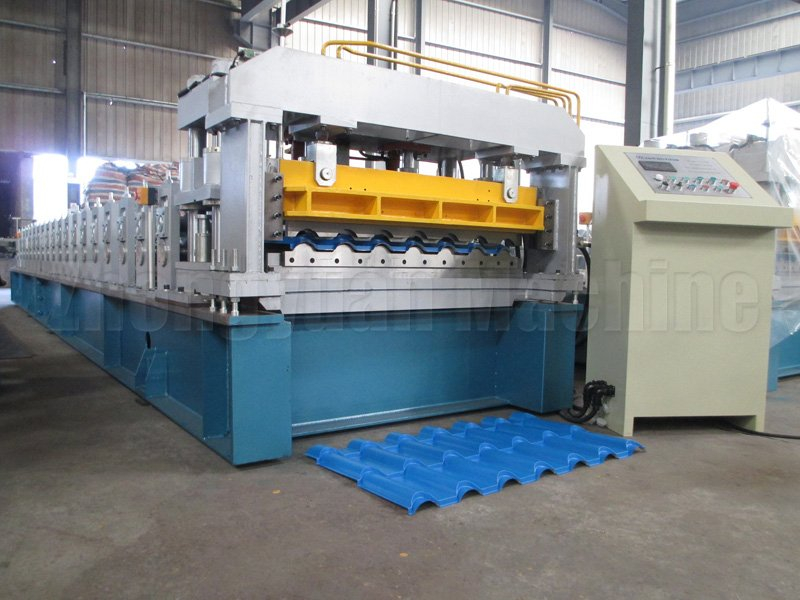

Metal step roof tiles produced by Aluminium Tile Roll Forming Machine from high quality prepainted sheets most time apply as roofing on container house , light steel villas or prefabricated buildings.
PPGI coils & Aluminium coils ;0.5-0.6mm
Adjustable according to requirement (>=250mm)
Main motor power: 5.5 Kw(Depend on final design)
Hydraulic station power: 5.5Kw(Depend on final design)
Material of forming rollers
No.45 steel, plated with chrome on surface.
Material of cutter,pressing die
Cr12 mould steel with quench treatment, HRC58-60
Material of shaft
High quality 45# steel, Dia. is 72mm.
Roller grinder milling.
Mitsubishi PLC & converter
Total weight of machine
About 18m×1.8m× 1.5m (Depend on final design)
Roll Forming System
1、Roller material is high grade No.45 forged steel plated with hard chrome, by digital- controlled procession.
2、40mm thickness wall for forming system to ensure machine 15 years long life.
1、Shaft material is No.45 steel with diameter 72mm, strong and durable.Shafts for rollers are tooled by grinding machine 2 times. Ensure product accuracy.
2、Finished shafts from grinding machine,rollers on these shafts can ensure final sheet accuracy.
Hydraulic system，Designed with accumulator to accumulate energy and cooling fan to cool hydraulic system, so that ensure the machine can run to produce 6m per minute stably. 2880m per shift one day(8 work hours).
Automatic & Easy Operate
Machine long life: Roller material is high grade No.45 forged steel,plated with hard chrome,processed by digital-controlled procession.
Mitsubishi PLC with touch screen. Friendly man-machine interaction.The system is simple to learn and easy to operate.
Automatic Operation:once you set quantity and length of product,machine will produce product automatically.
Control Quality Well
Zhongyuan factory is a "All-in-house source" from raw material to the final high-precision forming machine. All are done in our factory. Quality and delivery time can be controlled here.
Simple to install and easy to maintain.
You only need to connect some tubes and wires in your factory. Video and manual will show you how to do.
Our experienced technicians can supply overseas service.
Due to its simple operation,Aluminium Tile Roll Forming Machine is widely used in the construction of steel structure enclosures, warehouse, workshop, cold storages, and mobile buildings.
In order to satisfy various customer requirements, we design and manufacture Aluminium Tile Roll Forming Machine in different specs, models and configurations.
Aluminium Tile Roll Forming Machine Application Example
1. One *40GP container for loading one set of machine with mechanical decoiler;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3.Spare parts and some small parts packed in plastic tooling box;
4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping.
Machine ready within 60 days after getting 30% deposit and confirming contract details from buyer and sellers.
