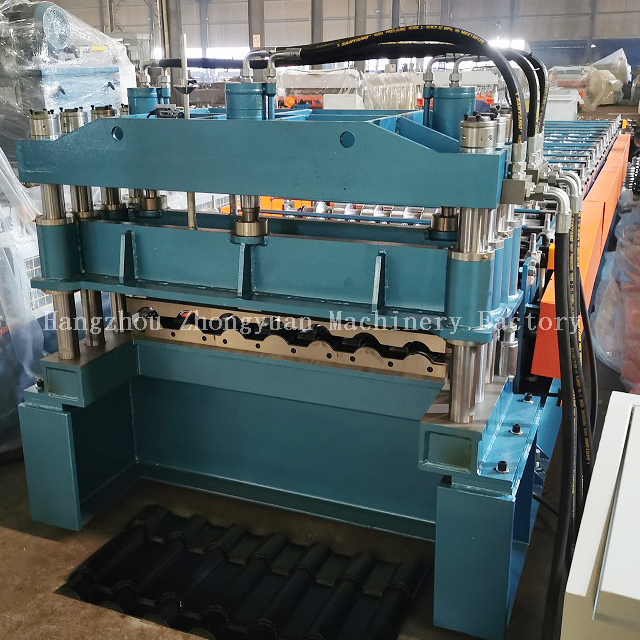

Corrugated tile roll forming machine metal roof sheet metrocopo tile roll forming machine

Glazed tile roll forming machine is mainly used to produce different kinds of panel. The color steel tile produced by this machine look beautiful, elegant and noble. It is a very welcomed modern building material with better anti-press and anti-bending performance, and is widely used in the building of modern factories, civil-construction etc.
  • Zhongyuan 28-160-960 glazed metrocopo tile forming machine

  • Zhongyuan

  • 8455221000

Availability:

TECHNICAL SPECIFICATIONS

Brief introduction of glazed metrocopo tile roll forming machine:

Technical Parameters of metrocopo tile roofing roll forming machine:

Suitable material

Aluminum steel sheet / Color steel sheet

Forming speed

About 5-6m/min

Power Requirement

Main motor power: 5.5Kw

Hydraulic station power: 5.5Kw

Suitable coil thickness

0.5 mm - 0.6 mm

Suitable coil width

1200mm

Suitable power

380V/3Phase/50HZ

Shearing blade material

Cr12Mov. with quenched treatment

Controlling system

Mitsubishi PLC and transducer (Japan)

Total weight of machine

8655KGS

Machine's size

9.0x1.65x1.6m (L*W*H)

Shipping1x40GP container can load one machine


DESCRIPTION

1.Roll forming M/C

1) The main frame of machine is welded separately and the outside wall is connected by screw after being rotoblasted on the surface.

2)  Roller Material is high grade No.45 forged steel, with digital-controlled procession.

3) Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product.

4) The rollers are plated with hard chrome with thickness of 0.05mm on the surface after being machined by the exact machine tool. So that ensures long life of forming rollers.

5) Shaft diameter is 72mm.

6) Quantity of forming rollers: About 17 stations

7) Chain and gear move the line, motor drives. All working actions are controlled by Mitsubishi PLC electric cabinet automatically.

8) Suitable power voltage:380V/50Hz, 3 phase (can be designed according to buyer’s requirement)

9) Working speed : about 5-6m/min (including in cutting & pressing time)

10) Main machine motor power: about 5.5KW (Depend on final design)

11)  Total weight : about 9500kg

12)  Size of Forming System: 9.0x1.65x1.6M (LxWxH) (Depend on final design)

Forming Rollers

Tolled shafts


APPLICATION

Product application of roofing metrocopo tile roll forming machine


In order to satisfy various customer requirements, we design and manufacture glazed metrocopo tile roll forming machine in different specs, models and configurations.


Metal metrocopo tile roof roll forming machine Application Example


PACKAGING

Packaging Details of glazed metrocopo tile roof panel roll forming machine


1. One *40GP container for loading one set of roof metrocopo tile roll forming machine with mechanical decoiler;

2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;

3.Spare parts and some small parts packed in plastic tooling box;

4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping.


Delivery Time

Machine ready within 100 days after getting 30% deposit and confirming contract details from buyer and sellers.
