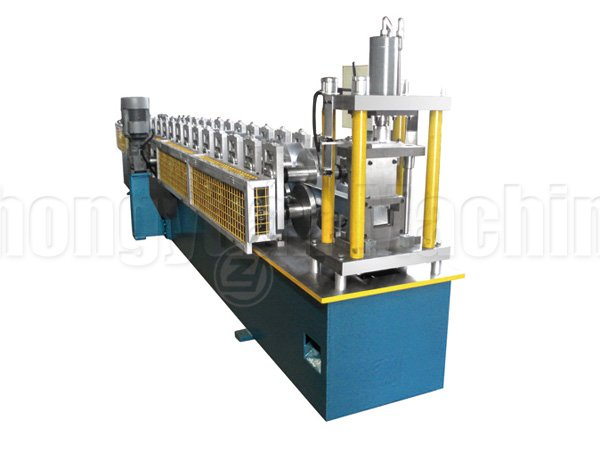

Stud And Track Roll Forming Machine

TECHNICAL SPECIFICATIONS

Brief introduction of Stud And Track Forming Machine:

Technical Parameters of Stud And Track Forming Machine

Suitable material

Cold-rolled steel strip and heat-treated galvanized steel strip

Thickness of raw material

0.5-0.6mm (235-345Mpa)

Material of roller45# steel being quenched treatment
Material of cutter blade& punching dieCr12 mould steel with quenched treatment, HRC58-60

Power Requirement

Main motor power: 5.5Kw(Depend on final design)

Hydraulic station power: 5.5Kw(Depend on final design)

Material of shaft

High quality 45# steel, with heat treatment.

Roller grinder milling.

Forming speedAbout 20m/min
Diameter of shaft for rollers55mm

Controlling system

Mitsubishi PLC & converter

Quantity of rollersAbout 15 stations for main rollers

Total weight of machine

About 6500KGS

Machine's size

About 15m×1.7m× 1.4m


DESCRIPTION

We are committed to producing high quality machinery:


Forming system showing:

Forming-system Forming-system

High Accuracy

1、Shaft material is No.45 steel with diameter 55mm, strong and durable.Shafts for rollers are tooled by grinding machine 2 times. Ensure product accuracy.

2、Finished shafts from grinding machine,rollers on these shafts can ensure final sheet accuracy.

roll forming high accuracy


High Efficiency

Production speed: 20/min.

9600m per shift one day(8 hours) .


Automatic & Easy Operate

Machine long life: Roller material is high grade No.45 forged steel,plated with hard chrome,processed by digital-controlled procession.

Mitsubishi PLC with touch screen. Friendly man-machine interaction.The system is simple to learn and easy to operate.

Automatic Operation:once you set quantity and length of product,machine will produce product automatically.

Automatic-Easy-Operate


Control Quality Well

Zhongyuan factory is a "All-in-house source" from raw material to the final high-precision forming machine. All are done in our factory. Quality and delivery time can be controlled here.

Simple to install and easy to maintain.

You only need to connect some tubes and wires in your factory. Video and manual will show you how to do.

Our experienced technicians can supply overseas service.


APPLICATION

Product application of Stud And Track Forming Machine


In order to satisfy various customer requirements, we design and manufacture Stud And Track Forming Machine in different specs, models and configurations.


Stud And Track Forming Machine Application Example


PACKAGING

Packaging Details

1. One *20GP container for loading one set of machine with mechanical decoiler;

2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;

3.Spare parts and some small parts packed in plastic tooling box;

4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping.

Delivery Time

Machine ready within 50 days after getting 30% deposit and confirming contract details from buyer and sellers.
