Cold-rolled steel strip and heat-treated galvanized steel strip
Thickness of raw material
|Material of roller||45# steel being quenched treatment|
|Material of cutter blade& punching die||Cr12 mould steel with quenched treatment, HRC58-60|
Main motor power: 5.5 Kw(Depend on final design)
Hydraulic station power: 5.5Kw(Depend on final design)
Material of shaft
High quality 45# steel, with heat treatment.
Roller grinder milling.
|Forming speed||about 20m/min|
|Diameter of shaft for rollers||55mm|
Mitsubishi PLC & converter
|Quantity of rollers||About 21 stations for main rollers|
Total weight of machine
about 15m×1.4m× 1.4m
Roll Forming System
Roller material is high grade No.45 forged steel plated with hard chrome, by digital- controlled procession.
1、Shaft material is No.45 steel with diameter 72mm, strong and durable.Shafts for rollers are tooled by grinding machine 2 times. Ensure product accuracy.
2、Finished shafts from grinding machine,rollers on these shafts can ensure final sheet accuracy.
Production speed: 20/min.
9600m per shift one day(8 hours) .
Automatic & Easy Operate
Machine long life: Roller material is high grade No.45 forged steel,plated with hard chrome,processed by digital-controlled procession.
Mitsubishi PLC with touch screen. Friendly man-machine interaction.The system is simple to learn and easy to operate.
Automatic Operation:once you set quantity and length of product,machine will produce product automatically.
Control Quality Well
Zhongyuan factory is a "All-in-house source" from raw material to the final high-precision forming machine. All are done in our factory. Quality and delivery time can be controlled here.
Simple to install and easy to maintain.
You only need to connect some tubes and wires in your factory. Video and manual will show you how to do.
Our experienced technicians can supply overseas service.

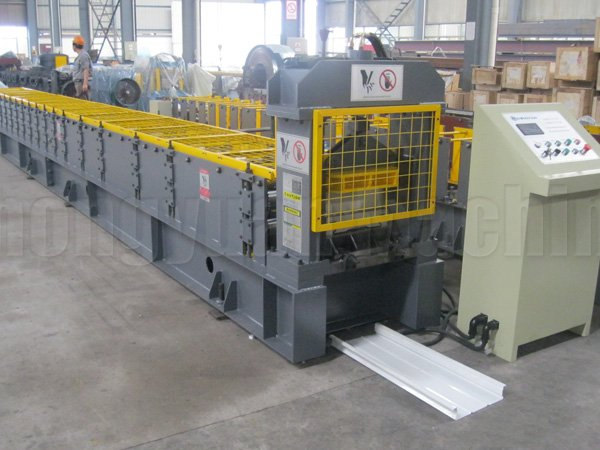

Product application of Standing Seam Machine
In order to satisfy various customer requirements, we design and manufacture Standing Seam Machine in different specs, models and configurations.
1. One *40GP container for loading one set of machine ;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3.Spare parts and some small parts packed in plastic tooling box;
4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping.
Machine ready within 60 days after getting 30% deposit and confirming contract details from buyer and sellers.
