Deck roll forming machine delivery to North American market on Jan.06,2020
Home » News » Delivery of machines » Deck roll forming machine delivery to North American market on Jan.06,2020

NEWS

Deck roll forming machine delivery to North American market on Jan.06,2020

Views:105     Author:Site Editor     Publish Time: 2020-01-15      Origin:Site Inquire

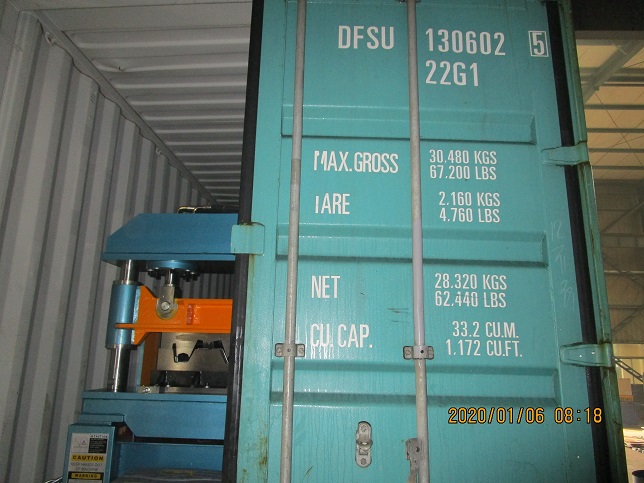

Deck roll forming machine delivery to North American market on Jan.06,2020

Zhongyuan deck roll forming machine 3 Zhongyuan deck roll forming machine 2 Zhongyuan deck roll forming machine 1

Quick Details

Brand: Zhongyuan

Raw material:  0.8-1.2mm,

Lining speed:about 25m/min

Power Requirement: Main motor power: 11X2 Kw(Depend on final design)

Hydraulic power: 5.5Kw(Depend on final design)

Material of rollers: No.45 steel, plated with chrome on surface.CNC machine process.

Cutter Material: Cr12 mould steel with quench treatment, HRC58-60

Material of shaft:  High quality 45# steel with heat treatment.Roller grinder milling.

Shaft diameter :     82mm solid steel

Control system:       Mitsubishi PLC and converter and 7 inch screen

Total weight :   About 16500KGS

Machine Size:  about 26m×1.8m× 1.6m (Depend on final design)

Shipping  : 1x40GP and 1X20GP containers can load one machine



The floor deck panel roll forming machine can be used as the eternal formwork of the cast-in-place concrete. And it can save the time and labor for install and demolish the formwork.It is mainly composed of decoiler roll forming part ,stamping part ,hydraulic cutting part , computer control system , receiving table.

Brief introduction of deck roll forming machine

Steel deck roll forming machines have been designed for the production of various types of metal decks which are usually applied for roofing and floor industries, and sometimes for bridge construction as well.

The most popular steel decks produced by our metal deck roll forming machine are currently used in the industrial applications as following:

Steel roof deck: The steel roof decks are manufactured generally for the construction of pitched, flat, or curved roofing almost on all kinds of buildings;

Composite metal deck: The composite metal decks have embossments in the vertical ribs designed to interlock with concrete slabs, creating a reinforced concrete slab to develop a composite floor system.

Metal form deck: Metal form decks are produced and used extensively also in floor construction as a permanent steel base for poured reinforced concrete floor slabs.

Architectural deck: This kind of steel deck offers architects and engineers the ability to create amazing designing for striking and spacious interiors, as well as dramatic and high-performing exteriors.



The deck roll forming line can be used as the eternal formwork of the cast-in-place concrete. And it can save the time and labor for install and demolish the formwork

Our deck roll forming line can be profile custom,and are high quality,can longevity work.we can do any type of equipment according to customer requirements.
