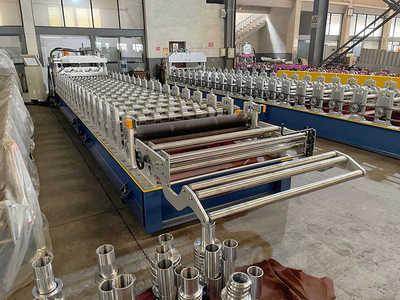

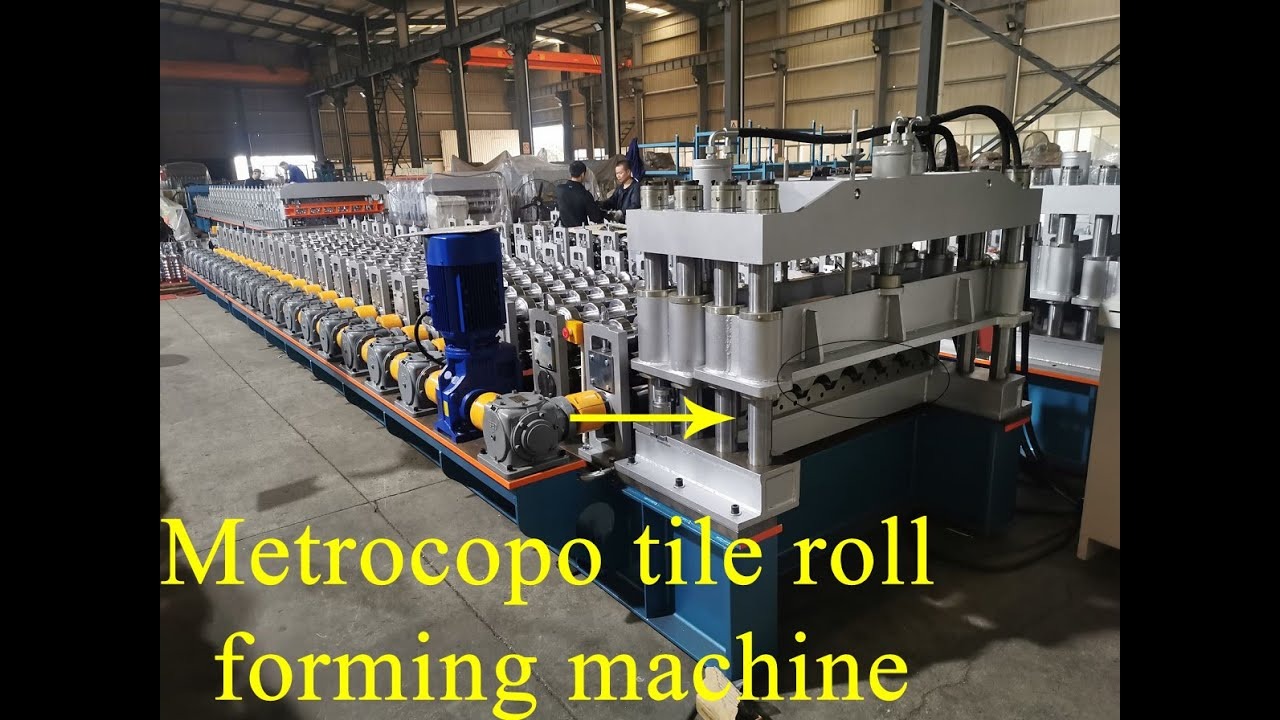

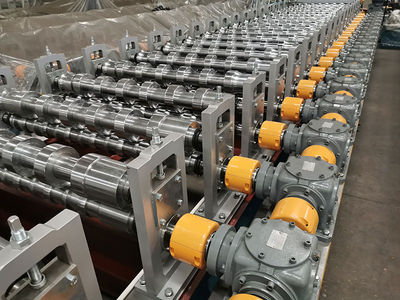

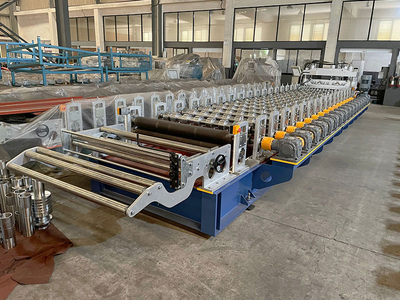

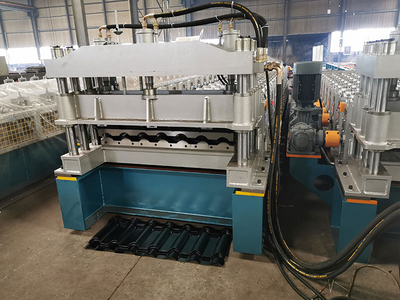

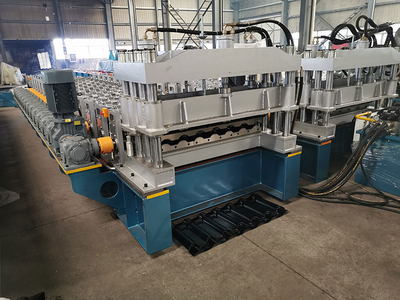

Metrocopo Tile Roll Forming Machine

Home » Metrocopo Tile Roll Forming Machine

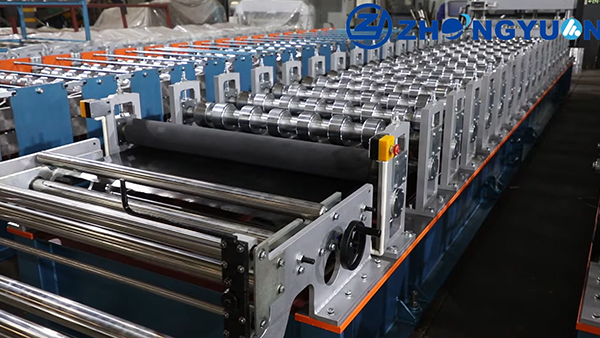

Metrocopo Tile Roll Forming Machine

Main Technical Parameters

Control The Quantity And Cutting Length Automatically. Input the production data(such as production quantity, Length,etc.)on the touch screen, machine can finish the set production plan automatically. One time buyer can set 20 batches of data in the programme.

Machine model	Tile Machine	Operation way	Automatic machine
Certification	ISO9001,CE	Warranty	36 Months
Customized	Customized	Advantage	More than 10 years of life time
Weight	About 11T	Material thickness	0.4 mm-0.6mm
Suiting material	PPGI steel coils	Cutting material	Cr12 .MOV.
Main motor	5.5KW	Forming rollers qty.	17 stations
Shafts diameter	72mm	Roller Material	45# Steel, plated chrome
Machine frame	H400	Wall thickness	40mm
Forming speed	About 5~6 m/min	Transportation	In Containers, suitable for sea and road transmission.
Trademark	Zhongyuan	HS Code	84552210

How Do We Manufacture Forming Machine In Zhongyuan?

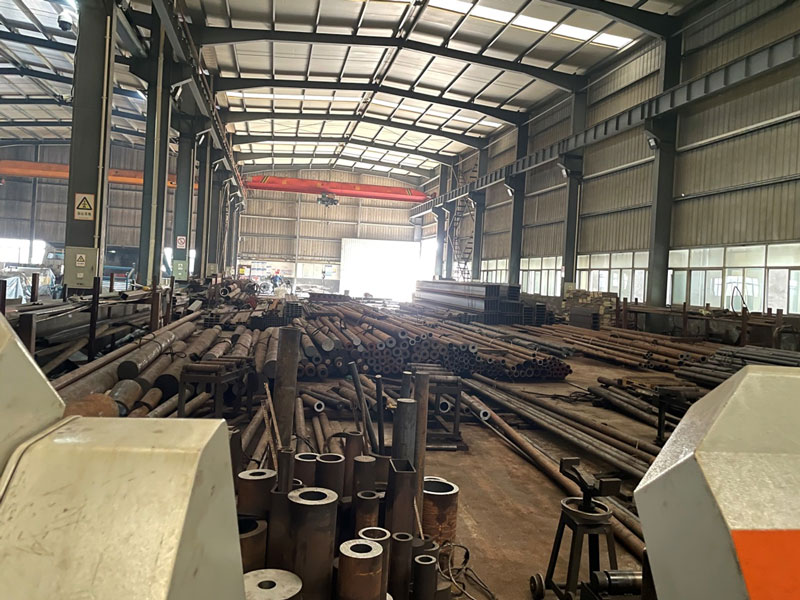

1.Choose Good Quality Raw Material For Machines

We buy raw materials for our made machines, such as steel plates, H steel frames, and steel pipes, from famous companies in China.
For example, buy material from An Steel and Hangzhou Iron and Steel Group.

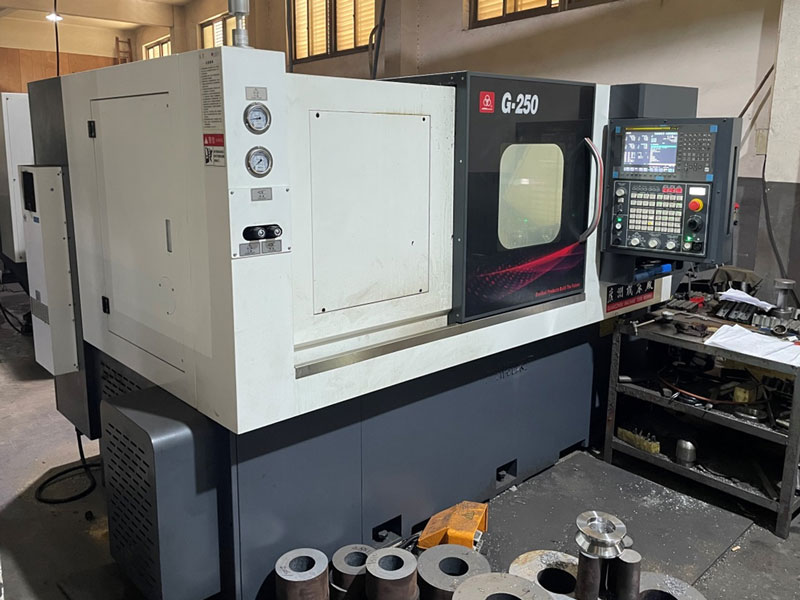

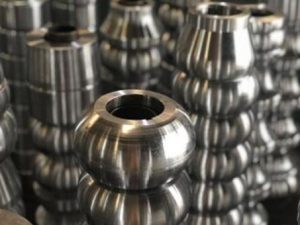

2.Process rollers in CNC Lathe

All Rollers are manufactured from 45# steel
CNC machines can improve roller precision.
A chromate finish on the surface adds hardness to the rollers.

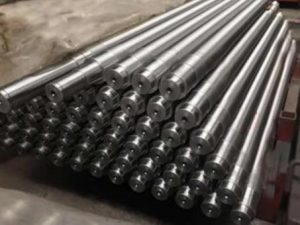

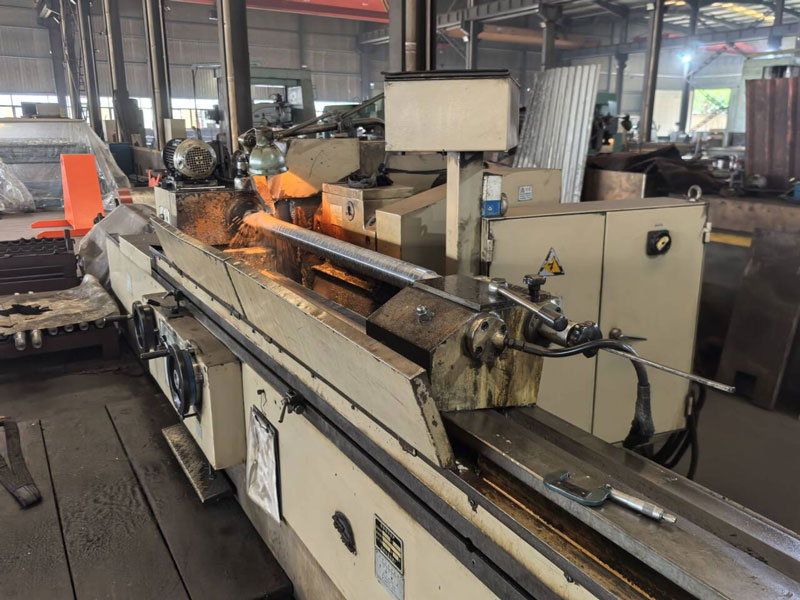

3.High Accuracy Shafts

Solid shafts dia. 72 mm for material thickness.
All shafts are tooled twice by cylindrical grinding machine to ensure final precision.
Guarantee buyers get high accuracy deck sheet from Zhongyuan made machine.

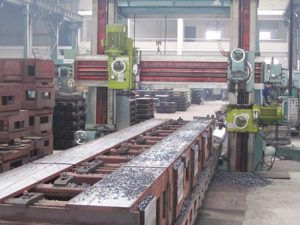

4.Machine Frame Is Processed On Surface By 10m Planning Machine.

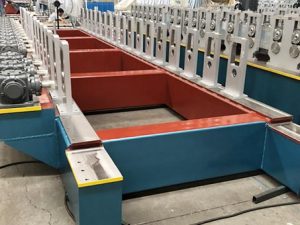

Machine frame made from H350 type steel by welding,planned on surface to guarantee precision.
All the screw bolts with grade 8.8(Some other factories use low grade4.8) to ensure fix the machine structure tightly and long life during the machine long time running. Side wall thickness: 40mm

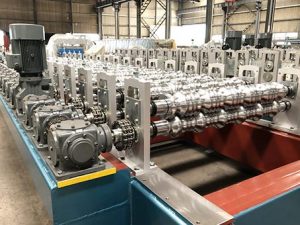

5.Gear Box Transmission System

Design gear box transmission system for tile roll forming machine,reduce machine forming rollers worn-out.
To provide 10+ lifetime tile roll forming machines for our customer.

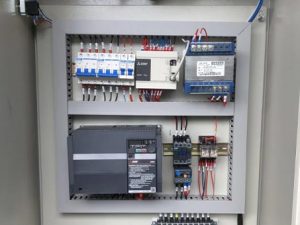

6.Automatic PLC Control System

Control The Quantity And Cutting Length Automatically
Input the production data(such as production quantity,Length,etc.)on the touch screen , machine can finish the set production plan automatically.
A one-time buyer can set 20 batches of data in the programme.

Components of control system	PLC, Inverter, Touch Screen, Encoder, relays, etc
PLC	Mitsubishi (Japanese brand) (Siemens for option)
Inverter	Mitsubishi (Japanese brand) (Siemens for option)
Touch screen	Mitsubishi (Japanese brand) (Siemens for option)
Encoder	OMRON or NEMICON (Japan brand)
Relays	Schneider(French brand)
Limit switch	Schneider(French brand) Cut-to-Length Tolerance≤±1 mm

Suiting Raw Material

Feeding width or coil width:

1200mm

Material Thickness:

0.4 mm-0.6mm

Applicable material:

PPGI steel coils

Yield strength of material:

235Mpa-350Mpa

Machine Components

Decoiler

Guiding Equipment

1set

Roll Forming Equipment

1set

Pressing equipment

1set

Post-cutting Equipment

1set

Hydraulic Station

1pc

PLC Control Panel

1pc

Product Rack(un-powered)

1set (automatic stacker for option)

Tool Box

1pc

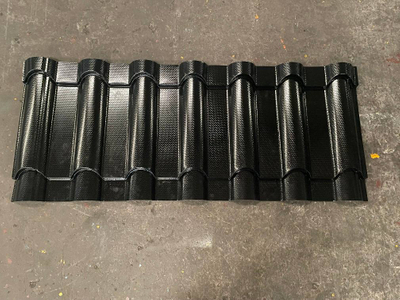

Application of Metrocopo Tile Roll Forming Machine

Apply in Roofs

Apply in Roofs

Apply in Roofs
