Double Layer Roll Forming Machine for Glazed Tiles & Corrugated Sheets

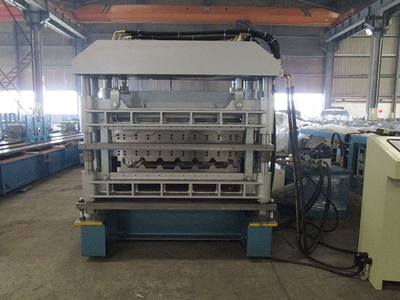

Double-Layer-Roll-Forming-Machine-for-Glazed-Tiles-&-Corrugated-Sheets-2

Double-Layer-Roll-Forming-Machine-for-Glazed-Tiles-&-Corrugated-Sheets-3

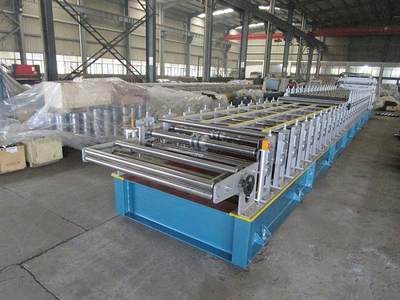

Double-Layer-Roll-Forming-Machine-for-Glazed-Tiles-&-Corrugated-Sheets-4

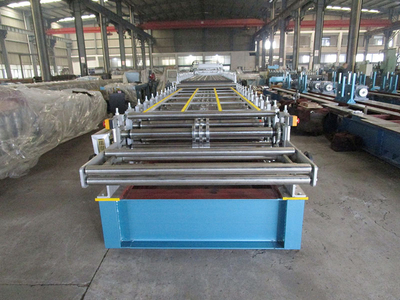

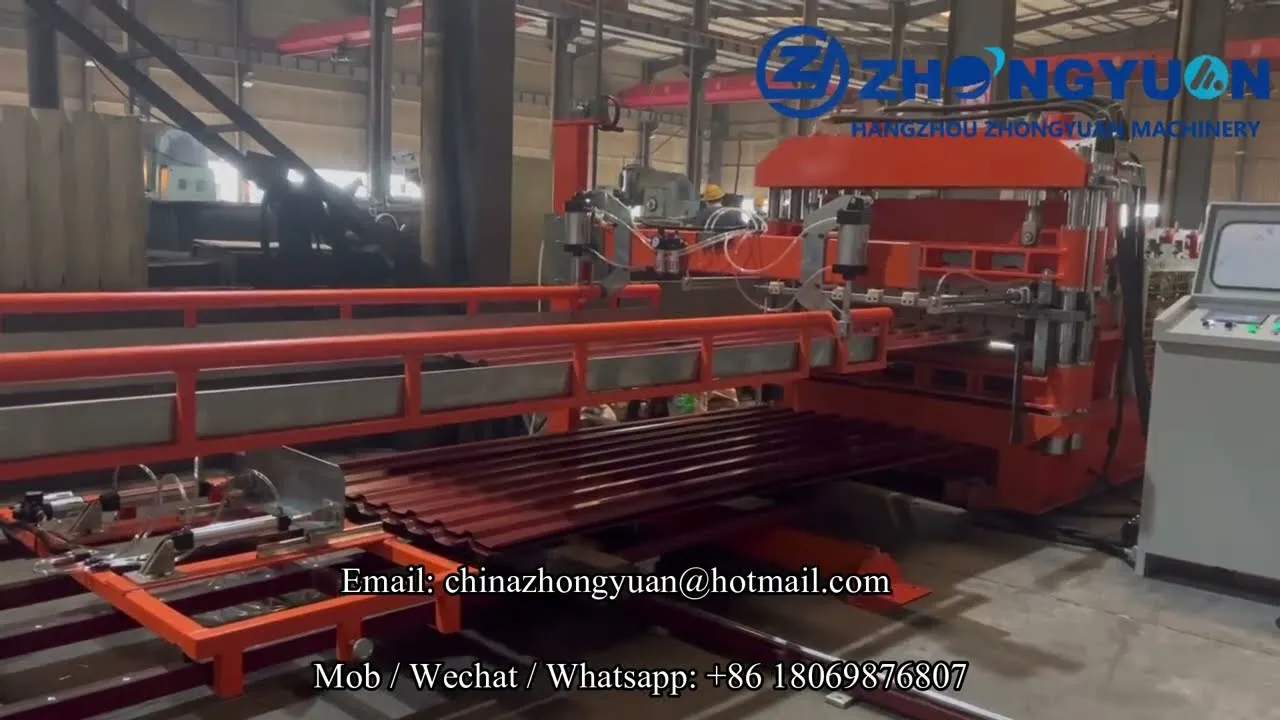

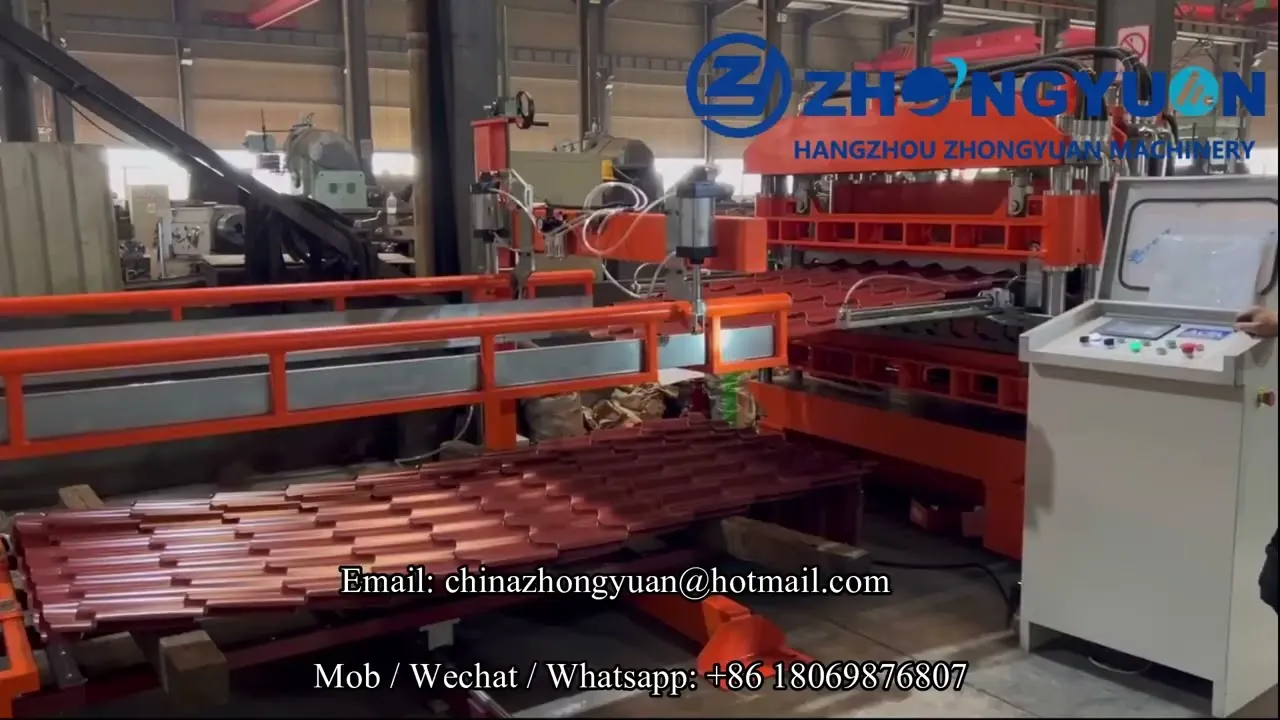

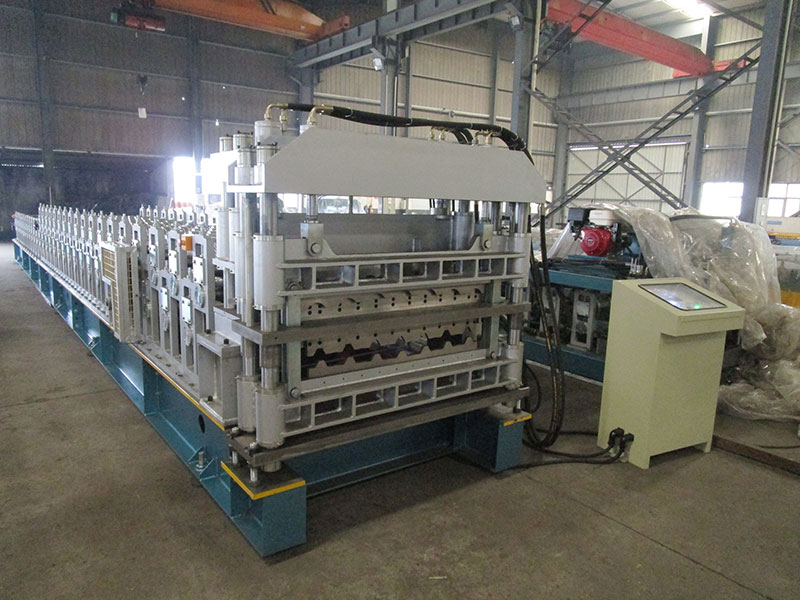

Zhongyuan double layer roll forming machine for glazed tile–style panels and corrugated sheets can produce decorative metal roofing profiles with a glazed tile appearance, along with standard corrugated roofing sheets.
This machine offers flexible production and is an ideal solution for suppliers seeking a compact system that can simultaneously serve both the residential architectural market and the industrial roofing sector, combining aesthetic appeal with practical performance. It is commonly used in residential housing, villas, rural buildings, and renovation projects.

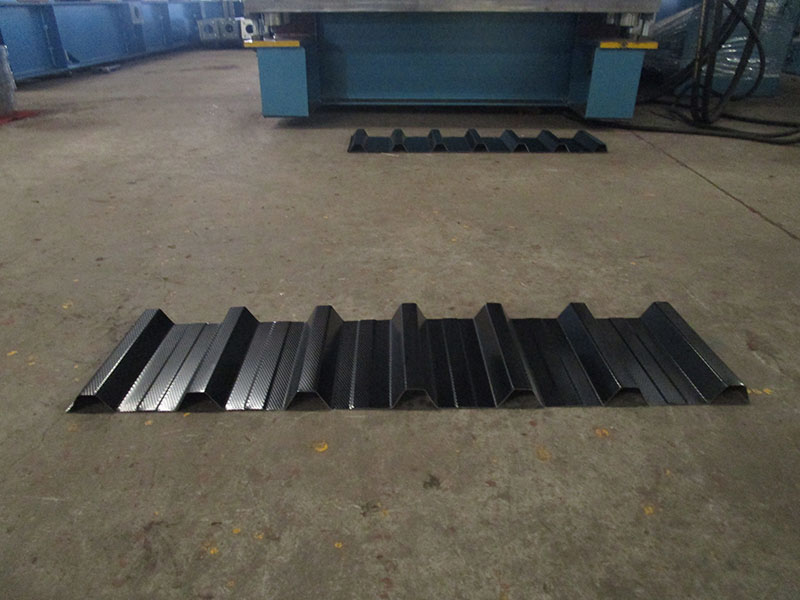

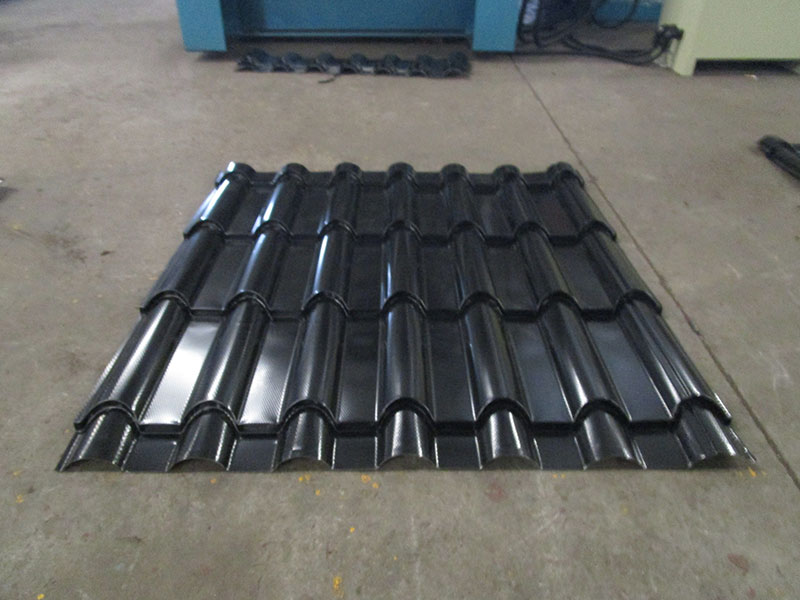

Typical Profiles

Model: ZYYX28-160-960&ZYYX32-150-900

INQUIRE NOW

Main Technical Parameters

Advantage of this machine:
This Double layer roll forming line is designed to make both tile sheet and metra panel.
Fast speed:tile:5-6m/min, Roof:10-15/min. Buyer can get 2400mm per day for tile sheet, 4800mm per day for roof sheet. It can realize automatic running fully.
Two workers can operate one set of machine well.

Machine model	Double Layer Machine	Operation way	Automatic machine
Certification	ISO9001,CE	Warranty	36 Months
Customized	Customized	Advantage	More 10 years life time
Weight	About 19T	Material thickness	0.3 mm -0.7 mm for metra profile; 0.4-0.5mm for metrocopo tile profile
Suiting material	Aluminum coil	Cutting material	Cr12 .MOV.
Main motor	7.5KW	Forming rollers qty.	30 and 17 stations
Shafts diameter	72mm	Roller Material	45# Steel, plated chrome
Machine frame	H400	Wall thickness	40mm
Forming speed	tile:5-6m/min Roof:10-15/min	Transportation	In Containers,suiting for sea and road transmission.
Trademark	Zhongyuan	HS Code	84552210

How do we Manufacture Double Layer Panel Roll Forming Machine

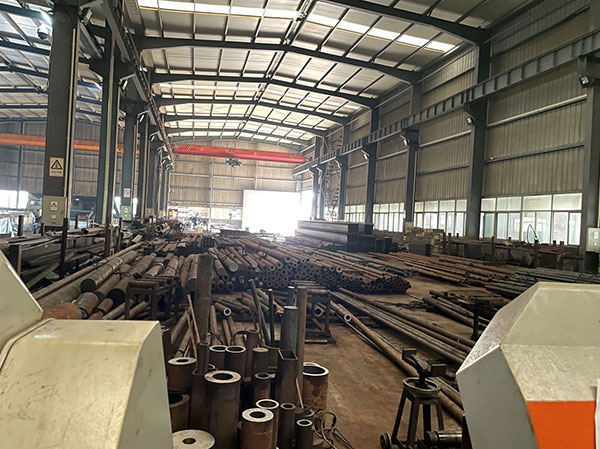

1.Choose Good Quality Raw Material For Machines

We buy raw materials for our made machines, such as steel plates, H steel frames, and steel pipes, from famous companies in China.
For example, buy material from An Steel and Hangzhou Iron and Steel Group.

2.Process rollers in CNC Lathe

All Rollers are manufactured from 45# steel
CNC machines can improve roller precision.
A chromate finish on the surface adds hardness to the rollers.

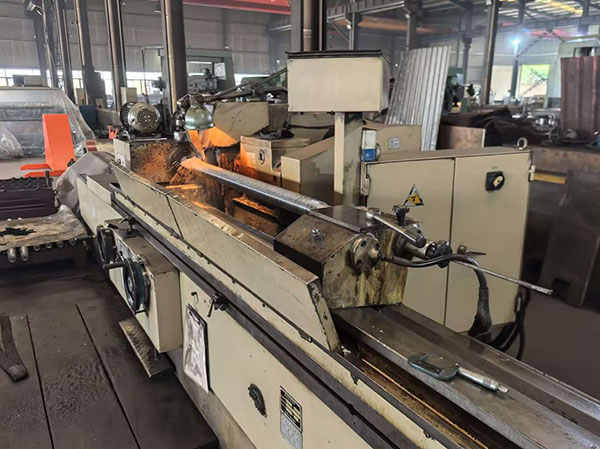

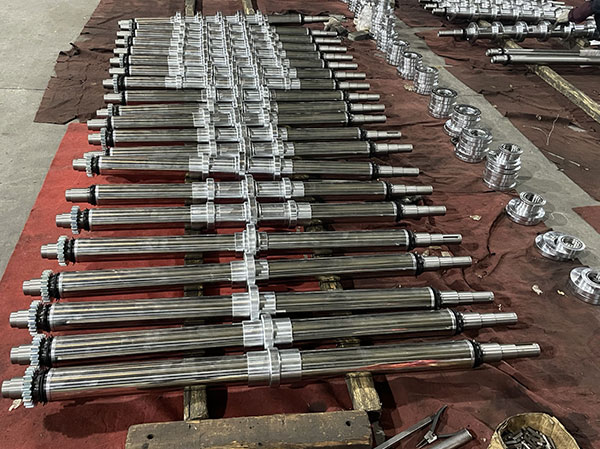

3.High Accuracy Shafts

Solid shafts dia. 72 mm for material thickness.
All shafts are tooled twice by a cylindrical grinding machine to ensure final precision.
Guarantee buyers get a high-accuracy deck sheet from a Zhongyuan-made machine.

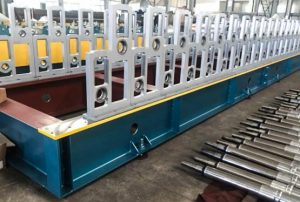

4.Machine Frame Is Processed On Surface By 10m Planning Machine.

Machine frame made from H400 type steel by welding, planned on the surface to guarantee precision.
All the screw bolts are grade 8.8(Some other factories use low-grade 4.8) to ensure the machine structure is fixed tightly and has a long life during the machine's long-term running. Side wall thickness: 40mm

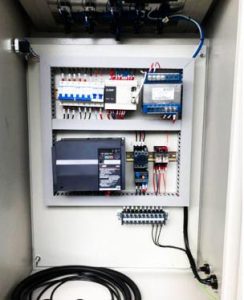

5.Automatic Plc Control System

Control The Quantity And Cutting Length Automatically
Input the production data(such as production quantity,Length,etc.)on the touch screen , machine can finish the set production plan automatically.
One time buyer can set 20 batch data in the programme.

Components of control system	PLC, Inverter, Touch Screen, Encoder, relays, etc
PLC	Mitsubishi (Japanese brand) (Siemens for option)
Inverter	Mitsubishi (Japanese brand) (Siemens for option)
Touch screen	Mitsubishi (Japanese brand) (Siemens for option)
Encoder	OMRON or NEMICON (Japan brand)
Relays	Schneider(French brand)
Limit switch	Schneider(French brand) Cut-to-Length Tolerance≤±1 mm

Machine Components

decoiler

Guiding Device

1set

Roll-Forming M/C

1set

Pressing device

1set

Hydraulic Cutting

1set

Hydraulic station

1set

PLC Control System

1 set

Product Rack (un-powered)

1 set (automatic stacker for option)

Tool Box

1 piece
