Double Layer Roll Forming Machine for Floor Decking

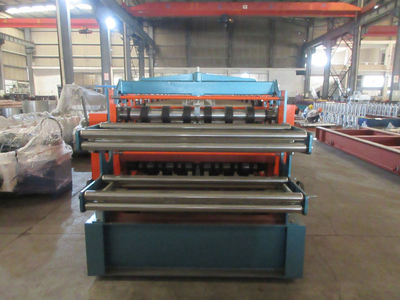

Double-layer-roll-forming-machine-for-floor-decking-2

Double-layer-roll-forming-machine-for-floor-decking-3

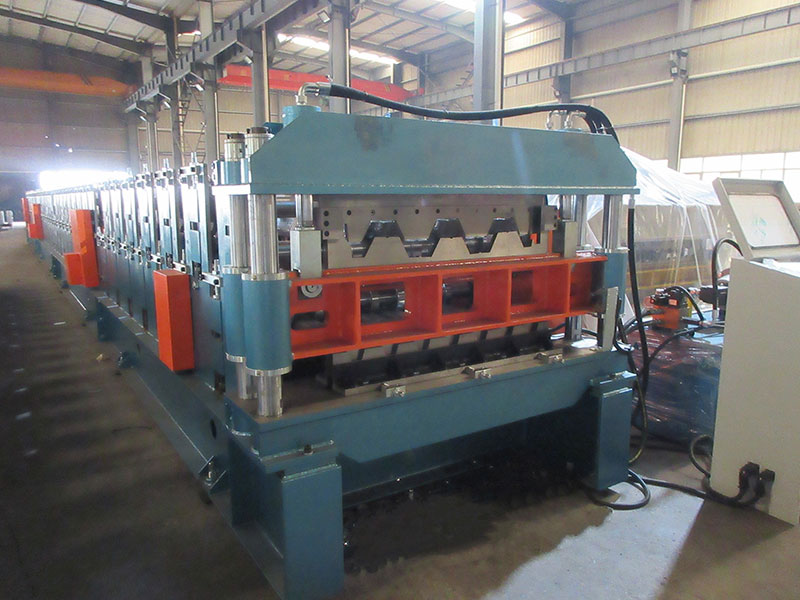

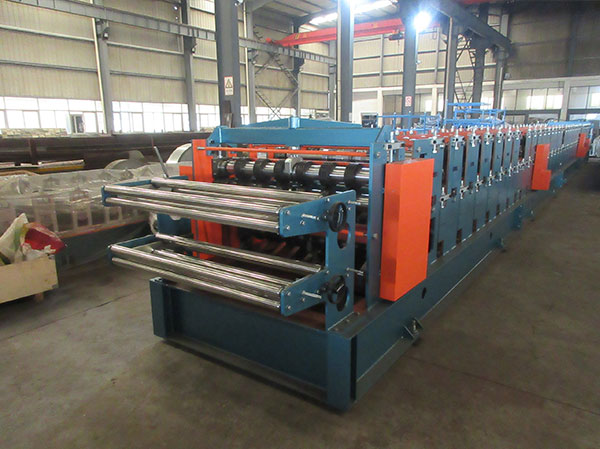

Zhongyuan double layer roll forming machine for floor decking is specifically developed for applications that require the production of both structural floor deck profiles and roofing panels. It is a heavy-duty configuration within the double layer roll forming machine range, capable of producing structural steel deck profiles as well as standard roofing sheet profiles on the same machine. This model is suitable for multi-story steel structure buildings, industrial plants, and composite floor systems. It is equipped with reinforced shafts and a high-power drive system, enabling it to process the thicker materials typically required in multi-story steel structure construction and to meet higher forming force demands.

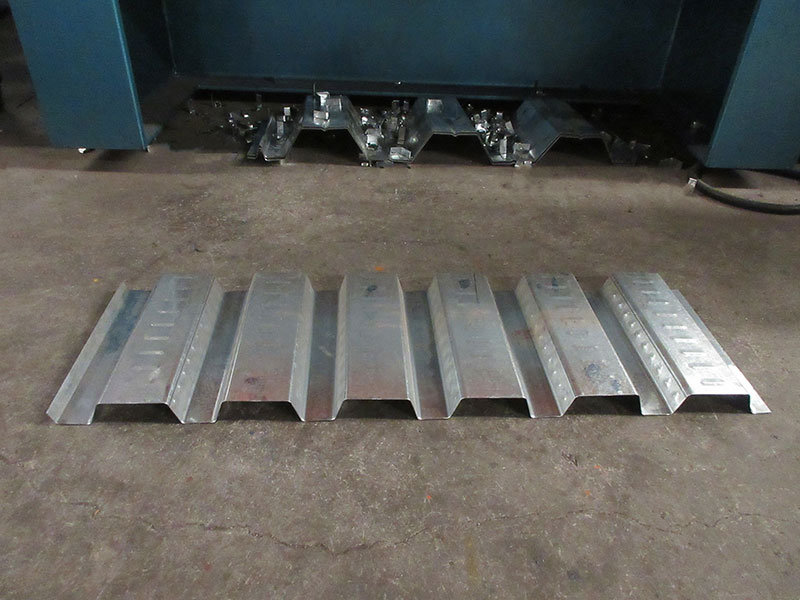

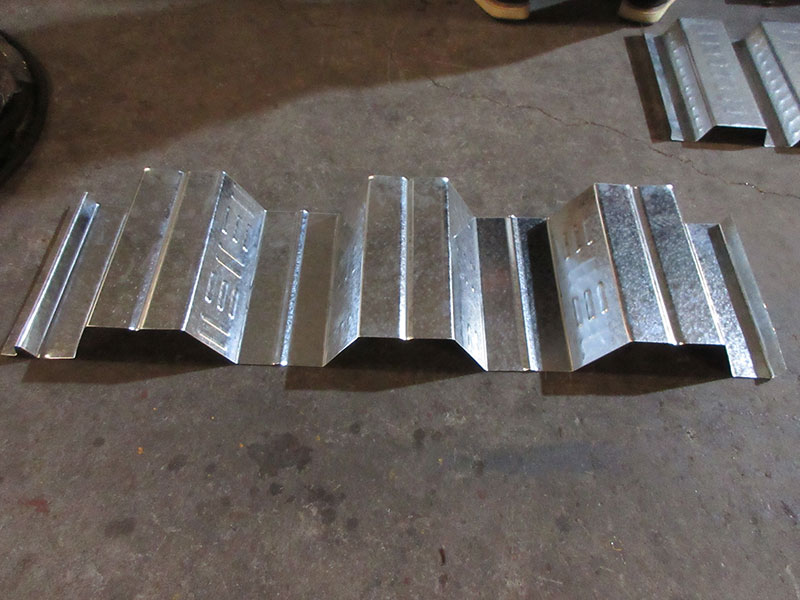

Typical Profiles

Model: ZYYX38h&ZYYX76h

INQUIRE NOW

Main Technical Parameters

Suitable material	galvanized steel coils;0.8-1.2mm
Forming speed	about 20-25m/min
Power Requirement	Main motor power: 11*2KW
Power Requirement	Hydraulic Power:5.5KW
Material of forming rollers	No.45 steel, plated with chrome on surface.
Material of cutter	Cr12 mould steel with quench treatment, HRC58-60
Material of shaft	High quality 45# steel with heat treatment. Roller grinder milling.
Shaft diameter	82mm
Controlling system	Mitsubishi PLC & converter
Weight	about 33770kgs
Size	about 21.012.11.8m
Shipping	2*40GP

How Do We Manufacture A Double Layer Roll Forming Machine

1. Sample

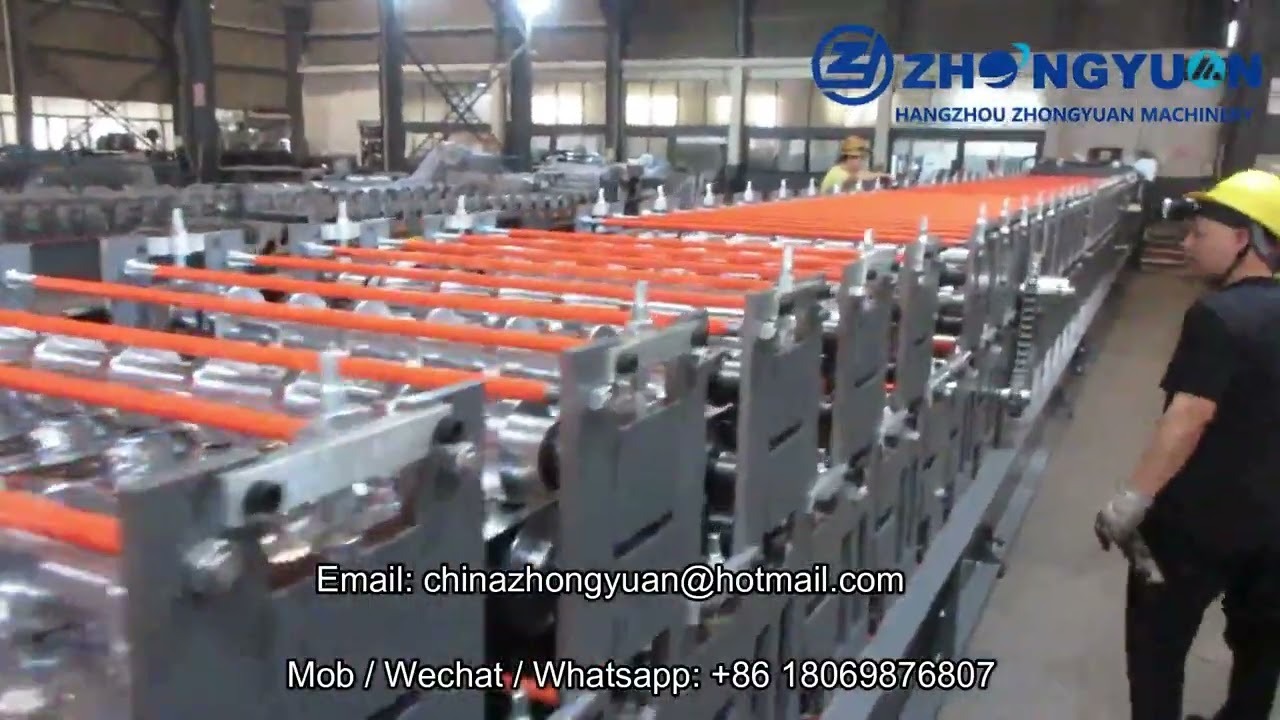

2.Forming System Of Double Layer Roll Forming Line

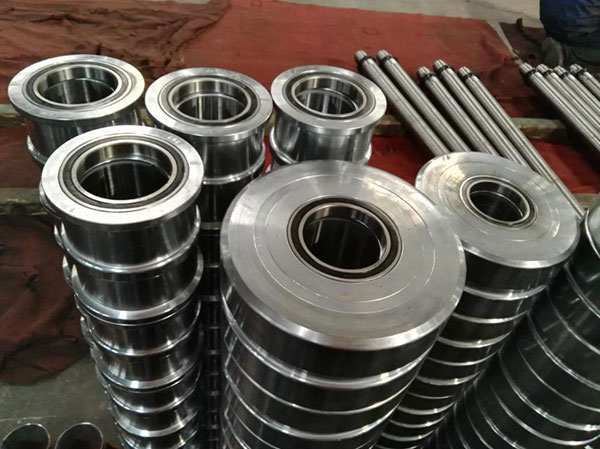

3.Bearings Inside Rollers

Bearings inside the forming rollers to allow machine run with less loading, so that machine rollers not easy to be damaged to prolong machine life.
More important, machine can get more precise sheet because of bearing designing.

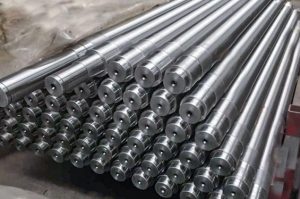

4.Machine Shafts For Rollers

Shaft material is No.45 steel with diameter 82mm, strong and durable.
Shafts are processed for three times from rough machining to grinder machining, to ensure the precision of final product.

Advantage Of This Machine

This Double layer roll forming line is designed as per Hungary buyer profile requirement, about 20m/min.

Fast speed, buyer can get 9600mm per day one shift work.

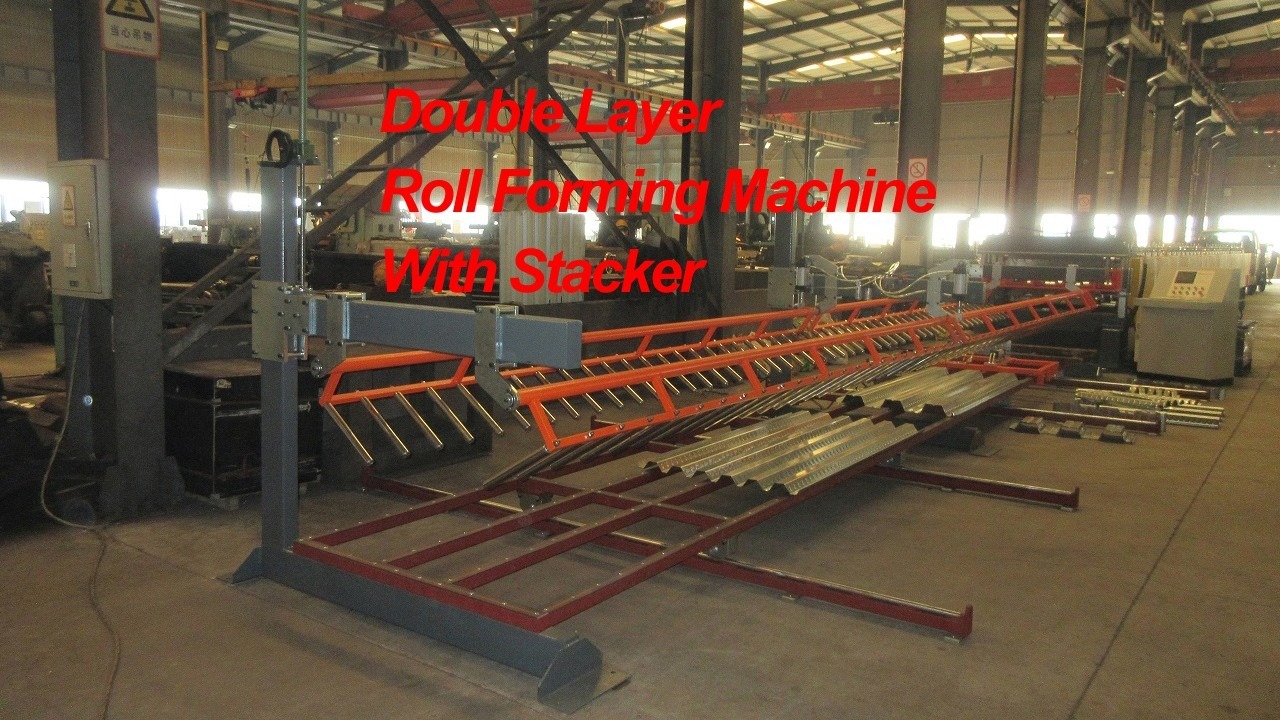

With automatic decoiler and automatic stacker, it can realize automatic running fully.

Applicable material:

One worker can operate one set of machine well.

Quick Details

Machine Model

Raw material

galvanized steel coils

Raw material thickness

0.8-1.2mm

Main power

11*2kw

Hydraulic power

5.5kw

High forming

about 25m/min.

Size

21.01*2.1*1.8m

Blade

CR12MOV. Heat treatment. Guarantee 3 years usage life.

Controller

Mitsubishi PLC and screen. Full automatic

Operation labor

one person for one machine, save labor cost. .

Guarantee term

two years

Loading required

2*40gp
