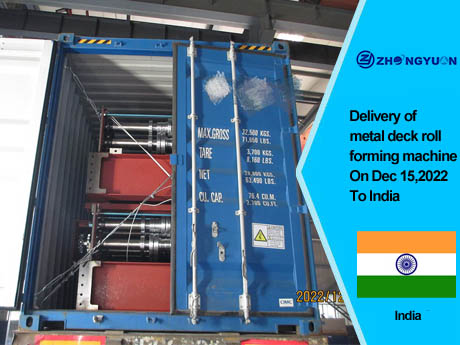

Delivery of metal deck roll forming machine On Dec,15.2022 To India

Author: Site Editor     Publish Time: 2022-12-16      Origin: Site

Inquire

Metal deck roll forming machine On Dec,15.2022 To India as follow:


Zhongyuan R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, So we are able to assist customers with professional designing and solution.


Metal deck roll former Main Technical Parameters:

1) Forming Speed:              Max. About 20-25m/min. (excluding the cutting time)

2) Main Motor Power:           11KWX2 (Depend on final design)

3) Hydraulic Station Power:       5.5KW (Depend on final design)

4) Control System:              Mitsubishi PLC and transducer (Japan)

5) Encoder:                   Nemicon (Japan)

6) Rollers’ material            High grade No.45 forged steel, with digital-controlled procession,

                                     plated wit chrome on surface.

7) Shaft diameter             90mm, tooled by grinding machine for two times

                                to ensure the precision of final product.

8) Type of Cutting:             Length-set cutting and post forming style

9) Electric Condition:           380V/3Phase/50HZ(or depend on customer)

10) Total Weight:               About 21400 Kg


MACHINE COMPONENTS:

(1) Manual de-coiler 1 set(Capacity : 7 tons)

(2) Roll-Forming M/C 1 set

(3) Hydraulic Cutting 1 set

(4) Hydraulic station 1 set

(5) PLC Control System 1 set

(6) Product Rack (un-powered) 1 set

(7) Tool Box 1 pc


Picrures of floor deck roll forming machine

Zhongyuan floor decking roll forming machine

Zhongyuan steel deck roll forming machine

Zhongyuan floor deck machine
