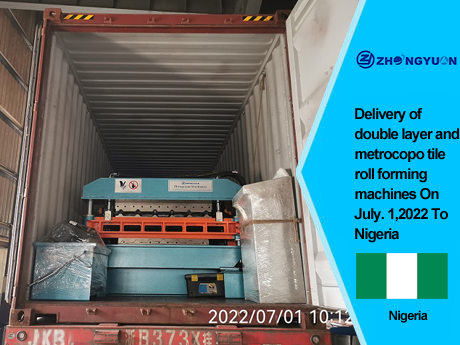

Delivery of double layer and metrocopo tile roll forming machines On July, 1,2022 To Nigeria

Author: Site Editor     Publish Time: 2022-07-04      Origin: Site

Inquire

Double layer roll forming machine

Metrocopo tile roll forming machines to Nigeria:


Zhongyuan are“All-in-house source” – from raw material to the final high-precision forming machine. Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine,etc,which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines.


How Zhongyuan produce roll forming machines:

Details for forming system

No.45 Steel processed by CNC machine

CNC machine can improve rollers precision.

zhongyuan CNC Zhongyuan shafts

High Accuracy Shaft

Solid shafts dia.72mm.

Solid steel shafts are being tooling twice with grinding machine to ensure final precision. Guarantee buyer get high accuracy sheet from Zhongyuan made machine.

Zhongyuan shafts zhongyuan shaft

zhongyuan assmbly


Main Technical Parameters:

Double Layer Roll Forming Machine:

quantity of rollers:upper layer:20 stations

down layer:23 stations

main motor power:7.5KW

hydraulic power:2.2KW

size:About 10.45*1.75*1.6m

machine weight :11970kgs

Metrocopo tile roll forming machine:

1) Working Speed:             About 5-6m/min. (including the cutting& pressing time)

2) Main Motor Power:           5.5KW (Depend on final design)

3) Hydraulic Station Power:       5.5KW (Depend on final design)

4) Control System:              Mitsubishi PLC and transducer (Japan)

5) Encoder:                   Nemicon (Japan)

6) Rollers’ material            High grade No.45 forged steel, with digital-controlled procession, plated wit chrome on surface.

7) Shaft diameter              72mm, tooled by grinding machine for two times to ensure the precision of final product.

8) Type of Cutting:             Length-set cutting and post forming style

9) Electric Condition:           380V/3Phase/50HZ(or depend on customer)

10) Transmission system:         Gear box

11) Total Weight:               About 10500 Kg


Packing picture

zhongyuan metrocopo tile roll forming machine
