Delivery of Zhongyuan panel roll forming machine with 10T hydraulic decoiler and coil car On Dec, 3,2021 To Mexico

Author:Site Editor     Publish Time: 2021-12-06      Origin:Site Inquire

panel roll forming machine with hydraulic decoiler and coil car to Mexico as following:


MACHINE COMPONENTS:

(1) Hydraulic decoiler with Coil Car              1 set(Capacity: 10 tons)

(2) Roll-Forming M/C                         1 set

(3) Hydraulic Cutting                         1 set

(4) Hydraulic station                          1 set

(5) PLC Control System                       1 set

(6) Product Rack (un-powered)                  1 set (two pieces, total length is 3 meters)

(7) Tool Box                                 1 piece


Why choose Zhongyuan:


20 years history in Metal roll forming machine industry

25 years experienced engineers

Focus on machine quality with reasonable price

59 sets processing equipment, including in 12 sets CNC tooling machines.

Experienced technician can be sent to install machines abroad

100+ sets of machines exported each year

65+ countries using Zhongyuan Machines


panel Roll Forming Machine Main Technical Parameters:

1) Forming Speed:              Max. About 35-40m/min. (excluding the cutting time)

2) Main Motor Power:           7.5KW (Depend on final design)

3) Hydraulic Station Power:       2.2KW (Depend on final design)

4) Control System:              Mitsubishi PLC and transducer (Japan)

5) Encoder:                   Nemicon (Japan)

6) Rollers’ material            High grade No.45 forged steel, with digital-controlled procession,plated wit chrome on surface.

7) Shaft diameter              72mm, tooled by grinding machine for two times to ensure the precision of final product.

8) Type of Cutting:             Length-set cutting and post forming style

9) Electric Condition:          440V/3Phase/60HZ(or depend on customer)

10) Total Weight:               About 11000 Kg

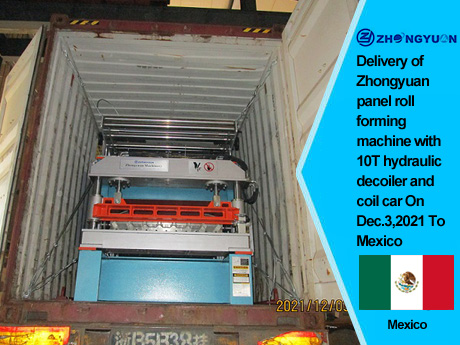

Packing pictures

panel forming machine

panel machine

panel roll making machine
