Delivered cutting machine in Zhongyuan to North America on December 12,2020

Views:15     Author:Site Editor     Publish Time: 2020-12-12      Origin:Site Inquire

Delivered cutting machine in Zhongyuan to North America on December 12,2020

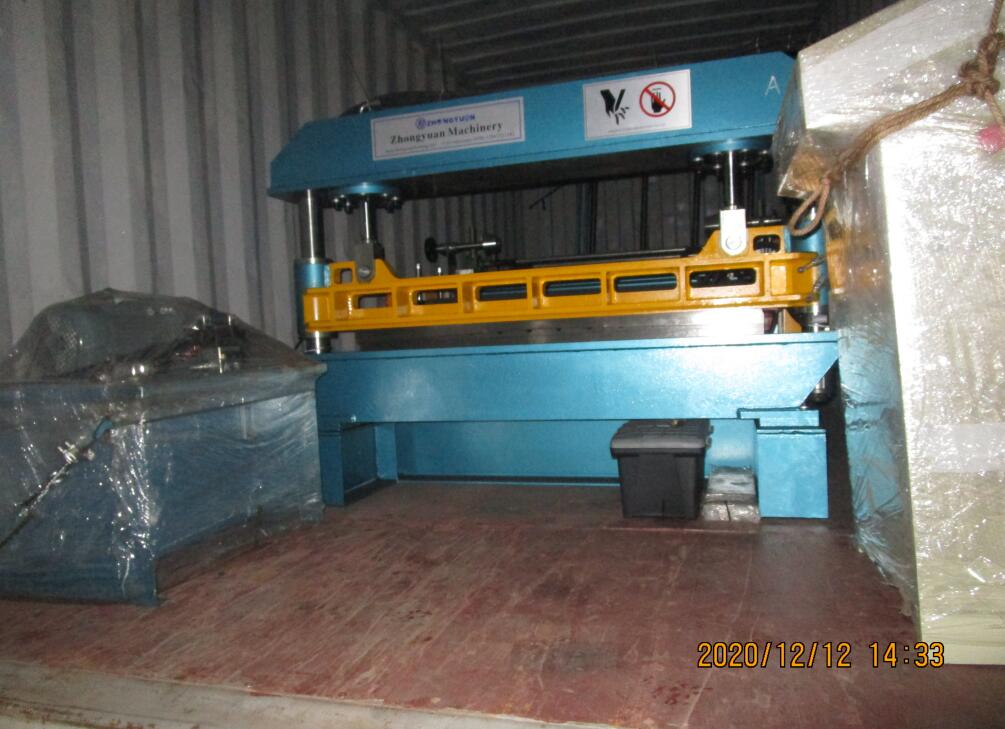

zhongyuan cut to lengh machine

cut to length


1. Function of the cutting machine

This cut to length machine is the accessorial equipment for roll forming machine which is used to cut coils sheet to pieces. It has many advantages such as low noisy, stable running, simple operation and nice appearance etc.



2. Components of cut to length machine

(1) Manual decoiler                          1 set(Capacity : 5 tons)

(2) Cutting Machine                         1 set

(3) Hydraulic Station                         1 set

(4) PLC Control System                      1 set

(5) Product Rack (un-powered)                 1 set(one piece with 1.5m length.)





3. Technical Parameters of cut to length machine

Suitable coil width: Max.1250mm

Suitable coil thickness: 0.3~1.0mm

Yield strength:   235Mpa

The parameters of sheet coil: Max. weight      5T

Inner diameter     φ508

Max. Width           1250mm

Cutting device:     Max.Width is 1250mm;

cutter material:    Cr12 Mov. steel.

Cutting Thickness:   0.2-1.0mm PPGI coils& GI coils

Length tolerance    +/_ 1mm in 3M in length

Motor power:            5.5KW

Hydraulic motor power  2.2KW

Cutting style          cut to length automatically

Controller                 Mitsubishi PLC





4. Workflow

Install the coil into uncoiler---coil sheet guiding and Filming -------Cutting to set length
