Angel roll forming machine to Russia on July 10,2020
Home » News » Delivery of machines » Angel roll forming machine to Russia on July 10,2020

NEWS

Angel roll forming machine to Russia on July 10,2020

Views:11     Author:Site Editor     Publish Time: 2020-07-13      Origin:Site Inquire

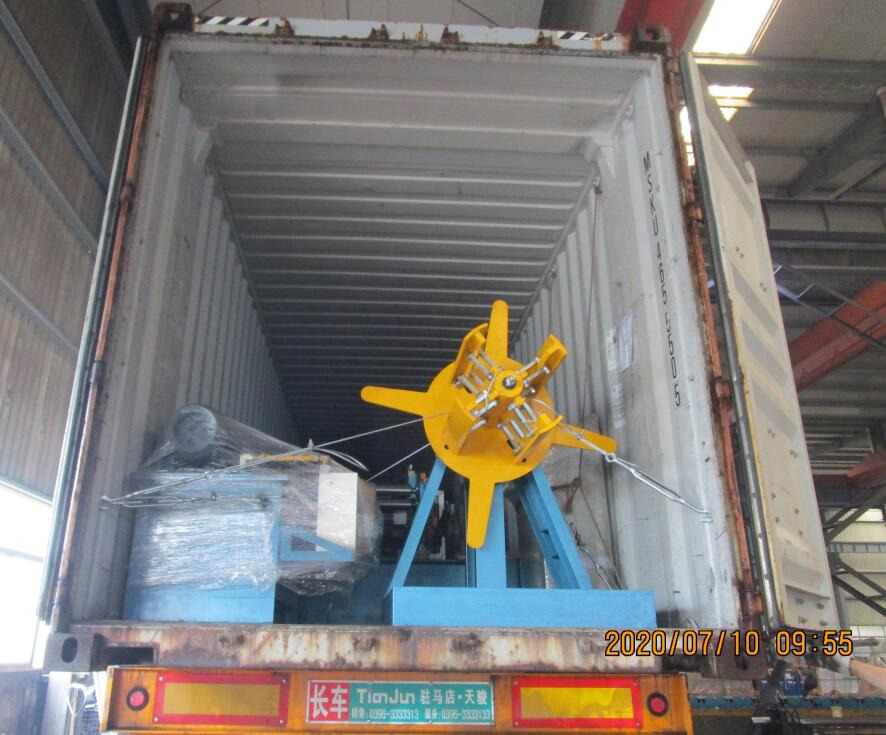

Angel roll forming machine to Russia on July 10,2020


4.0mm angel roll forming machine


Technical Parameters :

1) Suitable Coil Thickness:        1.5mm -4.0mm

2) Max. Coil Width:              as per drawing

3) Suitable Raw Materials:         ST 350 TOCT 19904-90 Steel

                            (As your material is special, please provide us testing coil then)

4) Yield Strength of Raw Material:   500Mpa (Please confirm the material yield strength)

5) Forming Speed:               Max. about 18m/min.(not include punching and cutting)

6) Main Motor Power:            5.5X2KW(Depends on design)

7) Hydraulic station motor power:   5.5KW(Depends on design)

8) Manual Decoiler               Max. Capacity: 3000kgs

9) Control system                Mitsubishi PLC and Frequency converter

10) Machine layout dimension      about 12m×1.8m×1.7m


MACHINE COMPONENTS:

(1) Manual decoiler                          1 set (Capacity: 3 tons)

(2) Leveling device                          1 set (4 upper+5 down structure)

(3) Punching device                          2 sets (Per set for one hole)

(4) Cutting device                           2 sets (Pre-cutting&Post cutting )

(5) Roll-Forming M/C                        1 set

(6) Hydraulic station                         1 set

(7) PLC control system                       1 set

(8) Product Rack (un-powered)                 1 set (two pieces, total length is 3 meters)

(9) Tool Box                                1 set


DELIVERY: The machines will be ready within 100 days from receipt of down payment as well as approval of sales contract, technical scheme and profile drawing. The shipment will be made within 10 days after the seller receives the balance by T/T.


Angel roll forming machine in our factory, it can be used to forming max. 4mm thickness metal angel. Designed gear box transmission.

angel roll forming machine


Angel produced from Zhongyuan angel roll forming machine

Angel production
