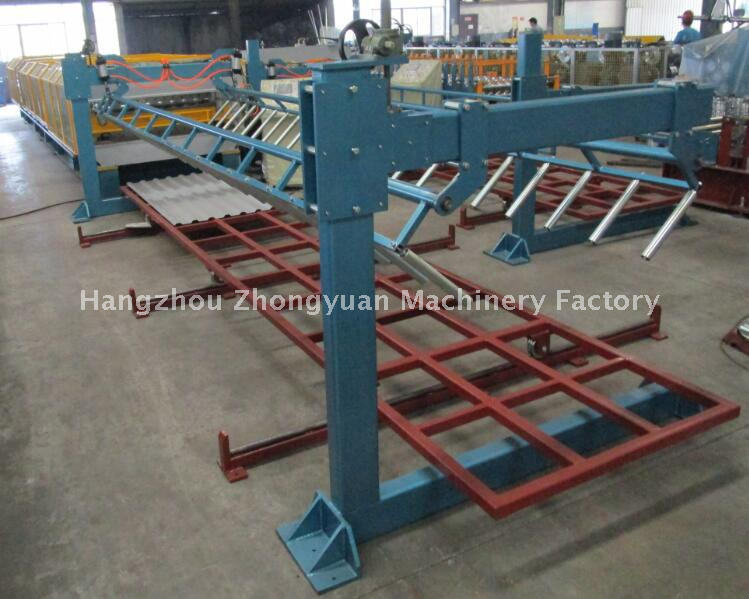

Taiwan Quality European Standard T18+T35 Profile Double Layer Machine Manufacturer With CE Certificate | ZHONGYUAN

Zhongyuan Machinery Factory creates customized good quality roll forming machines and provide unique service that meets the specific profile our customer wants.
1.【High efficiency】
Production speed: 20/min. You can get 9600m per shift one day(8 hours) .
2.【Long Life Machine】Rollers of roll forming machine are CNC machine tooled, plated with 0.05mm hard chrome on surface.Heat treatment for cutting frame to remove the steel stress,Cutting material is Cr12 mould steel with quenched treatment, all these processing steps ensure you can use machine at least 15 years.
  • European Style Double layer Machine with ISO Quality System

  • Zhongyuan

  • 8455221000

Availability:

TECHNICAL SPECIFICATIONS

Brief introduction of European Standard Doube Layer Machine with ISO Quality System:

Technical Parameters of European Style Doube Layer Machine with ISO Quality System:

Suitable material

Q235 color steel coils;0.3-0.7mm

Forming speed

About 20- 25m/min

Power Requirement

Main motor power: 7.5 Kw(Depend on final design)

Hydraulic station power: 2.2Kw(Depend on final design)

Material of forming rollers

No.45 steel, plated with chrome on surface.

Material of cutter

Cr12 mould steel with quench treatment, HRC58-60

Material of shaft

High quality 45# steel, with heat treatment.

Roller grinder milling.

Shaft diameter

72mm

Controlling system

Mitsubishi PLC & converter

Total weight of machine

About 13000KGS

Machine's size

About 11.5m×1.8m× 1.5m (Depend on final design)

Shipping1x40GP container can load one machine


DESCRIPTION

Machine's Feature: One machine can make two kinds of profile. Client's profile available.

Roll Forming System

1、Roller material is high grade No.45 forged steel plated with hard chrome, by digital- controlled procession.

2、40mm thickness wall for forming system to ensure machine 15 years long life.

rollers of T18+T35 roll forming machine


 Bearings inside rollers

Bearings inside the forming rollers to allow machine run with less loading, so that machine rollers not easy to be damaged to prolong machine life. More important, machine can get more precise sheet because of bearing designing.

Bearings-inside-rollers


High Accuracy

1、Shaft material is No.45 steel with diameter 72mm, strong and durable.Shafts for rollers are tooled by grinding machine 2 times. Ensure product accuracy.

2、Finished shafts from grinding machine,rollers on these shafts can ensure final sheet accuracy.

roll forming high accuracy


Sample out of roll forming machine

sheet out of T18+T35 profile rol forming machine 2 sheet out of T18+T35 profile rol forming machine


Automatic & Easy Operate

Machine long life: Roller material is high grade No.45 forged steel,plated with hard chrome,processed by digital-controlled procession.

Mitsubishi PLC with touch screen. Friendly man-machine interaction.The system is simple to learn and easy to operate.

Automatic Operation:once you set quantity and length of product,machine will produce product automatically.

Automatic-Easy-Operate


Control Quality Well

Zhongyuan factory is a "All-in-house source" from raw material to the final high-precision forming machine. All are done in our factory. Quality and delivery time can be controlled here.

Simple to install and easy to maintain.

You only need to connect some tubes and wires in your factory. Video and manual will show you how to do.

Our experienced technicians can supply overseas service.


APPLICATION

Product application of European Style Doube Layer Machine with ISO Quality System


In order to satisfy various customer requirements, we design and manufacture European Style Doube Layer Machine with ISO Quality System in different specs, models and configurations.


European Style Doube Layer Machine with ISO Quality System Application Example


PACKAGING

Packaging Details


1. One *40GP container for loading one set of machine with mechanical decoiler;

2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;

3.Spare parts and some small parts packed in plastic tooling box;

4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping.


Delivery Time

Machine ready within 60 days after getting 30% deposit and confirming contract details from buyer and sellers.
