Roof And Tile Double Layer Roll Forming Machine for Sale with 6M Stacker
1.【High Efficiency】25-30m per minute for roof profile;6m/min for tile profile .Produce 12000m ;2880m per shift for 8 hours one day. 2.【Long Life Machine】Rollers of machine are CNC machine tooled, plated with 0.05mm hard chrome on surface.Heat treatment for cutting frame to remove the steel stress, to avoid deformation. Cutting material is Cr12 Mov.with quenched treatment, all these processing steps ensure machine long life time. 3.【High Precision】Shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance. 4.【Automatic & Easy Operate】Safe and easy to operate with Mitsubishi PLC touch screen operating system.Friendly man-machine interaction. 5.【Excellent Services】Technician can be sent to your factory to install the machine and train your workers. Engineers are able to service overseas.We supply lifetime services for our machines. 6.【Machine’s Feature】 One machine can make two kinds of profile. Client’s profile available.

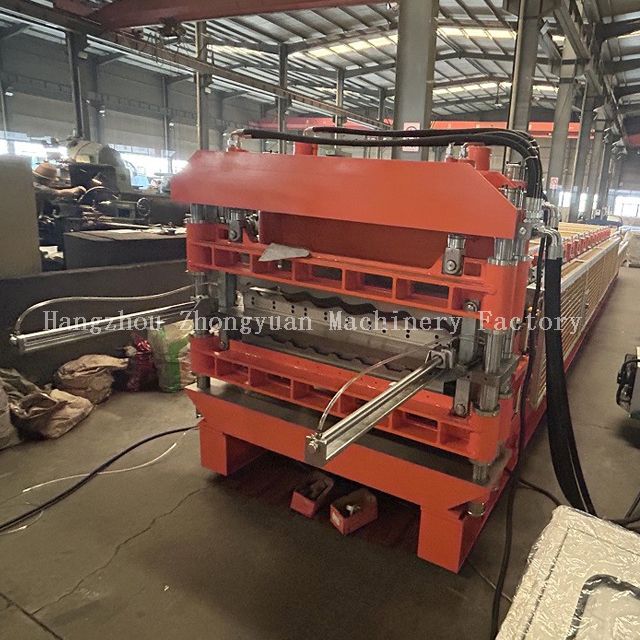

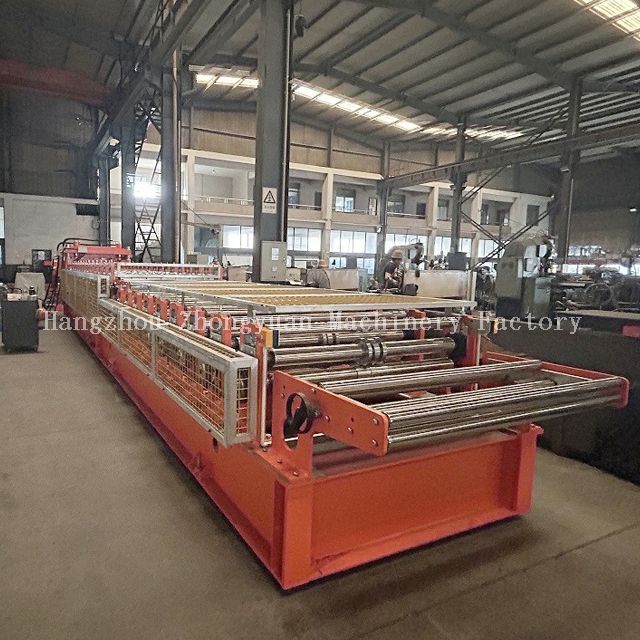

ZYYXT18&25-184-1104 double layer roll forming machine
Brief introduction of double layer forming machine:
Technical Parameters of double layer roofing sheet roll forming machine:
Machine mode
T18&25-184-1104
Operation way
Automatic machine
Certification
ISO9001,CE
Warranty
36 Months
Customized
Customized
Advantage
More 10 years life time
Weight
17000kgs
Material thickness
0.3 mm -0.7 mm for T18 profile;
0.5-0.6mm for step tile profile
Suiting material
PPGI coils
Cutting material
Cr12 Mov.with quenched treatment
Main motor
5.5kw
Forming rollers qty.
upper layer:15 stations;down layer:24 stations
Shafts diameter
72mm
Roller Material
high grade No.45 forged steel, with digital-controlled procession
Machine frame
H400
Forming speed
about 25-30 m/min for T18 (excluding in cutting time);
tile profile: about 6m/min
Transportation
In Containers,suiting for sea and road transmission
Feeding width or coil width
1250mm
Yield strength of material
235Mpa
Effective width
1104&1112
Wall thickness
40MM
Double layer roll forming machine components:
Roll-Forming M/C
1 set (Double layer machine for tile + T18)
Pressing device for tile
1 set
Hydraulic Cutting
1 set
Hydraulic station
1 set
PLC Control System
1 set
Automatic stacker
1 set （6m length）
Tool Box
1 piece
Double layer working processing display:
Decoiling the sheet→Guiding sheet →Roll forming→(pressing)→ Measure length and cutting the sheet → Sheet to stacker
DESCRIPTION
Components description of double layer roll forming machine
Double layer roofing sheet roll forming machine's Feature: One machine can make two kinds of profile. Client's profile available.
1. High Accuracy Shaft
Solid shafts dia.72mm.
Solid steel shafts are being tooling twice with grinding machine to ensure final precision. Guarantee buyer get high accuracy sheet from Zhongyuan made machine.

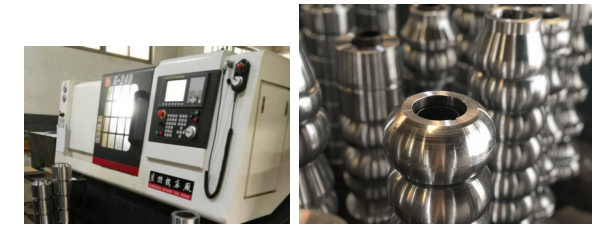

2. No.45 Steel processed by CNC machine
CNC machine can improve rollers precision.
3.Design bearings inside forming rollers
Design bearing inside the rollers to make machine run with less loading so that rollers not easy to damage.
Ensure the same speed between the rollers, no speed difference between rollers, improve the forming accuracy.
Bearings are helping to prolong machine life.
4.Hydraulic Cutting
1) Adopts post cutting, Stop to cut;
2) The cutting blade material is Cr12mov. with quenched treatment.
3) Adopts welded frame for good rigidity.
4) Cutting frame has been heat treatment to avoid final product deformation. Cutting length tolerance is ±1.5mm.

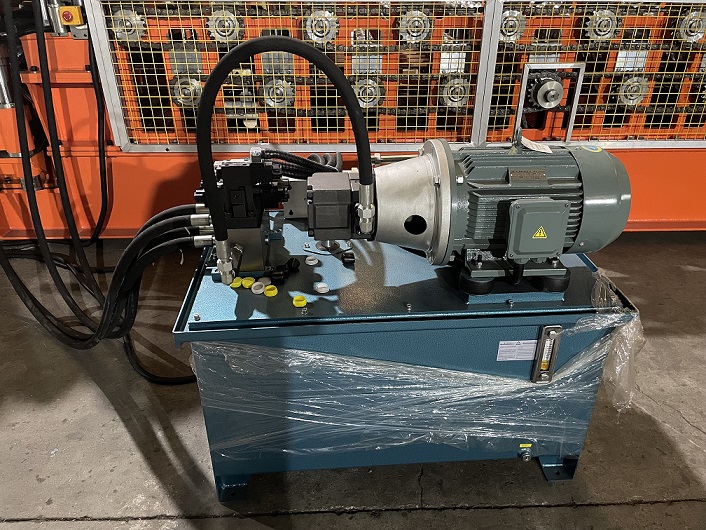

5) The power of cutting is provided by hydraulic station.
6) The final product can be cut as per set length in PLC controller, and the length is automatically measured by encoder. When final product reaches the set length, machine will stop to cut the product automatically. Finish this action, machine will run again continuously.
5.PLC Control System
1) This system uses Mitsubishi PLC to control the all working actions. Production quantity and each piece length will be automatically measured. It is convenient to control the roll forming machine.
2) Mitsubishi converter adjusts speed technology, realize the automatic production.
3) Touch screen is input and canceled the working data.
4) Friendly man-machine interface system can be set batches to the workpiece, length, quantity, etc.
5) Encoder count, having function of count and measuring length.
6) Suitable power voltage: 380V/50Hz, 3 phases (can be designed according to buyer’s requirement)
(7) Hungarian Menu (translation come from buyer)
6.AutomaticStacker
1) Length of stacker:6m
2) Moving direction of stacker arm: transverse moving.
3) Because tile sheet requests pressing device, so the stacking height for T18 is not much space. About 150mm stacking height for T18 sheet.

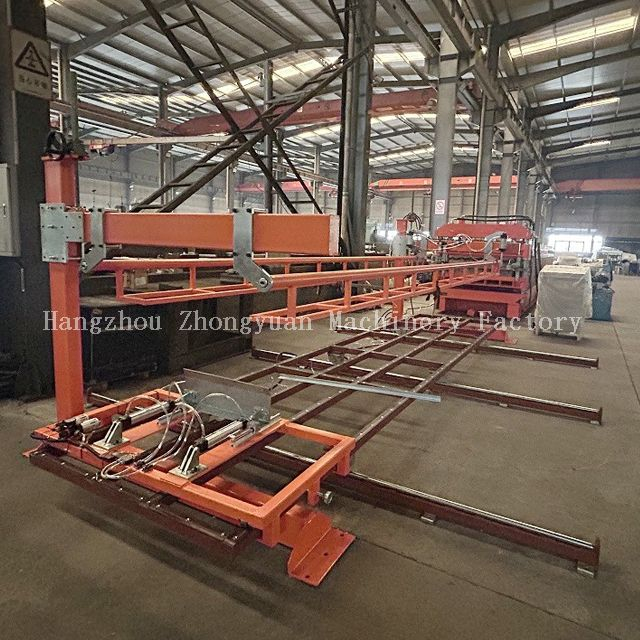

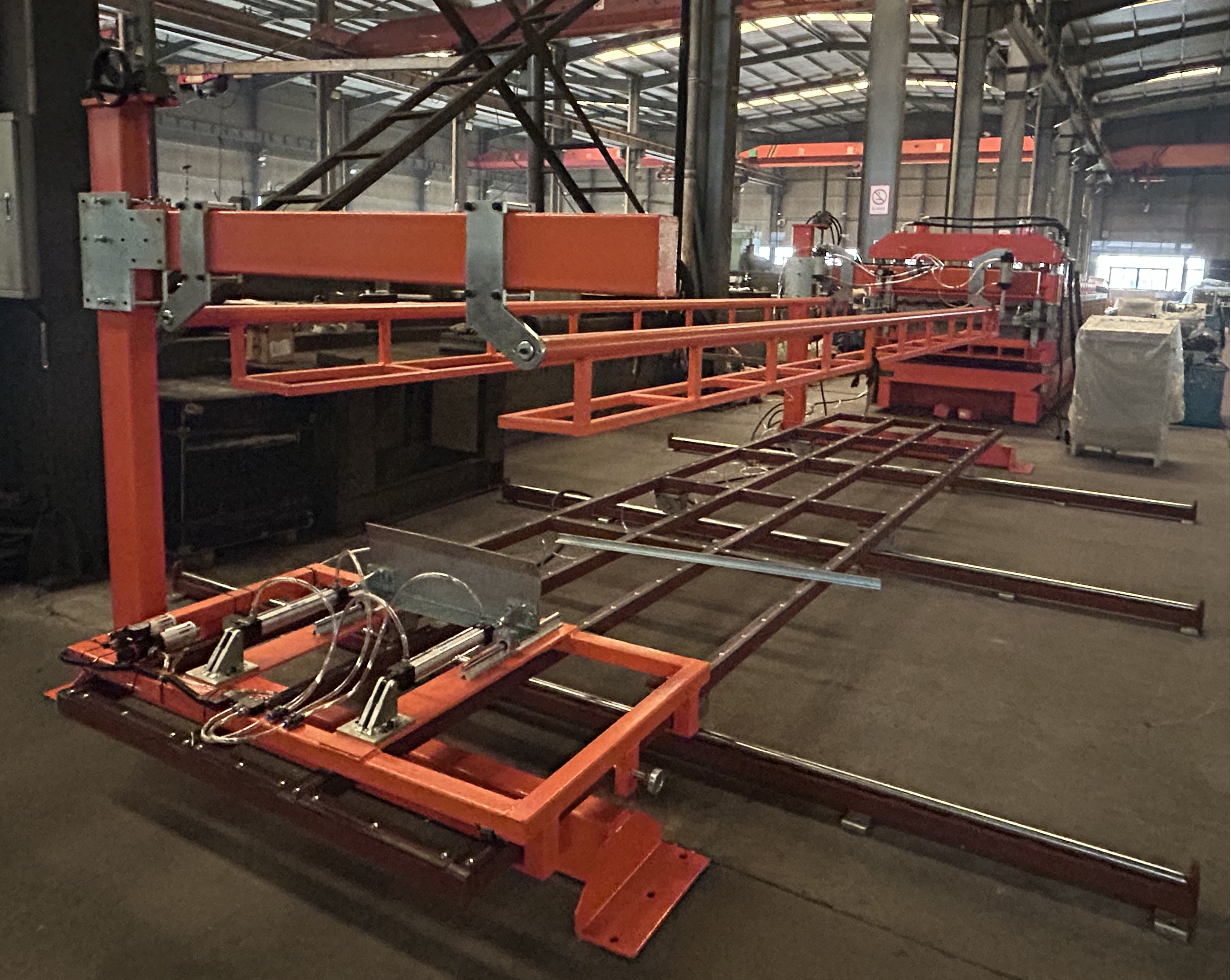

Picture of automatic stacker
APPLICATION
Product application of double layer roll forming machine
In order to satisfy various customer requirements, we design and manufacture double layer roll forming machine in different specs, models and configurations.
Double layer roll forming machine Application Example
PACKAGING
Packaging Details
1. One *40GP &one 20gp containers for loading one set of double layer panel roll forming machine;
2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3.Spare parts and some small parts packed in plastic tooling box;
4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping.
Delivery Time
Machine ready within 100 days after getting 30% deposit and confirming contract details from buyer and sellers.
