Three containers Corrugated roll forming machines to Egypt on July 29,2020

Author:Site Editor     Publish Time: 2020-07-31      Origin:Site Inquire

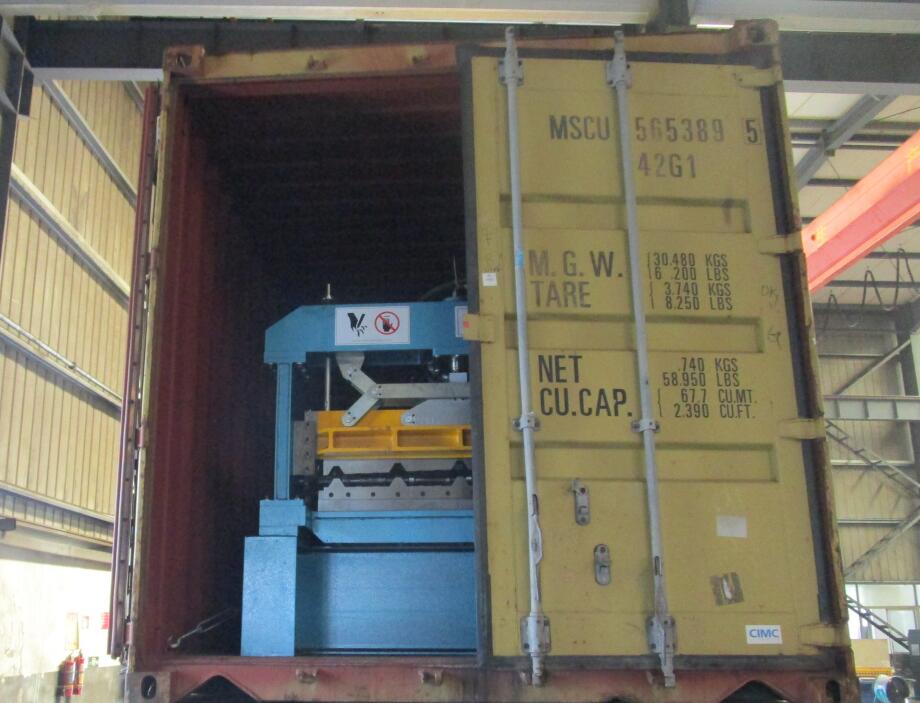

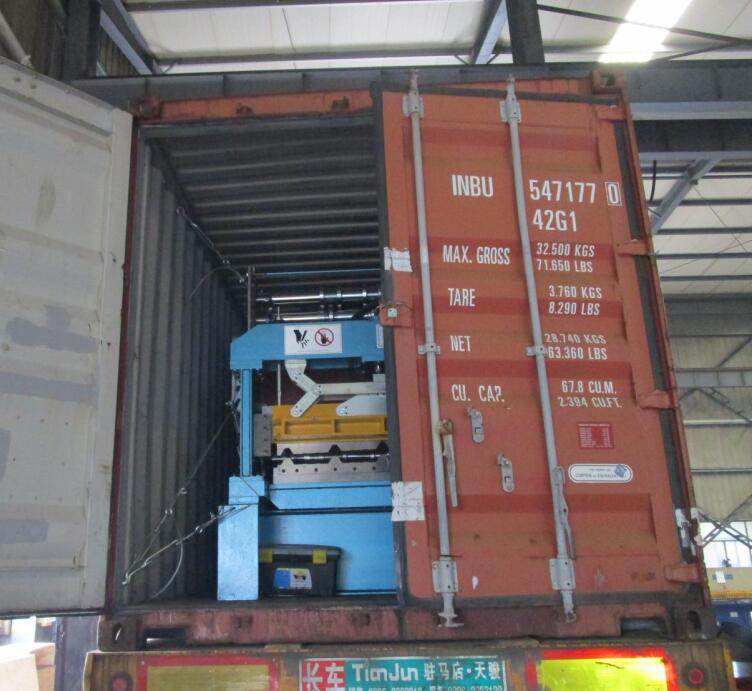

Three containers Corrugated roll forming machines to Egypt on July 29,2020

Zhongyuan roof roll forming machine 2

Zhongyuan roof roll forming machineroof roll forming machinery


Main technical paraeters:

1) Forming Speed:              Max. About 20m/min. (excluding the cutting time)

2) Main Motor Power:           7.5KW (Depend on final design)

3) Hydraulic Station Power:       2.2KW (Depend on final design)

4) Control System:              Mitsubishi PLC and transducer (Japan)

5) Encoder:                   Nemicon (Japan)

6) Rollers’ material            High grade No.45 forged steel, with digital-controlled procession,

                                      plated wit chrome on surface.

7) Shaft diameter              72mm, tooled by grinding machine for two times

                                 to ensure the precision of final product.

8) Type of Cutting:             Length-set cutting and post forming style

9) Electric Condition:           380V/3Phase/50HZ(or depend on customer)

10) Total Weight:               About 8500 Kg


MACHINE COMPONENTS:

1)  Manual decoiler                          1 set(Capacity: 7 tons)

2)  Pre-cutter                                    1 set

3)  roll-Forming M/C                         1 set

4)  Hydraulic Cutting                         1 set

5)  Hydraulic station                          1 set

6)  PLC Control System                      1 set

7)  Product Rack (un-powered)          1 set (two pieces, total length is 3 meters)

8)  Tool Box                                       1 pc



Roof roll forming machine in factory

Egypt roof roll forming machine


Advantages of Zhongyuan metal roof panel machine:

High Efficiency】20-25m per minute or 30-35m per minute .

Long Life MachineRollers of machine are CNC machine tooled, plated with 0.05mm hard chrome on surface.Heat treatment for cutting frame to remove the steel stress, to avoid deformation. Cutting material is Cr12 mould steel with quenched treatment, all these processing steps ensure machine long life time.
High PrecisionShafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
