Metal glazed tile roll forming machine to Nigeria on March 12,2020

Author: Site Editor     Publish Time: 2020-03-12      Origin: Site


Metal glazed tile roll forming machine to Nigeria on March 12,2020

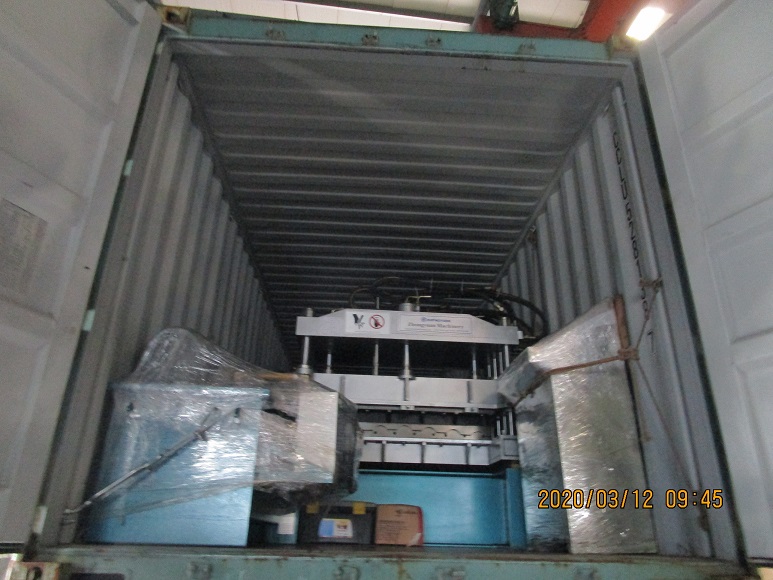

Zhongyuan Aluminium step tile roll forming machine

Quick details of this step tile roll forming machine:

Machine model: YX27-190-950A

Suiting material:  Q235-Q345 PPGI steel coils or Aluminium coils;

Thickness of material: 0.4-0.6mm

Working speed: About 5-6m per minute. Buyer can get 2800m per day one shift of 8 hours working.

Loading information: 1X40GP container for one machine.


Zhongyuan Step Tile Roll Forming Machine’s advantages

1. Production speed:   6m per minute . User can get 2880m per day (one shift working 8 hours).

2. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .

3. . Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.

4. Cutter blade: Cr12 mould steel with quenched treatment, long life time.

5. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.

6.  People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.

7.  Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifetime services for our machines.


Technical data of step tile roll forming machine

Suitable material

Q235 color steel coils t;0.4-0.6mm,

Working speed

About 5-6m/min

Step distance

adjustable according to requirement (>=250mm)

Power Requirement

Main motor power: 5.5 Kw(Depend on final design)

Hydraulic station power: 5.5Kw(Depend on final design)

Material of forming rollers

No.45 steel, plated with chrome on surface.

Material of cutter,pressing die

Cr12 mould steel with quench treatment, HRC58-60

Material of shaft

High quality 45# steel, Dia. is 72mm.

Roller grinder milling.

Shaft diameter


Controlling system

Mitsubishi PLC & converter

Total weight of machine

About 10500KGS

Machine’s size

about 18m×1.8m× 1.5m (Depend on final design)
