Delivery of roll forming line machine On Oct.20,2023 To Turkey

Author: Site Editor     Publish Time: 2023-10-23      Origin: Site

Inquire

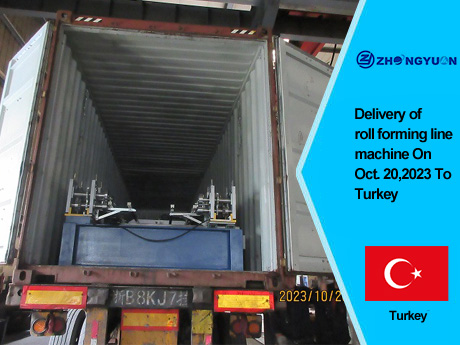

Delivery of roll forming line machine On Oct.20,2023 To Turkey


All In House” makes Zhongyuan can better to control machine quality,keep all the machines in the same quality level and ensure on time delivery.


Why choose Zhongyuan:

20 years history in Metal roll forming machine industry

25 years experienced engineers

Focus on machine quality with reasonable price

59 sets processing equipment, including in 12 sets CNC tooling machines.

Experienced technician can be sent to install machines abroad

100+ sets of machines exported each year

65+ countries using Zhongyuan Machines


Machine Components of line roll forming machine:

(1) Manual decoiler                        1 set(Capacity: 5 tons)

(2) Film Covering Device                 1 set

(3) Bending Grooving Roller            1 set

(4) Roll-Forming M/C                      1 set

(5) Hydraulic Cutting                       1 set

(6) Hydraulic station                        1 set

(7) PLC Control System                   1 set

(8) Product Rack (un-powered)       1 set (two pieces, total length is 3 meters)

(9) Tool Box                                    1 piece


Roll Forming Line Main Technical Parameters:

1 ) Coil Width: 408-1200mm

2 ) Suitable Raw material: 0.3 mm -0.8mm PPGI coil

3) Yield strength of raw material: 235Mpa

4) Forming Speed:                  Max. About 25m/min. (excluding the cutting time)

5) Main Motor Power:               7.5KW (Depend on final design)

6) Hydraulic Station Power:         2.2KW (Depend on final design)

7) Control System:                 Mitsubishi PLC and transducer (Japan)

8) Encoder:                        Nemicon (Japan)

9) Rollers’ material             High grade No.45 forged steel, with digital-controlled procession,  plated wit chrome on surface.

10) Shaft diameter                   55mm, tooled by grinding machine for two times to ensure the precision of final product.

11) Type of Cutting:                Length-set cutting and post forming style

12) Electric Condition:               380V/3Phase/50HZ

13) Total Weight:                   About 8400 Kg(Depends on final design)


Pictures of roll forming line:

Zhongyuan roll forming line

Zhongyuan line roll forming machine

Zhongyuan roll forming machine production line

Zhongyuan line forming machine

Zhongyuan roll forming production line
