Delivery R101 R72 double roll forming machine with SGS certificate to Mexico on August 09,2018

Author: Site Editor     Publish Time: 2018-08-09      Origin: Site

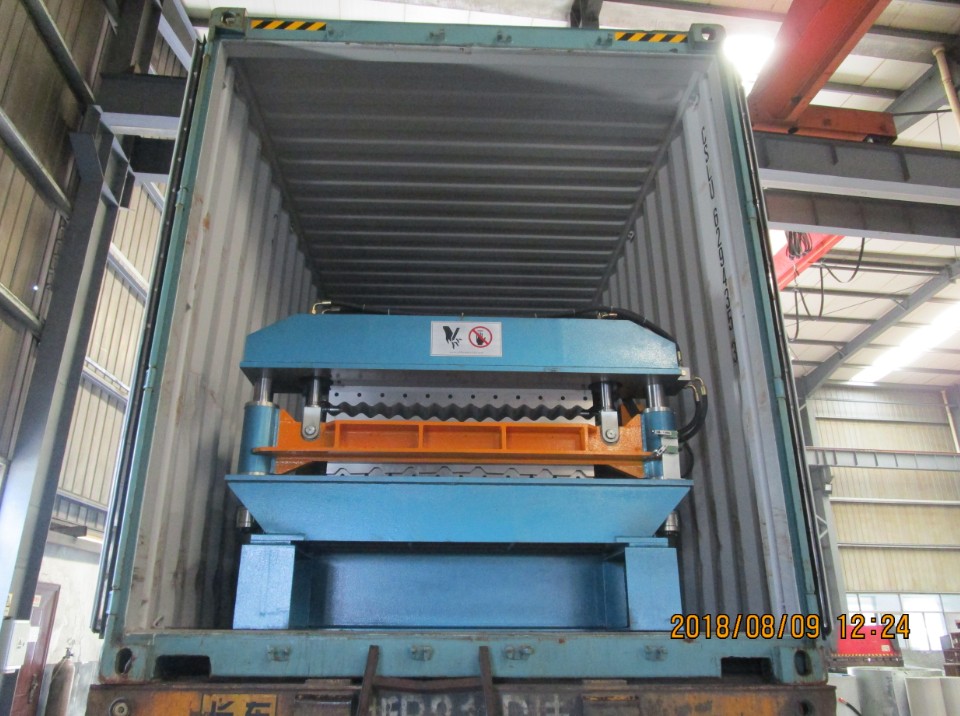

Delivery R101 R72 double roll forming machine with SGS certificate to Mexico on August 09,2018

Buyer bought two sets of R101 R72 double roll forming machines one time.

zhongyuan double layer forming machine

R101 R72 double roll forming machine's Feature:

One R101 R72 double roll forming machine can make two kinds of profile. Client's profile available.

R101 R72 double roll forming machines in our factory:

zhongyuan double layer

Product from R101 R72 double roll forming machines:

zhongyuan double layer product

How Zhongyuan make R101 R72 double roll forming machines when get buyer confirmed order?

Technical data of  R101 R72 double roll forming machines

Suitable material

Q235 color steel sheet;0.3-0.7mm,

Forming speed

about 20-25m/min

Power Requirement

Main motor power: 7.5 Kw(Depend on final design)

Hydraulic station power: 2.2Kw(Depend on final design)

Material of forming rollers

No.45 steel, plated with chrome on surface.

Material of cutter

Cr12 mould steel with quench treatment, HRC58-60

Material of shaft

High quality 45# steel with heat treatment.

Roller grinder milling.

Shaft diameter


Controlling system

Mitsubishi PLC & converter

Total weight of machine

About 13000KGS

Machine’s size

about 11.5m×1.8m× 1.5m (Depend on final design)


1x40GP container can load one machine


Bearings inside forming rollers:

Bearings inside the forming rollers to allow machine run with less loading, so that machine rollers not easy to be damaged to prolong machine life. More important, machine can get more precise sheet because of bearing designing.

 zhongyuan roller


Processed shafts for forming rollers

1. Shaft material is No.45 steel with diameter 72mm, strong and durable.

2. Shafts are processed for three times from rough machining to grinder machining, to ensure the precision of final product.

 zhongyuan shafts

Zhongyuan Metal Roll Forming Machine’s advantages

1. Forming speed:  20-25m per minute or 30-35m per minute .

2. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .

3. . Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.

4. Cutter blade: Cr12 mould steel with quenched treatment, long life time.

5. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.

6.  People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.

7.  Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifetime services for our machines.
