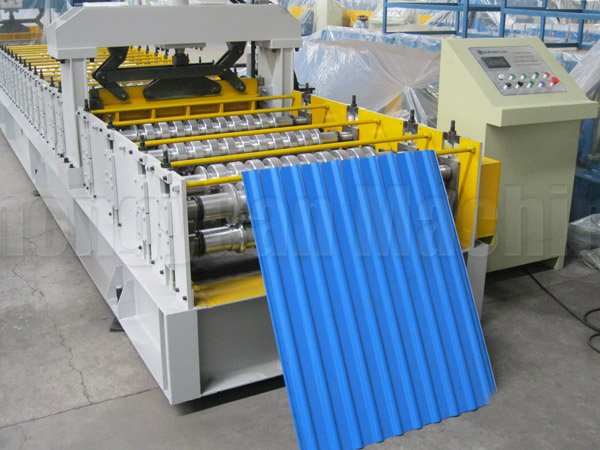

Australia Style Steel Door Components Roll Forming Machines

All roll forming machines are made from raw material to ready machines in our factory, we do all-in house style. So that control machines quality and delivery time for buyer. We aim to win-win cooperation for long time with our each customer.
  • Australia style roller shutter

  • Zhongyuan

  • 8455221000

Availability:

TECHNICAL SPECIFICATIONS

Brief introduction of Australia Style Roller Shutter:

Technical Parameters of  Australia Style Roller Shutter

Suitable material

Galvanized steel strip

Thickness of raw material

0.4-0.8mm (235-345Mpa)

Material of roller45# steel being quenched treatment
Material of cutter blade& punching dieCr12 mould steel with quenched treatment, HRC58-60

Power Requirement

Main motor power: 7.5Kw(Depend on final design)

Hydraulic station power: 2.2Kw(Depend on final design)

Material of shaft

High quality 45# steel, with heat treatment.

Roller grinder milling.

Forming speedAbout 20m/min
Diameter of shaft for rollers72mm

Controlling system

Mitsubishi PLC & converter

Quantity of rollersAbout 22 stations for main rollers

Total weight of machine

About 7500KGS

Machine's size

About 12m×1.7m× 1.5m


DESCRIPTION

We are committed to producing high quality machinery:


Forming system showing:

forming system

High Accuracy

1、Shaft material is No.45 steel with diameter 72mm, strong and durable.Shafts for rollers are tooled by grinding machine 2 times. Ensure product accuracy.

2、Finished shafts from grinding machine,rollers on these shafts can ensure final sheet accuracy.

roll forming high accuracy


High Efficiency

Production speed: 20/min.

9600m per shift one day(8 hours) .


Automatic & Easy Operate

Machine long life: Roller material is high grade No.45 forged steel,plated with hard chrome,processed by digital-controlled procession.

Mitsubishi PLC with touch screen. Friendly man-machine interaction.The system is simple to learn and easy to operate.

Automatic Operation:once you set quantity and length of product,machine will produce product automatically.

Automatic-Easy-Operate


Control Quality Well

Zhongyuan factory is a "All-in-house source" from raw material to the final high-precision forming machine. All are done in our factory. Quality and delivery time can be controlled here.

Simple to install and easy to maintain.

You only need to connect some tubes and wires in your factory. Video and manual will show you how to do.

Our experienced technicians can supply overseas service.


APPLICATION

Product Application of Australia Style Roller Shutter


In order to satisfy various customer requirements, we design and manufacture Australia Style Roller Shutter in different specs, models and configurations.


Australia Style Roller Shutter Application Example

Australia-style-roller-shutter-door


PACKAGING

Packaging Details

1. One *40GP container for loading one set of machine with mechanical decoiler;

2. The whole Wiped Anti Rust Oil, PLC controller covered by foam film;

3.Spare parts and some small parts packed in plastic tooling box;

4.All Components Fixed by steel wire with Container. Suitable for long time sea shipping.

Delivery Time

Machine ready within 60 days after getting 30% deposit and confirming contract details from buyer and sellers.
